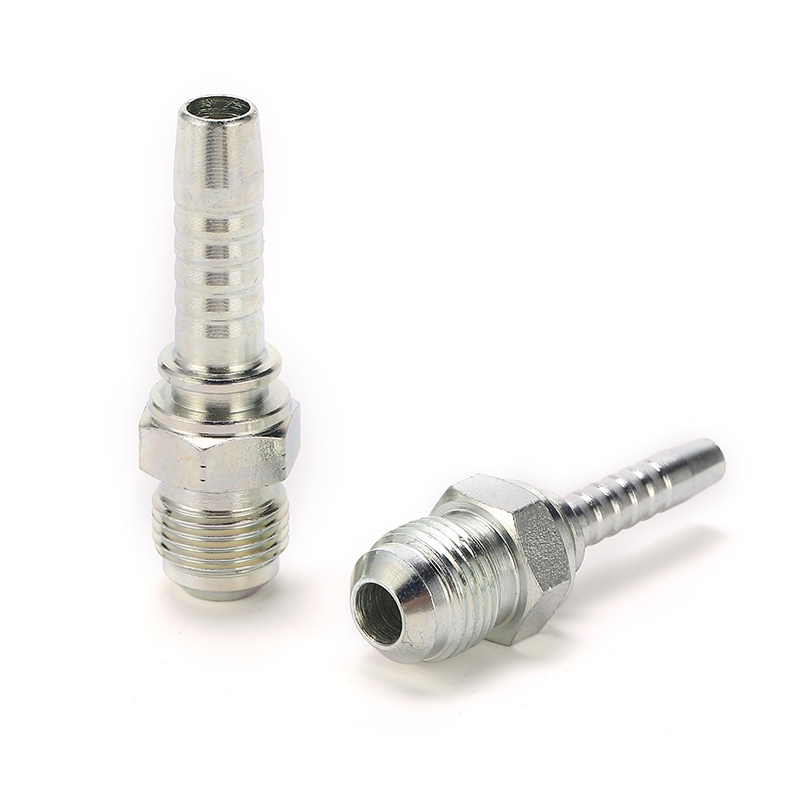

JIC Male 74° Cone

JIC Male 74° Cone

PEHEL Hydraulic Model: P16711-PKAST

QTY:

Factory Supply Hose Adapter Male Pipe Fittings Jic Hose Fittings Pipe Fittings

  • JIC Male 74° Cone Specification
  • You May Also Like

  • PART NO.  E (THREAD E)   HOSE BORE (DN)   HOSE BORE (DASH)   DIMENSIONS (A)   DIMENSIONS (B)   DIMENSIONS (S1)  Per hundred weight Weight per case
    16711-05-04PK 1/2"X20 6 4 45 25.4 14 4.6 200
    16711-06-06PK 9/16"X18 10 6 52 30 19 7.9 125
    16711-08-06PK 3/4"X16 10 6 54 32 22 9.4 100
    16711-08-08PK 3/4"X16 12 8 59.5 31 22 11.3 50
    16711-10-08PK 7/8"X14 12 8 63.5 35 24 13 50
    16711-10-10PK 7/8"X14 16 10 71.5 34.4 24 15.9 100
    16711-16-12PK 1.5/16"X12 20 12 80.5 40.9 35 60
    16711-16-16PK 1.5/16"X12 25 16 88 43 35 37.7 40
    16711-06-04PK 9/16"X18 6 4 48.5 28.9 19 6.1 150
    16711-06-08PK 9/16"X18 12 8 57 28.5 22 125
    16711-20-20PK 1.1/16"X12 20 12 78 38.4 27 41 25
    16711-24-24PK 1.5/8"X12 32 20 93.8 46.8 46 18
    16711-32-32PK 1.7/8"X12 40 24 93 54.6 50 10
    16711-12-12PK 2.1/2"X12 50 32 110 62.8 65 22.2 80
