U-Bolt tube clamp; carbon steel material

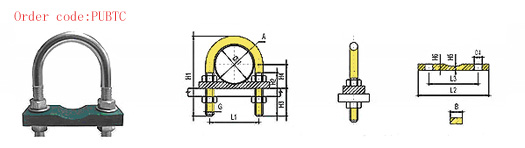

Clamp size Tube (mm) Round steel hoop R B Plastic pads R U L A L1 H1 H2 H3 H4 G L2 L3 B H5 H6 D2 20 25 30 40 73.5 46 30 17.5 M10 75 40 30 5 12 11 26.9 18.5 25 30 38 48 81 50 30 20 M10 80 48 30 5 12 11 33.7 22 32 38 46 56 89 50 30 24 M10 90 56 30 5 12 11 42.4 26.2 40 44.5 52 62 100 55 35 27.2 M10 95 62 35 5 15 11 48.3 29 50 57 64 76 118 63 39 33.5 M12 110 76 35 5 15 14 60.3 35.2 65 76.1 82 94 135 77 39 43 M12 135 94 35 5 20 14 80 88.9 94 106 152 82 39 54.5 M12 145 106 40 10 20 18 100 108 120 136 190 105 47 64 M16 190 136 40 10 20 18 114.3 67 125 133 148 164 217 105 47 76.5 M16 220 164 40 10 20 18 139.7 80 150 159 176 192 247 105 47 91.5 M16 250 192 50 12 25 18 168.3 96 175 193.7 202 218 273 105 47 109 M16 270 218 50 12 25 18 200 216 228 248 311 125 55 120 M20 315 248 50 12 25 22 219.1 121.5 250 267 282 302 364 125 55 141.5 M20 370 302 50 12 25 22 273 144.5 300 318 332 352 418 125 55 174 M20 420 352 60 15 30 22 323.9 177 350 355.6 378 402 475 145 63 193 M24 480 402 60 15 30 26 368 199 400 406.4 428 452 526 145 63 218 M24 540 452 60 15 30 26 419 224.5 500 508 530 554 627 145 63 269 M24 640 554 60 15 30 26 521 276
U-Bolt Tube Clamp DIN3015
PEHEL Hydraulic Model: U-Bolt Tube Clamp PUBTC
QTY:
- U-Bolt tube clamp; carbon steel material, specially used in U shape working condition
