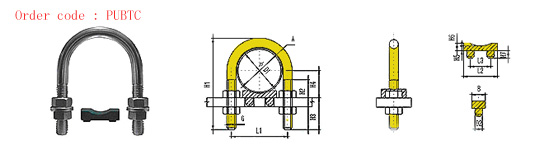

U-Bolt tube clamp; carbon steel material
Clamp size Tube (mm) Round steel hoop R B Plastic pads R U K A L1 H1 H2 H3 H4 G L2 L3 B H5 H6 H7 D2 20 25 30 40 73.5 46 30 17.5 M10 24 25 35 55 8 5 8 26.9 18.5 25 30 38 48 81 50 30 20 M10 24 25 35 55 8 5 8 33.7 22 32 38 46 56 89 50 30 24 M10 24 25 35 55 8 5 8 42.4 26.2 40 44.5 52 62 100 55 35 27.2 M10 24 25 35 55 8 5 8 48.3 29 50 57 64 76 118 63 39 33.5 M12 38 25 50 55 10 6 10 60.3 35.2 65 76.1 82 94 135 77 39 43 M12 38 25 50 55 10 6 10 80 88.9 94 106 152 82 41 52.5 M12 75 40 70 8 17 10 15 100 108 120 136 190 105 49 62 M16 75 40 70 8 17 10 15 114.3 65 125 133 148 164 217 105 49 74.5 M16 75 40 70 8 17 10 15 139.7 78 150 159 176 192 247 105 51 87.5 M16 140 90 75 8 26 10 25 168.3 92 175 193.7 202 218 273 105 51 105 M16 140 90 75 8 26 25 200 216 228 248 311 125 59 116 M20 140 90 75 8 26 10 25 219.1 117.5 250 267 282 302 364 125 59 141.5 M20 140 90 75 8 26 10 25 273 144.5 300 318 332 352 418 125 62 167 M20 220 150 75 8 32 10 30 323.9 170 350 355.6 378 402 475 145 70 186 M24 220 150 75 8 32 10 30 368 192 400 406.4 428 452 526 145 70 211 M24 220 150 75 8 32 10 30 419 217.5 500 508 530 554 627 145 70 262 M24 220 150 75 8 32 10 30 521 269
U-Bolt Tube Clamp DIN3015
PEHEL Hydraulic Model: U-Bolt Tube Clamp PUBTC
QTY:
- U-Bolt tube clamp; carbon steel material, specially used in U shape working condition
