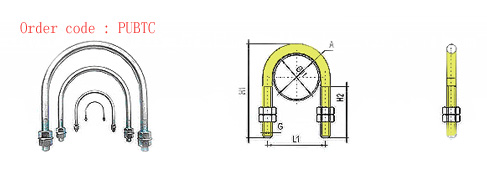

U-Bolt tube clamp; carbon steel material
Clamp size
D1Tube
Plastic pads R B D mm A L H1 H2 G 20 25
30 40 70 40 M10 26.9 25 30 38 48 76 40 M10 33.7 32 38 46 56 86 50 M10 42.4 40 44.5 52 62 92 50 M12 48.3 50 57 64 76 109 50 M12 60.3 65 76.1 82 94 125 50 M12 80 88.9 94 106 138 50 M12 100 108 120 136 171 60 M16 114.3 125 133 148 164 191 60 M16 139.7 150 159 176 192 271 60 M16 168.3 175 193.7 202 218 249 60 M16 200 216 228 248 283 70 M20 219.1 250 267 282 302 334 70 M20 273 300 318 332 352 385 70 M20 323.9 350 355.6 378 402 435 70 M24 368 400 406.4 428 452 487 70 M24 419 500 508 530 554 589 70 M24 521
U-Bolt Tube Clamp DIN3015
PEHEL Hydraulic Model: U-Bolt Tube Clamp PUBTC
QTY:
- U-Bolt tube clamp; carbon steel material, specially used in U shape working condition
