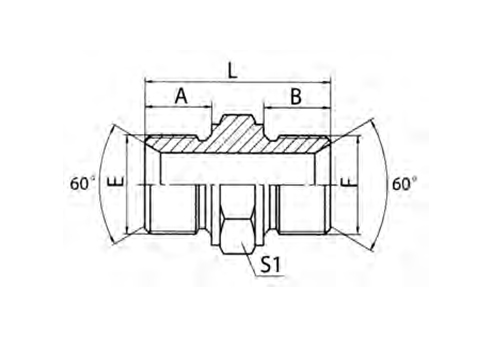

PART NO. THREAD DIMENSIONS E F A B L S1 1M-10 M10X1 M10X1 8 8 24 14 1M-10-12 M10X1 M12X1.5 8 10 26 17 1M-12 M12X1.5 M12X1.5 10 10 28 17 1M-12-14 M12X1.5 M14X1.5 10 11 29 19 1M-14 M14X1.5 M14X1.5 11 11 30 19 1M-14-16 M14X1.5 M16X1.5 11 12 31 22 1M-16 M16X1.5 M16X1.5 12 12 32 22 1M-16-18 M16X1.5 M18X1.5 12 12 34 24 1M-18 M18X1.5 M18X1.5 12 12 34 24 1M-18-22 M18X1.5 M22X1.5 12 14 38 27 1M-20-22 M20X1.5 M22X1.5 14 14 38 27 1M-22 M22X1.5 M22X1.5 14 14 38 27 1M-22-26 M22X1.5 M26X1.5 14 16 43 32 1M-22-27 M22X1.5 M27X2 14 16 43 32 1M-22-27D M22X1.5 M27X1.5 14 16 43 32 1M-26 M26X1.5 M26X1.5 16 16 45 32 1M-26-30 M26X1.5 M30X2 16 18 47 36 1M-26-30D M26X1.5 M30X1.5 16 18 47 36 1M-27 M27X2 M27X2 16 16 45 32 1M-27D M27X1.5 M27X1.5 16 16 45 32 1M-30 M30X2 M30X2 18 18 49 36 1M-30D M30X1.5 M30X1.5 18 18 49 36
Metric Male Double Use for 60° Cone Seat or Bonded Seal
PEHEL Hydraulic Model: P1M
QTY:
