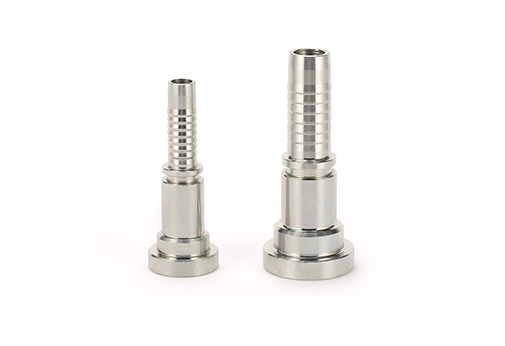

SAE Flange 6000PSI

SAE Flange 6000PSI

PEHEL Hydraulic Model: P87612

QTY:


  • SAE Flange 6000PSI Specification
  • Features
  • You May Also Like
  • PART NO. FLANGE SIZE HOSE BORE DIMENSIONS
    DN DASH A C D L
    87612-08-08 1/2" 12 08 47 31.8 23.9 7.9
    87612-12-10 3/4" 16 10 51 41.3 31.7 8.9
    87612-12-12 3/4" 20 12 51.3 41.3 31.7 8.9
    87612-16-12 1" 20 12 56.3 47.6 38 9.6
    87612-16-16 1" 25 16 57 47.6 38 9.6
    87612-16-20 1" 32 20 61 47.6 38 9.6
    87612-20-16 1.1/4" 25 16 65 54 43.6 10.4
    87612-20-20 1.1/4" 32 20 66 54 43.6 10.4
    87612-24-20 1.1/2" 32 20 75 63.5 50.8 12.7
    87612-24-24 1.1/2" 40 24 75 63.5 50.8 12.7
    87612-32-24 2" 40 24 85 79.4 66.5 12.7
    87612-32-32 2" 50 32 85 79.4 66.5 12.7
    NOTE:1.For use with braided hoses.                   2.If use with spiral hoses,hose fitting series number is 87611-XX-XX。
