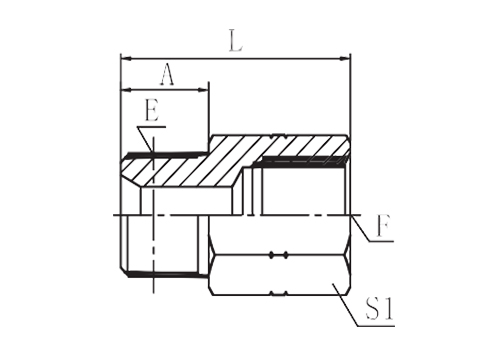

THREAD DIMENSIONS PART NO. E F A L S1 5N-02 Z1/8"X27 Z1/8"X27 10.5 25.5 17 5N-02-04 Z1/8"X27 Z1/4"X18 10.5 31 19 5N-02-06 Z1/8"X27 Z3/8"X18 11 31 24 5N-04-02 Z1/4"X18 Z1/8"X27 15 22 17 5N-04 Z1/4"X18 Z1/4"X18 15 35.3 19 5N-04-06 Z1/4"X18 Z3/8"X18 15 36.6 24 5N-04-08 Z1/4"X18 Z1/2"X14 15 43 30 5N-06-02 Z3/8"X18 Z1/8"X27 16 22 19 5N-06-04 Z3/8"X18 Z1/4"X18 16 22 19 5N-06 Z3/8"X18 Z3/8"X18 16 37.6 24 5N-06-08 Z3/8"X18 Z1/2"X14 16 43.7 30 5N-06-12 Z3/8"X18 Z3/4"X14 16 46 36 5N-08-04 Z1/2"X14 Z1/4"X18 19.5 28 22 5N-08-06 Z1/2"X14 Z3/8"X18 19.5 28.5 22 5N-08 Z1/2"X14 Z1/2"X14 19.5 47.5 30 5N-08-12 Z1/2"X14 Z3/4"X14 19.5 49 36 5N-12-06 Z3/4"X14 Z3/8"X18 19.5 30.5 27 5N-12-08 Z3/4"X14 Z1/2"X14 19.5 30.5 27 5N-12 Z3/4"X14 Z3/4"X14 19.5 49 36 5N-12-16 Z3/4"X14 Z1"X11.5 19.5 55.5 41 5N-16-08 Z1"X11.5 Z1/2"X14 25.5 35.5 36 5N-16-12 Z1"X11.5 Z3/4"X14 25.5 36.5 36 5N-16 Z1"X11.5 Z1"X11.5 25.5 60.7 41 5N-16-20 Z1"X11.5 Z1.1/4"X11.5 25.5 63.5 50 5N-20-12 Z1.1/4"X11.5 Z3/4"X14 26.5 38.5 46 5N-20-16 Z1.1/4"X11.5 Z1"X11.5 26.5 41 46 5N-20 Z1.1/4"X11.5 Z1.1/4"X11.5 26.5 61.5 50 5N-20-24 Z1.1/4"X11.5 Z1.1/2"X11.5 26.5 62.5 60 5N-24-16 Z1.1/2"X11.5 Z1"X11.5 27.5 41.5 50 5N-24-20 Z1.1/2"X11.5 Z1.1/4"X11.5 27.5 41 50 5N-24 Z1.1/2"X11.5 Z1.1/2"X11.5 27.5 62.5 60 5N-24-32 Z1.1/2"X11.5 Z2"X11.5 27.5 66.5 70 5N-32-20 Z2"X11.5 Z1.1/4"X11.5 27.5 44.5 65 5N-32-24 Z2"X11.5 Z1.1/2"X11.5 27.5 45 65 5N-32 Z2"X11.5 Z2"X11.5 27.5 62.5 70

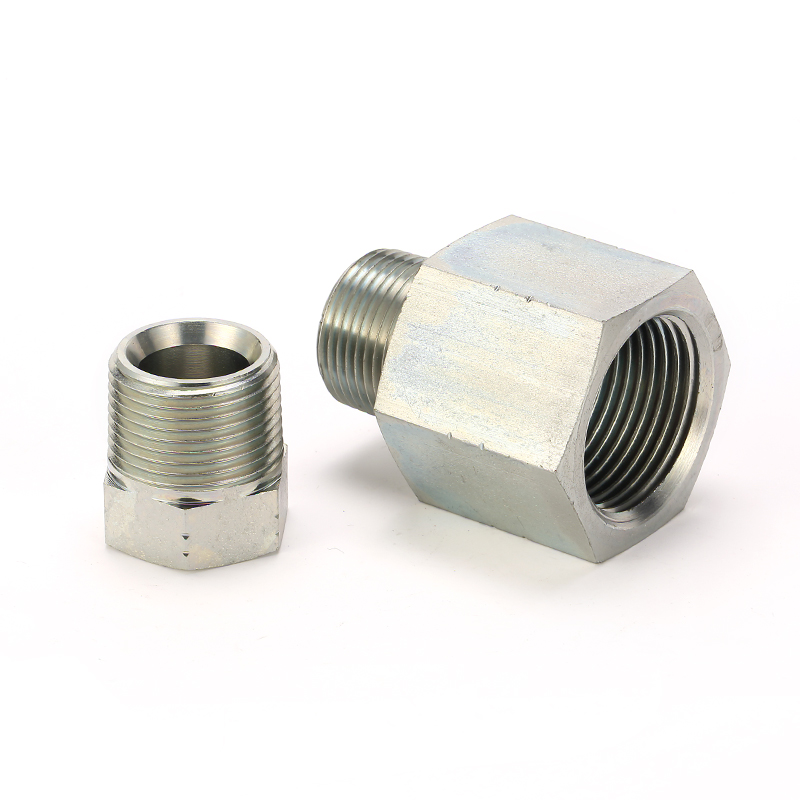

NPT MALE / NPT FEMALE
PEHEL Hydraulic Model: P5N
