PART NO. THREAD DIMENSIONS E F A B S1 S2 7NB4-02S Z1/8"X27 G1/8"X28 17 5.5 16 14 7NB4-04S Z1/4"X18 G1/4"X19 20 5.5 19 19 7NB4-06S Z3/8"X18 G3/8"X19 19 6.3 24 22 7NB4-08S Z1/2"X14 G1/2"X14 28 7.5 30 27 7NB4-12S Z3/4"X14 G3/4"X14 30 10.9 33 32 7NB4-16S Z1"X11.5 G1"X11 37.5 11.7 41 41 7NB4-20S Z1.1/4"X11.5 G1.1/4"X11 38.5 11 48 50 7NB4-24S Z1.1/2"X11.5 G1.1/2"X11 41 13 63 55

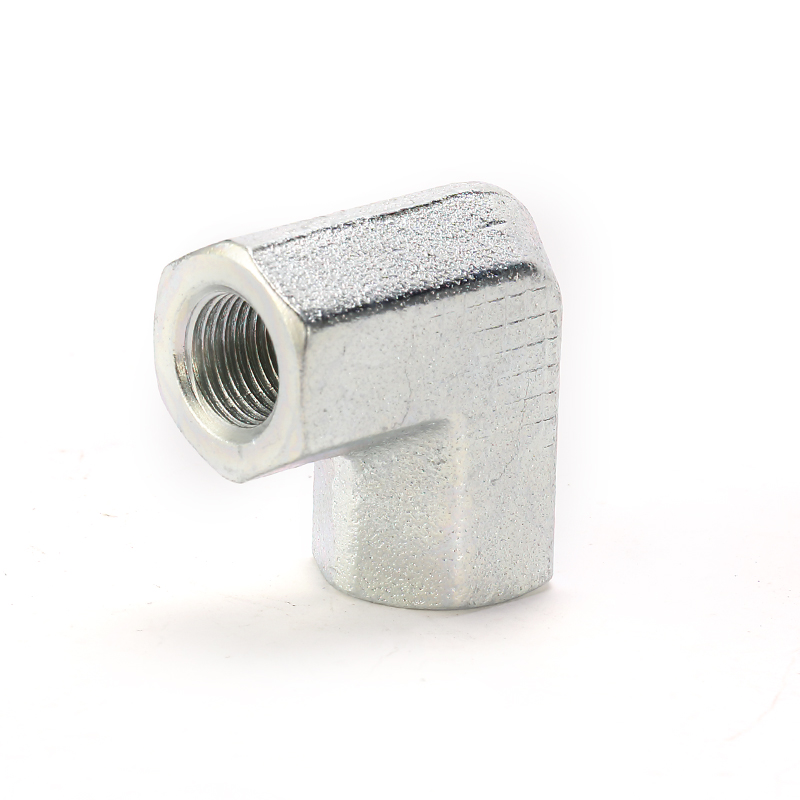

45 NPT FEMALE/BSP FEMALE 60 CONE

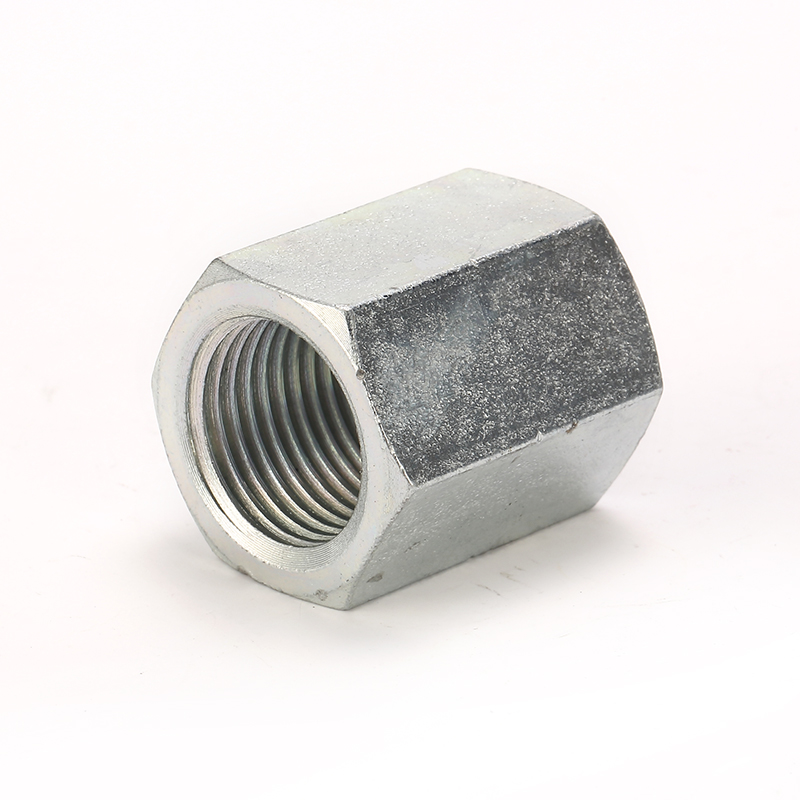

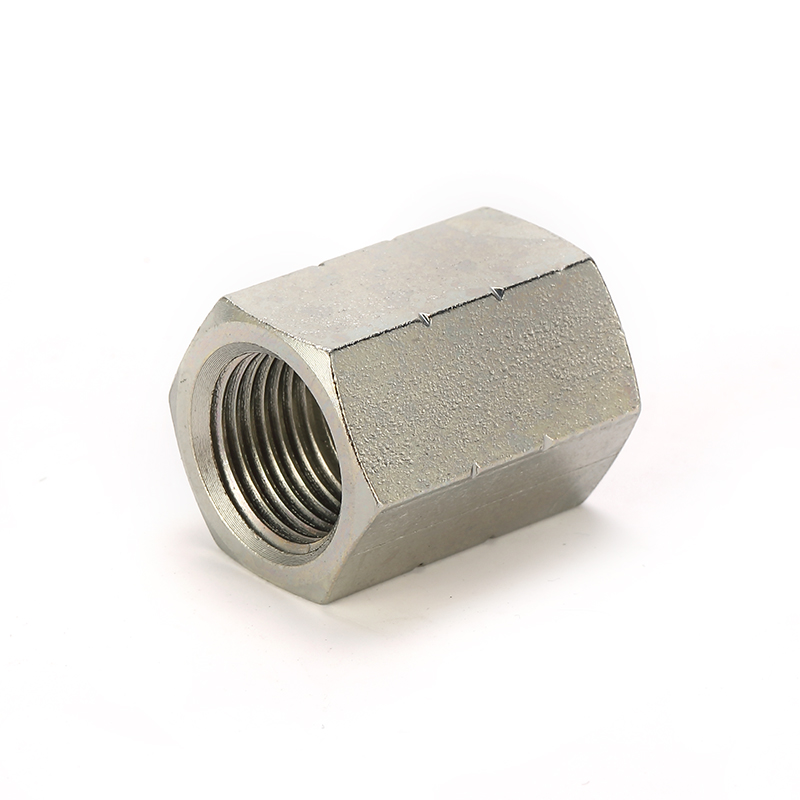

PEHEL Hydraulic Model: 7NB4-S
