PART NO. THREAD DIMENSIONS E F A B S1 S2 2NU9-02 Z1/8''X27 1/8''X27 21 3.5 11 15 2NU9-02-04 Z1/8''X27 1/4''X18 21 4.6 11 19 2NU9-04-02 Z1/4''X18 1/8''X27 25.5 3.5 14 15 2NU9-04 Z1/4''X18 1/4''X18 25.5 4.6 14 19 2NU9-04-06 Z1/4''X18 3/8''X18 25.5 6 14 22 2NU9-06 Z3/8''X18 3/8''X18 31 6 19 22 2NU9-06-04 Z3/8''X18 1/4''X18 31 4.6 19 19 2NU9-06-08 Z3/8''X18 1/2''X14 31 7.5 19 27 2NU9-08 Z1/2''X14 1/2''X14 37.3 7.5 22 27 2NU9-08-06 Z1/2''X14 3/8''X18 36.7 6 22 22 2NU9-08-12 Z1/2''X14 3/4''X14 37.6 8.9 24 32 2NU9-12 Z3/4''X14 3/4''X14 44 8.9 27 32 2NU9-12-08 Z3/4''X14 1/2''X14 44 7.5 27 27 2NU9-12-16 Z3/4''X14 1''X11.5 45 10.5 30 41 2NU9-16 Z1''X11.5 1''X11.5 50 10.5 33 41 2NU9-16-12 Z1''X11.5 3/4''X14 50 8.9 33 32 2NU9-20-16 Z1.1/4''X11.5 1''X11.5 54.5 10.5 41 41 2NU9-20 Z1.1/4''X11.5 1.1/4''X11.5 54.5 11.2 41 50 2NU9-24 Z1.1/2''X11.5 1.1/2''X11.5 59.5 11.2 48 55 2NU9-32 Z2''X11.5 2''X11.5 7.35 11.2 63 70 2NU9 hydraulic adapter 90 degree elbow is made with one end male NPT and the other end female NPSM thread, it is widely used at hydraulic equipment which is made in China.
It is used to connect hydraulic oil line systems in a variety of equipment such as construction machinery, engineering machinery, and so on.
TAG: Hydraulic Fittings, Hydrauilic Hose Fitigs, Hose and Fitings , Hydraulic Adapters Fittings, Hydraulic Quick Couplings, QuickCoupling,
90 ELBOW NPT MALE/NPSM FEMALE60 CONE
PEHEL Hydraulic Model: 2NU9
QTY:

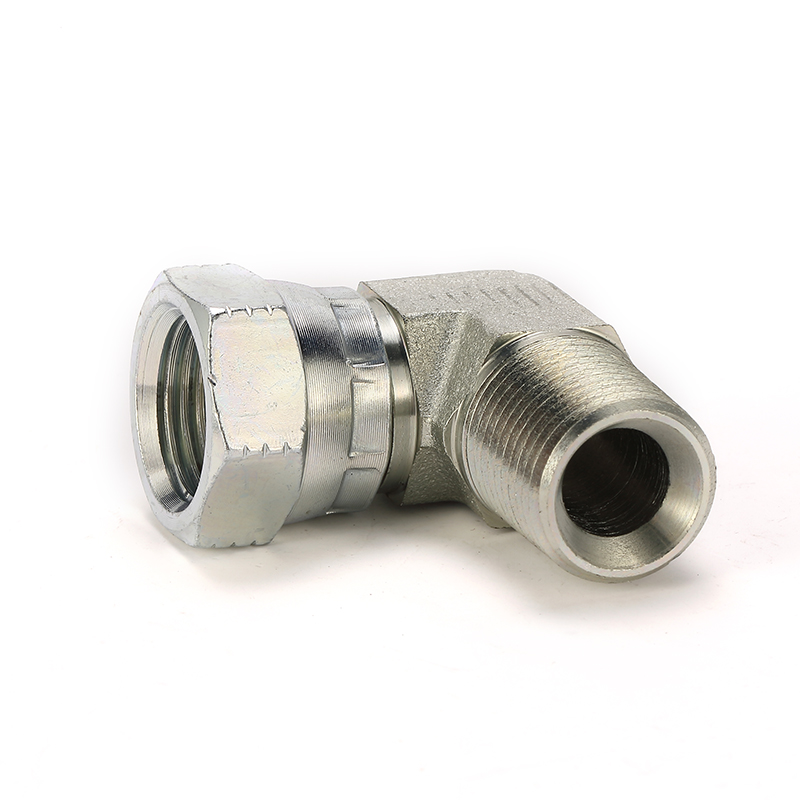

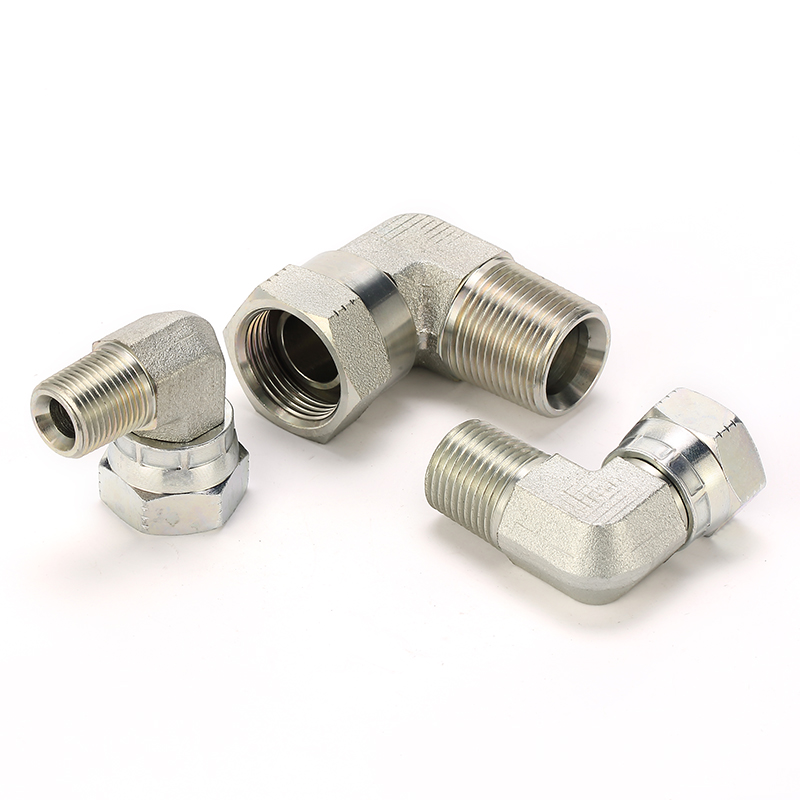

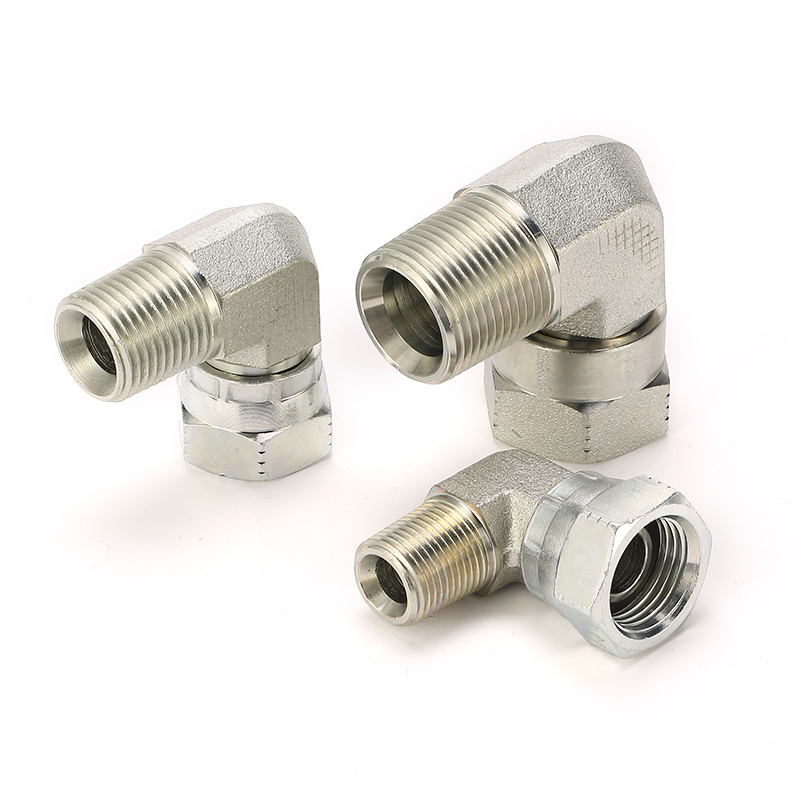

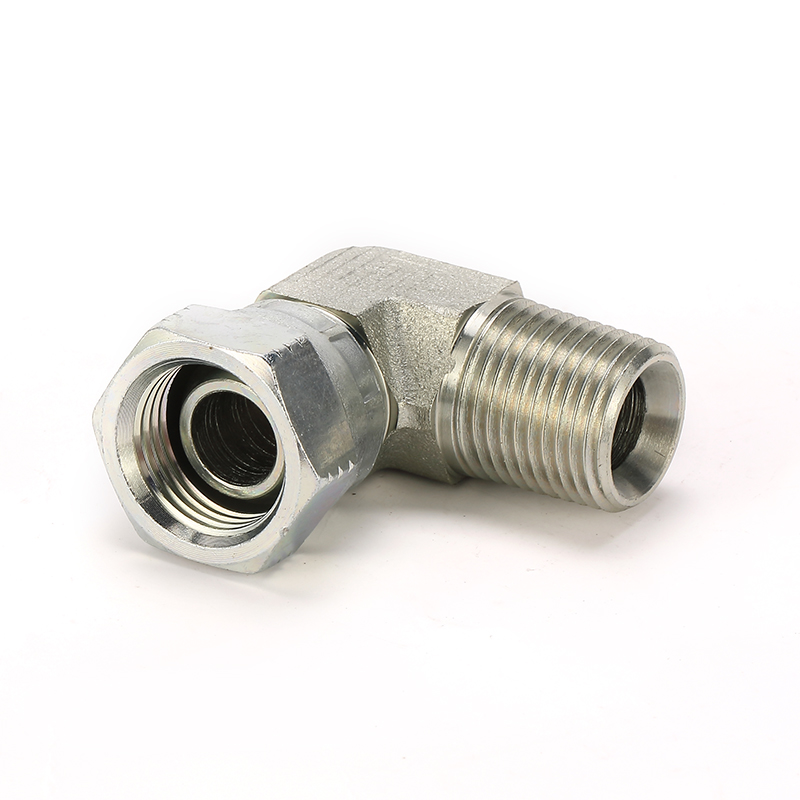

2NU9 NPSM swivel / thread hydraulic swivel elbow fitting
- 90 Degree Elbow NPSM Female 60 Degree Cone 2NU9, NPSM Fitting, Hydraulic Pipe Fitting, Adapter, Hex Nipple, Swivel
