PART NO.
THREAD
O-RING
DIMENSIONS
E、F、G
E、F
A
B
C
S1
S2
CE-14
M14X1.5
10X2
22.5
22.5
8.5
14
19
CE-16
M16X1.5
11X1.9
24
24
8.5
17
22
CE-18
M18X1.5
13X2
26
26
8.5
19
24
CE-22
M22X1.5
16.1X2.4
29.5
29.5
10
22
27
CE-27
M27X1.5
20.1X2.4
32.5
32.5
10
27
32
CE-30
M30X1.5
24.1X2.4
35.5
35.5
11
30
36
CE-36
M36X2
30X3.1
42
42
13
36
41
CE-39
M39X2
32X3.1
47.5
47.5
13
41
46
CE-42
M42X2
35X3.1
49.5
49.5
15
41
50
CE-45
M45X2
38X3.1
52.5
52.5
15
46
55
CE-52
M52X2
40X3.1
57
57
17
50
60

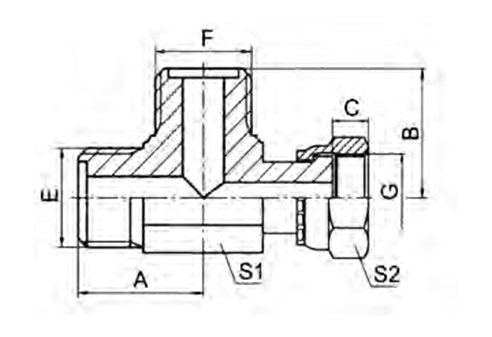

Metric O-ring Tee
PEHEL Hydraulic Model: PCE
