PART NO.
THREAD
O-RING
DIMENSIONS
E、F
G
E、F
G
A
B
C
S1
S2
AEEH-12-12-10OG
M12X1.25
M10X1
8X1.9
O08.1X1.6
20.5
20.5
28.5
12
14
AEEH-14-14-12OG
M14X1.5
M12X1.5
10X2
O09.3X2.4
22.5
22.5
33.2
14
17
AEEH-16-16-14OG
M16X1.5
M14X1.5
11X1.9
O11.3X2.4
24
24
36
17
19
AEEH-18-18-16OG
M18X1.5
M16X1.5
13X2
O13.3X2.4
26
26
39
19
22
AEEH-22-22-18OG
M22X1.5
M18X1.5
16.1X2.4
O15.3X2.4
29
29
44
22
24
AEEH-27-27-22OG
M27X1.5
M22X1.5
20.1X2.4
O19.3X2.4
32.5
32.5
48
27
27
AEEH-30-30-27OG
M30X1.5
M27X2
24.1X2.4
O23.5X3.0
35.5
35.5
57
30
32
AEEH-36-36-33OG
M36X2
M33X2
30X3.1
O29.5X3.0
42
42
60.5
36
41
AEEH-39-39-33OG
M39X2
M33X2
32X3.1
O29.5X3.0
47.5
47.5
64
41
41
AEEH-42-42-42OG
M42X2
M42X2
35X3.1
O38.5X3.0
49.5
49.5
65
41
50
AEEH-45-45-42OG
M45X2
M42X2
38X3.1
O38.5X3.0
52.5
52.5
67.5
46
50

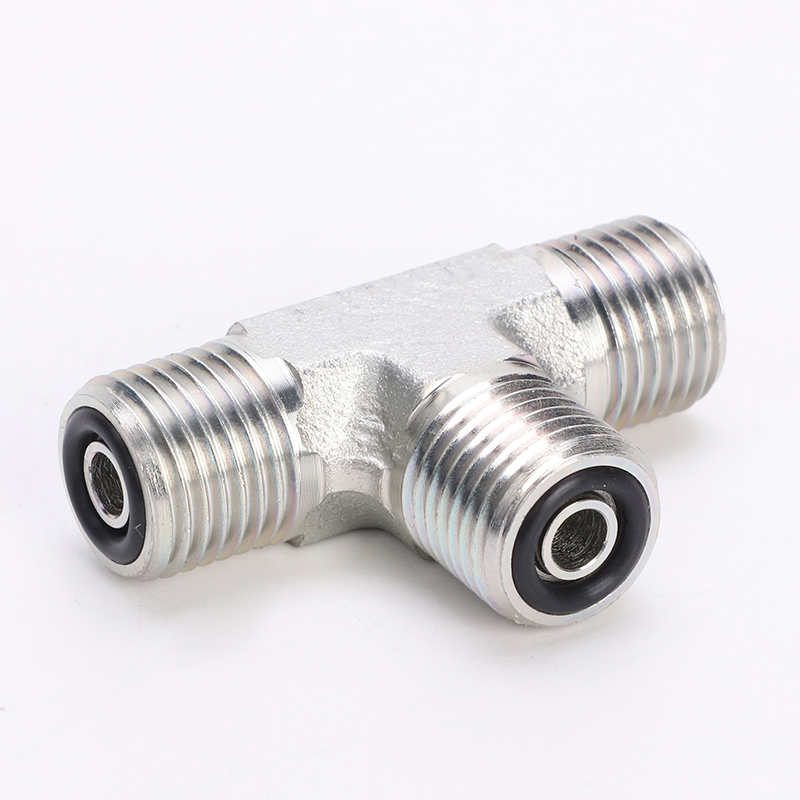

Metric Male O-ring
PEHEL Hydraulic Model: PAEEH-OG
QTY:
