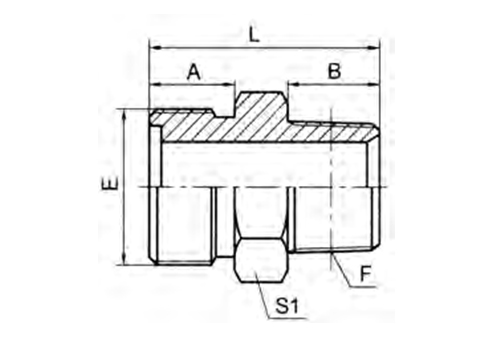

PART NO.
THREAD
O-RING
DIMENSIONS
E
F
E
A
B
L
S1
1ET-14-04SP
M14X1.5
R1/4"X19
10X2
11
14.5
31.5
14
1ET-14-06SP
M14X1.5
R3/8"X19
10X2
11
15
32
17
1ET-16-04SP
M16X1.5
R1/4"X19
11X1.9
11
14.5
31.5
17
1ET-16-06SP
M16X1.5
R3/8"X19
11X1.9
11
15
32
17
1ET-18-06SP
M18X1.5
R3/8"X19
13X2
11
15
32
19
1ET-18-08SP
M18X1.5
R1/2"X14
13X2
11
20
37
22
1ET-22-08SP
M22X1.5
R1/2"X14
16.1X2.4
12
20
40
24
1ET-22-12SP
M22X1.5
R3/4"X14
16.1X2.4
12
20
40
27
1ET-24-06SP
M24X1.5
R3/8"X19
18.1X2.4
13
15
38
27
1ET-24-08SP
M24X1.5
R1/2"X14
18.1X2.4
13
20
43
27
1ET-27-08SP
M27X1.5
R1/2"X14
20.1X2.4
13
20
43
30
1ET-27-12SP
M27X1.5
R3/4"X14
20.1X2.4
13
20
43
30
1ET-30-12SP
M30X1.5
R3/4"X14
24.1X2.4
14
20
45
32
1ET-36-12SP
M36X2
R3/4"X14
30X3.1
16
20
47
38
1ET-36-16SP
M36X2
R1"X11
30X3.1
16
25.5
52.5
38
1ET-39-16SP
M39X2
R1"X11
32X3.1
18
25.5
56.5
41
1ET-39-20SP
M39X2
R1.1/4”X11
32X3.1
18
26.5
57.5
46
1ET-42-20SP
M42X2
R1.1/4"X11
35X3.1
20
26.5
59.5
46
1ET-45-20SP
M45X2
R1.1/4”X11
38X3.1
21
26.5
60.5
46
1ET-52-24SP
M52X2
R1.1/2"X11
40X3.1
22
26.5
63.5
55
Metric Male O-ring / BSPT Male
PEHEL Hydraulic Model: P1ET-SP
QTY:
