PART NO. THREAD TUBE O.D. DIMENSIONS MPa E F G D1 D2 D3 l1 l2 l3 L1 L2 L3 S1 S2 S3 S4 AC-12-14-12 M12X1.5 M14X1.5 M12X1.5 6 8 6 14 14 14 29 29 29 14 14 17 14 31.5 L AC-14-12-14 M14X1.5 M12X1.5 M14X1.5 8 6 8 14 14 14 29 29 29 14 17 14 17 AC-12-16-12 M12X1.5 M16X1.5 M12X1.5 6 10 6 15 15 15 30 30 30 14 14 19 14 AC-14-16-14 M14X1.5 M16X1.5 M14X1.5 8 10 8 15 15 15 30 30 30 14 17 19 17 AC-16-12-16 M16X1.5 M12X1.5 M16X1.5 10 6 10 15 15 15 30 30 30 14 19 14 19 AC-16-14-16 M16X1.5 M14X1.5 M16X1.5 10 8 10 15 15 15 30 30 30 14 19 17 19 AC-16-16-12 M16X1.5 M16X1.5 M12X1.5 10 10 6 15 15 15 30 30 30 14 19 19 14 AC-14-18-14 M14X1.5 M18X1.5 M14X1.5 8 12 8 17 17 17 32 32 32 17 17 22 17 AC-18-12-18 M18X1.5 M12X1.5 M18X1.5 12 6 12 17 17 17 32 32 32 17 22 14 22 AC-18-14-14 M18X1.5 M14X1.5 M14X1.5 12 8 8 17 17 17 32 32 32 17 22 17 17 AC-18-14-18 M18X1.5 M14X1.5 M18X1.5 12 8 12 17 17 17 32 32 32 17 22 17 22 AC-18-16-16 M18X1.5 M16X1.5 M16X1.5 12 10 10 17 17 17 32 32 32 17 22 19 19 AC-18-16-18 M18X1.5 M16X1.5 M18X1.5 12 10 12 17 17 17 32 32 32 17 22 19 22 AC-18-18-16 M18X1.5 M18X1.5 M16X1.5 12 12 10 17 17 17 32 32 32 17 22 22 19 AC-16-22-16 M16X1.5 M22X1.5 M16X1.5 10 15 10 21 21 21 36 36 36 19 19 27 19 AC-18-22-18 M18X1.5 M22X1.5 M18X1.5 12 15 12 21 21 21 36 36 36 19 22 27 22 AC-22-12-22 M22X1.5 M12X1.5 M22X1.5 15 6 15 21 21 21 36 36 36 19 27 14 27 AC-22-16-22 M22X1.5 M16X1.5 M22X1.5 15 10 15 21 21 21 36 36 36 19 27 19 27 AC-22-18-18 M22X1.5 M18X1.5 M18X1.5 15 12 12 21 21 21 36 36 36 19 27 22 22 AC-22-18-22 M22X1.5 M18X1.5 M22X1.5 15 12 15 21 21 21 36 36 36 19 27 22 27 AC-22-22-18 M22X1.5 M22X1.5 M18X1.5 15 15 12 21 21 21 36 36 36 19 27 27 22 AC-18-26-18 M18X1.5 M26X1.5 M18X1.5 12 18 12 24 23.5 24 39 40 39 24 22 32 22 AC-26-16-16 M26X1.5 M16X1.5 M16X1.5 18 10 10 23.5 24 24 40 39 39 24 32 19 19 AC-26-16-26 M26X1.5 M16X1.5 M26X1.5 18 10 18 23.5 24 23.5 40 39 40 24 32 19 32 AC-26-18-26 M26X1.5 M18X1.5 M26X1.5 18 12 18 23.5 24 23.5 40 39 40 24 32 22 32 AC-26-22-26 M26X1.5 M22X1.5 M26X1.5 18 15 18 23.5 24 23.5 40 39 40 24 32 27 32 AC-26-26-16 M26X1.5 M26X1.5 M16X1.5 18 18 10 23.5 23.5 24 40 40 39 24 32 32 19 AC-30-16-30 M30X2 M16X1.5 M30X2 22 10 22 27.5 28 27.5 44 43 44 27 36 19 36 16 L AC-30-18-30 M30X2 M18X1.5 M30X2 22 12 22 27.5 28 27.5 44 43 44 27 36 22 36 AC-30-22-22 M30X2 M22X1.5 M22X1.5 22 15 15 27.5 28 28 44 43 43 27 36 27 27 AC-30-22-30 M30X2 M22X1.5 M30X2 22 15 22 27.5 28 27.5 44 43 44 27 36 27 36 AC-30-26-26 M30X2 M26X1.5 M26X1.5 22 18 18 27.5 27.5 27.5 44 44 44 27 36 32 32 AC-30-26-30 M30X2 M26X1.5 M30X2 22 18 22 27.5 27.5 27.5 44 44 44 27 36 32 36 AC-30-30-26 M30X2 M30X2 M26X1.5 22 22 18 27.5 27.5 27.5 44 44 44 27 36 36 32 AC-36-16-36 M36X2 M16X1.5 M36X2 28 10 28 30.5 31 30.5 47 46 47 36 41 19 41 AC-36-18-36 M36X2 M18X1.5 M36X2 28 12 28 30.5 31 30.5 47 46 47 36 41 22 41 AC-36-22-36 M36X2 M22X1.5 M36X2 28 15 28 30.5 31 30.5 47 46 47 36 41 27 41 AC-36-26-36 M36X2 M26X1.5 M36X2 28 18 28 30.5 30.5 30.5 47 47 47 36 41 32 41 AC-36-30-30 M36X2 M30X2 M30X2 28 22 22 30.5 30.5 30.5 47 47 47 36 41 36 36 AC-36-30-36 M36X2 M30X2 M36X2 28 22 28 30.5 30.5 30.5 47 47 47 36 41 36 41 AD-18-14-18 M18X1.5 M14X1.5 M18X1.5 10 6 10 17.5 18 17.5 34 33 34 17 22 17 22 63 S AD-20-16-16 M20X1.5 M16X1.5 M16X1.5 12 8 8 21.5 22 22 38 37 37 17 24 19 19 AD-20-16-20 M20X1.5 M16X1.5 M20X1.5 12 8 12 21.5 22 21.5 38 37 38 17 24 19 24 AD-20-18-20 M20X1.5 M18X1.5 M20X1.5 12 10 12 21.5 21.5 21.5 38 38 38 17 24 22 24 AD-20-24-20 M20X1.5 M24X1.5 M20X1.5 12 16 12 25.5 24.5 25.5 42 43 42 24 24 30 24 40 S AD-24-14-24 M24X1.5 M14X1.5 M24X1.5 16 6 16 24.5 26 24.5 43 41 43 24 30 17 30 AD-24-16-24 M24X1.5 M16X1.5 M24X1.5 16 8 16 24.5 26 24.5 43 41 43 24 30 19 30 AD-24-18-24 M24X1.5 M18X1.5 M24X1.5 16 10 16 24.5 25.5 24.5 43 42 43 24 30 22 30 AD-24-20-24 M24X1.5 M20X1.5 M24X1.5 16 12 16 24.5 25.5 24.5 43 42 43 24 30 24 30 AD-24-30-24 M24X1.5 M30X2 M24X1.5 16 20 16 28.5 26.5 28.5 47 48 47 27 30 36 30 AD-30-18-30 M30X2 M18X1.5 M30X2 20 10 20 26.5 29.5 26.5 48 46 48 27 36 22 36 AD-30-20-30 M30X2 M20X1.5 M30X2 20 12 20 26.5 29.5 26.5 48 46 48 27 36 24 36 AD-30-24-30 M30X2 M24X1.5 M30X2 20 16 20 26.5 28.5 26.5 48 47 48 27 36 30 36 AD-30-36-30 M30X2 M36X2 M30X2 20 25 20 31.5 30 31.5 53 54 53 36 36 46 36 AD-36-24-36 M36X2 M24X1.5 M36X2 25 16 25 30 33.5 30 54 52 54 36 46 30 46 AD-36-30-36 M36X2 M30X2 M36X2 25 20 25 30 31.5 30 54 53 54 36 46 36 46 AD-36-42-36 M36X2 M42X2 M36X2 25 30 25 37 35.5 37 61 62 61 41 46 50 46 Note:In case if you are interested to order the adapter in complete set with cutting ringand nut ,it is necessary to insert suffix "RN" after our part no.,for example AC-30-30-26RN.

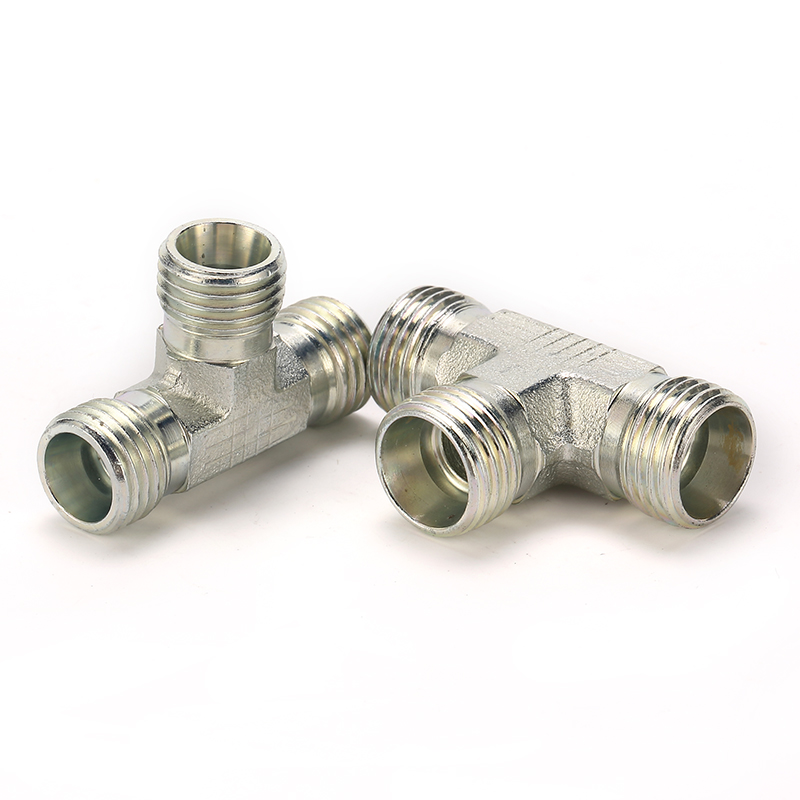

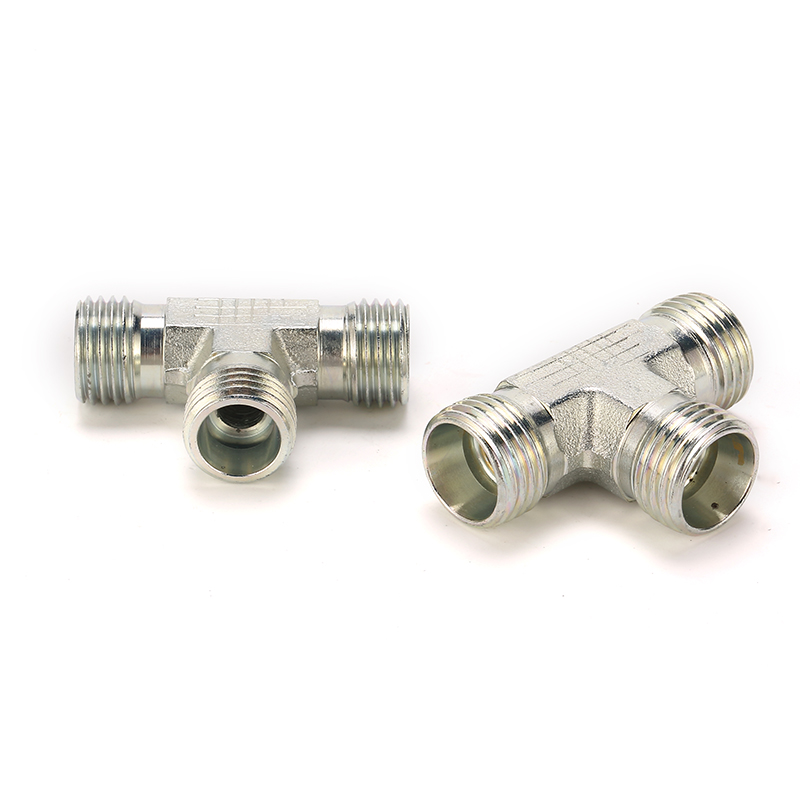

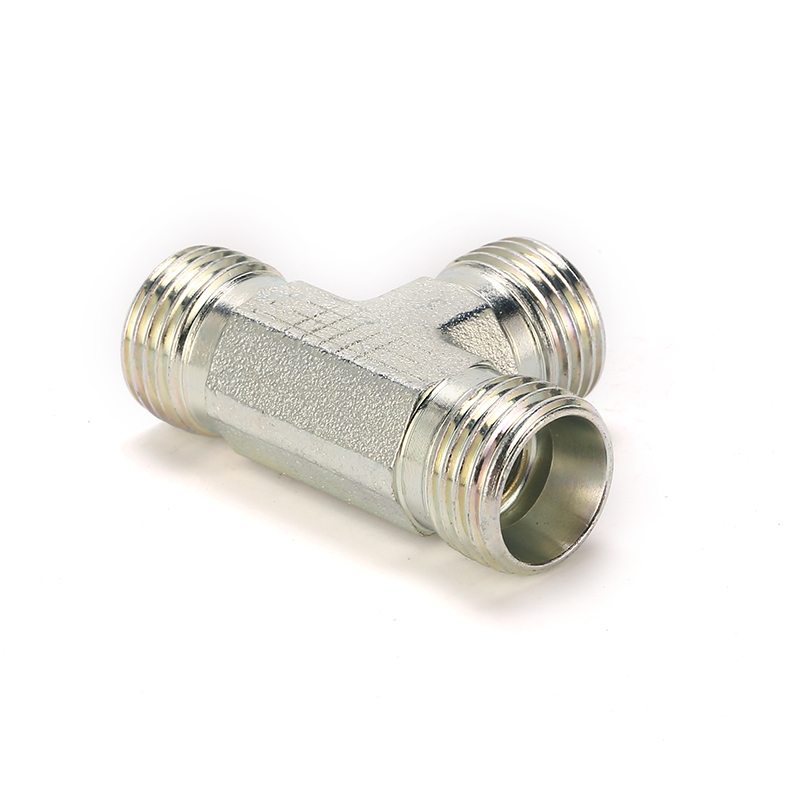

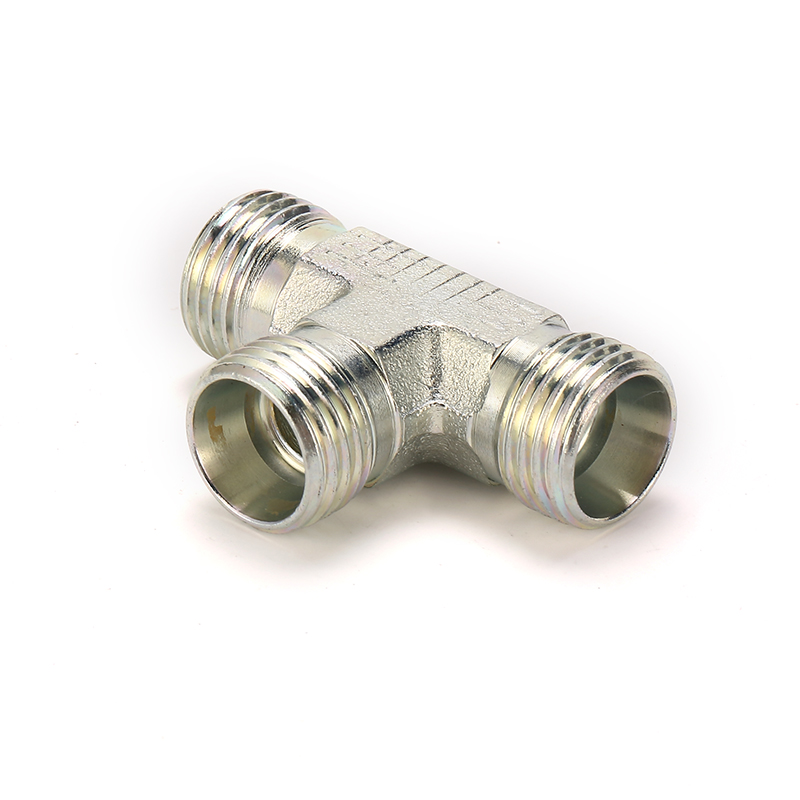

TEE Reducers
PEHEL Hydraulic Model: AC-AD
QTY:
