Straight Fittings-1c

Straight Fittings-1c

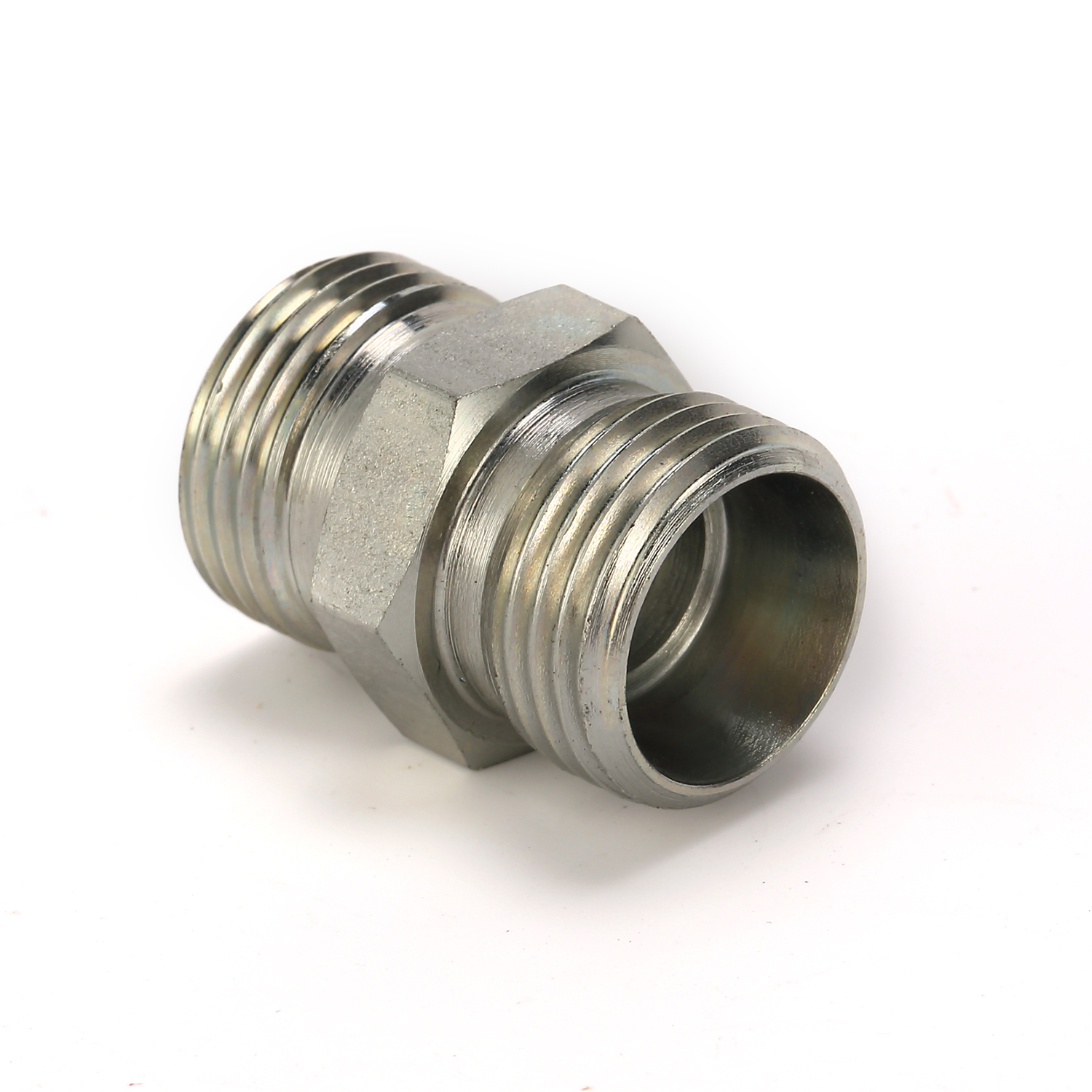

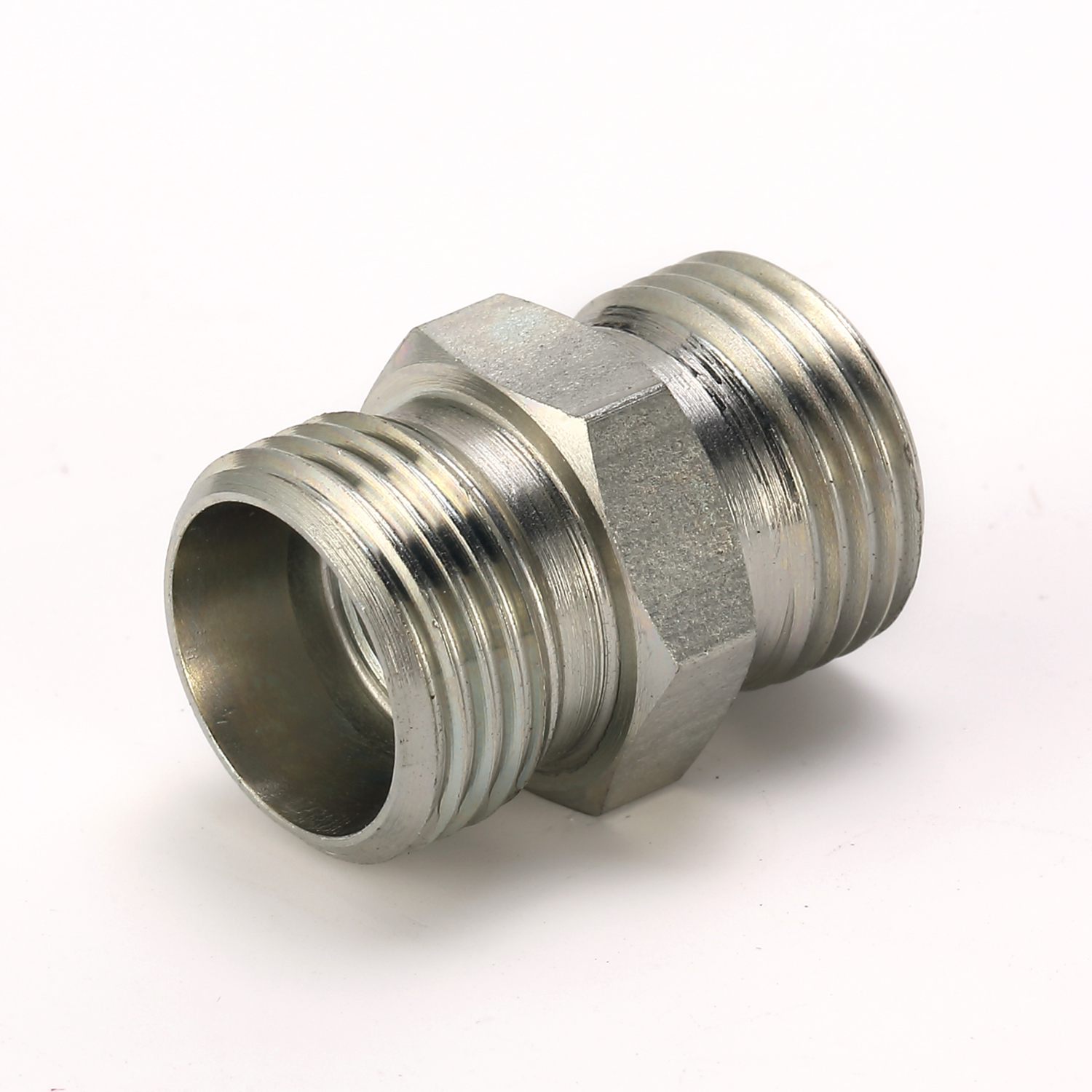

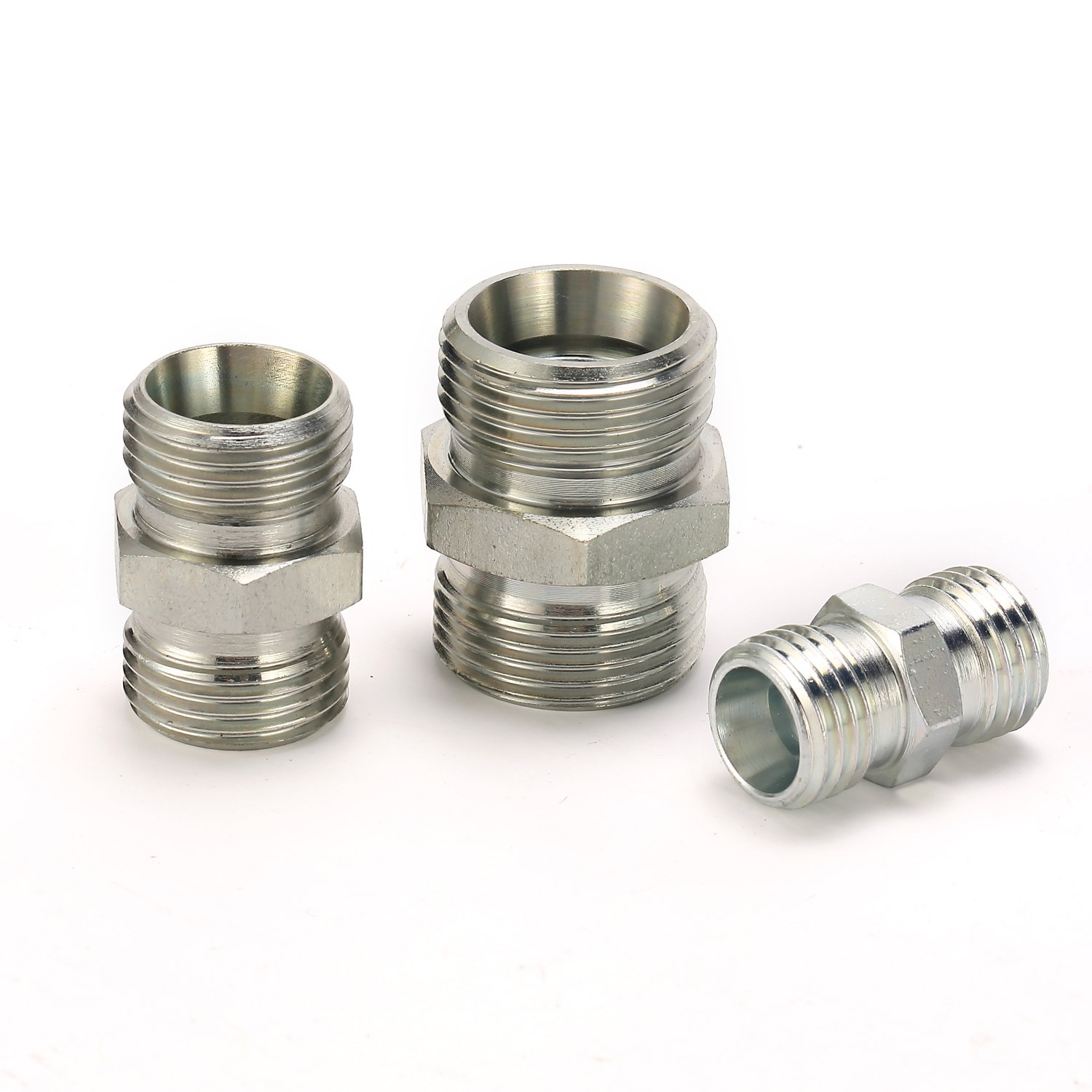

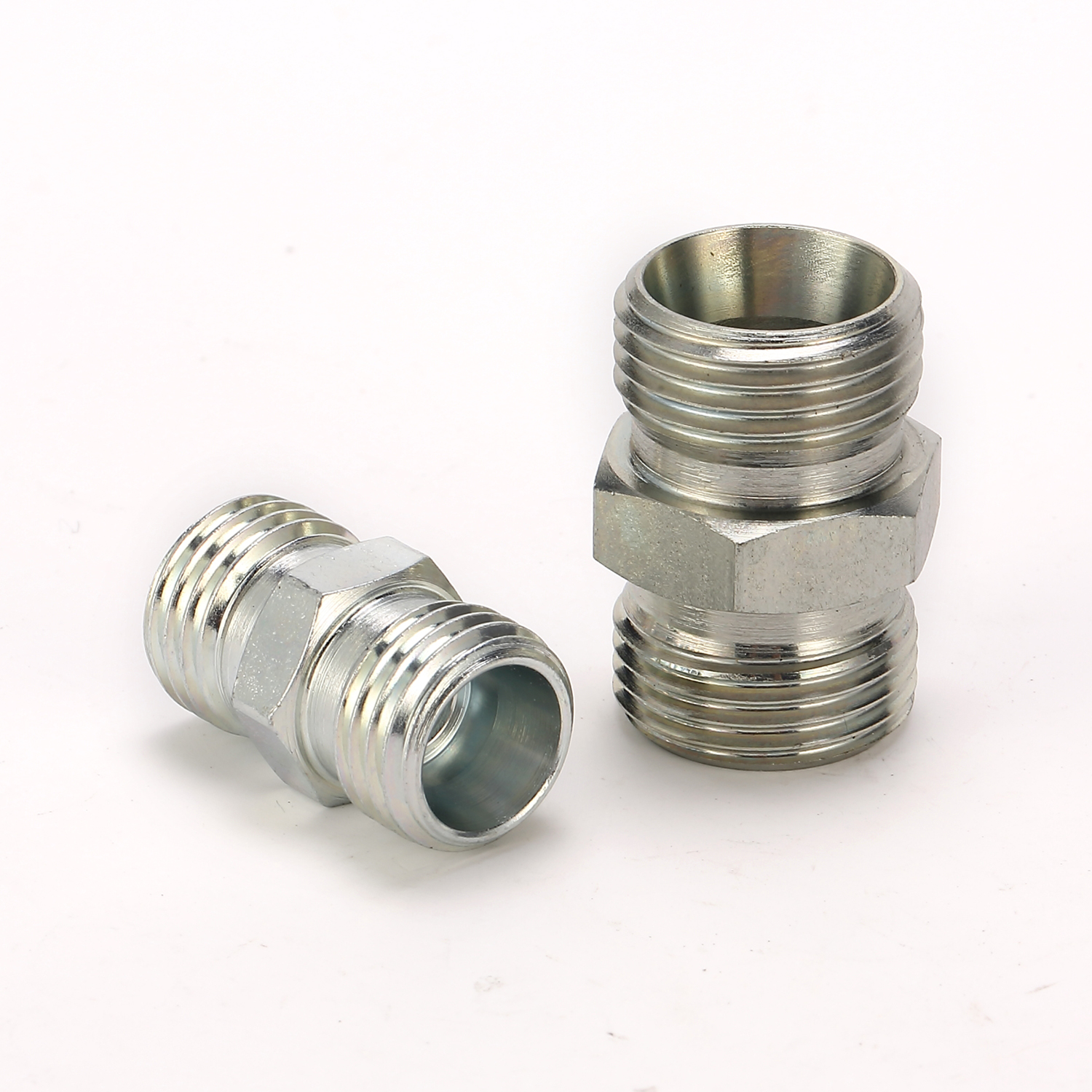

PEHEL Hydraulic Model: 1C

QTY:

  • Straight Fittings-1c Specification
  • You May Also Like

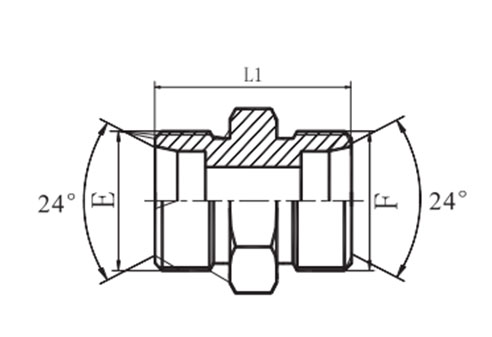

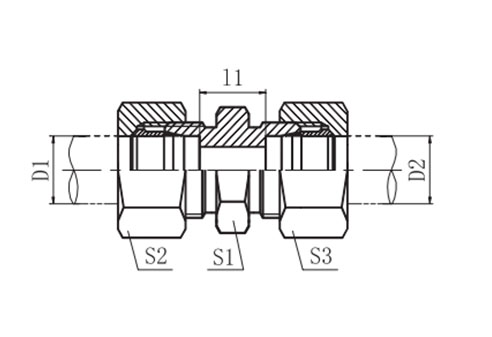

  • PART NO. THREAD TUBE O.D. DIMENSIONS MPa
    E F D1 D2 l1 L1 S1 S2 S3
    1C-12 M12X1.5 M12X1.5 6 6 10 39 12 14 14 31.5
    L
    1C-14 M14X1.5 M14X1.5 8 8 11 40 14 17 17
    1C-16 M16X1.5 M16X1.5 10 10 13 42 17 19 19
    1C-18 M18X1.5 M18X1.5 12 12 14 43 19 22 22
    1C-22 M22X1.5 M22X1.5 15 15 16 46 24 27 27
    1C-26 M26X1.5 M26X1.5 18 18 16 48 27 32 32
    1C-30 M30X2 M30X2 22 22 20 52 32 36 36 16
    L
    1C-36 M36X2 M36X2 28 28 21 54 41 41 41
    1C-45 M45X2 M45X2 35 35 20 63 46 50 50
    1C-52 M52X2 M52X2 42 42 21 66 55 60 60
    Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix"RN"after our part NO.,for example 1C-30RN
