THREAD TUBE O.D. DIMENSIONS PART NO. MPa E,G F D1,D2 I 1,I2 L1,L2 L3 S1 S2,S4 S3 ACOC-12-04-12OG M12X1.5 7/16"X20 6 13 28 27.5 11 14 17 31.5 L ACOC-14-06-14OG M14X1.5 9/16"X18 8 15.5 30.5 31.8 14 17 19 ACOC-16-06-16OG M16X1.5 9/16"X18 10 17.5 32.5 33.3 16 19 19 ACOC-18-08-18OG M18X1.5 3/4"X16 12 19 34 37.5 19 22 24 ACOC-22-10-22OG M22X1.5 7/8"X14 15 22 37 44 22 27 27 ACOC-26-12-26OG M26X1.5 1.1/16"X12 18 25.5 42 52.5 27 32 32 ACOC-30-12-30OG M30X2 1.1/16"X12 22 29.3 45.8 53.5 30 36 32 16 L ACOC-36-16-36OG M36X2 1.5/16"X12 28 33.3 49.8 57.5 36 41 41 ACOC-45-20-45OG M45X2 1.5/8"X12 35 39.2 60.7 63 48 50 50 ADOD-14-04-14OG M14X1.5 7/16"X20 6 17.5 32.5 30 14 17 17 63 S ADOD-16-06-16OG M16X1.5 9/16"X18 8 18.7 33.7 33.3 16 19 19 ADOD-18-06-18OG M18X1.5 9/16"X18 10 19.5 36 33.5 19 22 19 ADOD-20-08-20OG M20X1.5 3/4"X16 12 19.5 36 37.5 19 24 24 ADOD-22-10-22OG M22X1.5 7/8"X14 14 23 41 44 22 27 27 ADOD-24-10-24OG M24X1.5 7/8"X14 16 24 42.5 46.5 24 30 27 40 S ADOD-30-12-30OG M30X2 1.1/16"X12 20 28.3 49.8 53.5 30 36 32 ADOD-36-16-36OG M36X2 1.5/16"X12 25 32.8 56.8 57.5 36 46 41 ADOD-42-20-42OG M42X2 1.5/8"X12 30 36.2 62.7 59.5 41 50 50

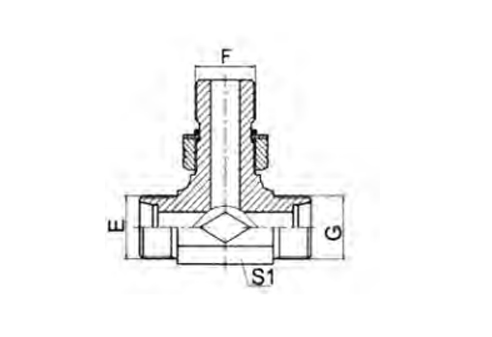

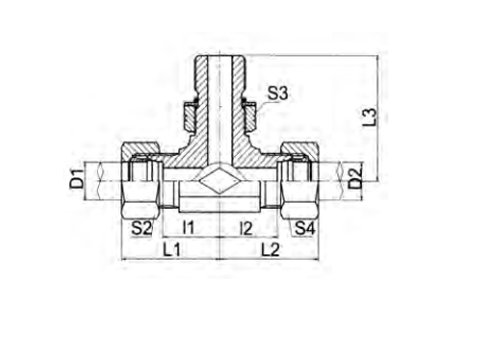

UN、Unf Thread Adjustable Stud Ends with O-ring Sealing Branch Tee
PEHEL Hydraulic Model: PACOC-OG PADOD-OG/PACOC-OG/RN PADOD-OG/RN
QTY:
