THREAD TUBE O.D. DIMENSIONS PART NO. MPa E,F G D1,D2 I 1,I2 L1,L2 L3 S1 S2,S4 S3 ACCO-12-12-04OG M12X1.5 7/16"X20 6 13 28 27.2 11 14 17 31.5 L ACCO-14-14-06OG M14X1.5 9/16"X18 8 15.5 30.5 31.8 14 17 19 ACCO-16-16-06OG M16X1.5 9/16"X18 10 17.5 32.5 33.3 16 19 19 ACCO-18-18-08OG M18X1.5 3/4"X16 12 19 34 38.5 19 22 24 ACCO-22-22-10OG M22X1.5 7/8"X14 15 22 37 44 22 27 27 ACCO-26-26-12OG M26X1.5 1.1/16"X12 18 25.5 42 51 27 32 32 ACCO-30-30-12OG M30X2 1.1/16"X12 22 29.5 45.8 54 30 36 32 16 L ACCO-36-36-16OG M36X2 1.5/16"X12 28 33.3 49.8 57.5 36 41 41 ACCO-45-45-20OG M45X2 1.5/8"X12 35 39.2 60.7 63 48 50 50 ADDO-14-14-04OG M14X1.5 7/16"X20 6 17.5 32.5 30 14 17 17 63 S ADDO-16-16-06OG M16X1.5 9/16"X18 8 18.7 33.7 33.3 16 19 19 ADDO-18-18-06OG M18X1.5 9/16"X18 10 19.5 36 33.5 19 22 19 ADDO-20-20-08OG M20X1.5 3/4"X16 12 19.5 36 37.5 19 24 24 ADDO-22-22-10OG M22X1.5 7/8"X14 14 23 41 44 22 27 27 ADDO-24-24-10OG M24X1.5 7/8"X14 16 24 42.5 46.5 24 30 27 40 S ADDO-30-30-12OG M30X2 1.1/16"X12 20 28.3 49.8 53.5 30 36 32 ADDO-36-36-16OG M36X2 1.5/16"X12 25 32.8 56.8 57.5 36 46 41 ADDO-42-42-20OG M42X2 1.5/8"X12 30 36.2 62.7 59.5 41 50 50

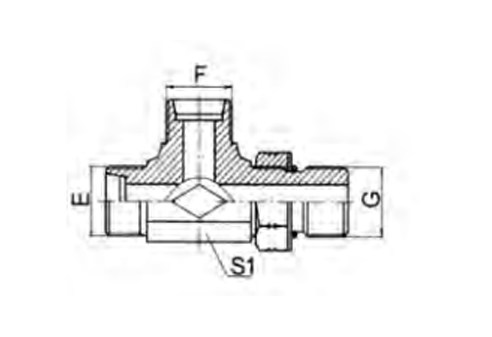

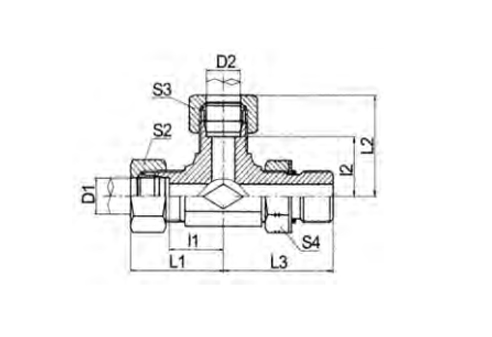

UN、Unf Thread Adjustable Stud Ends with O-ring Sealing Run Tee
PEHEL Hydraulic Model: PACCO-OG PADDO-OG/PACCO-OG/RN PADDO-OG/RN
QTY:
