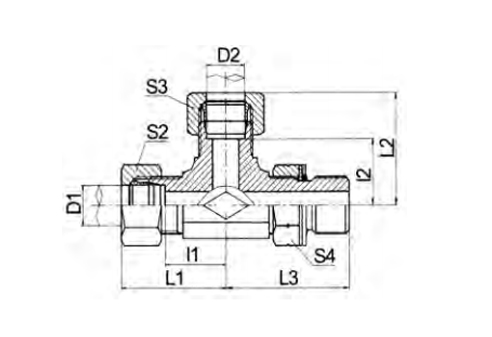

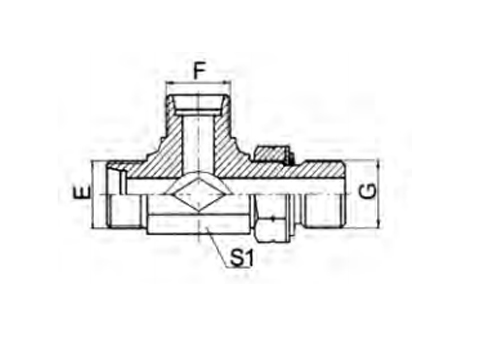

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E，F G D1，D2 I 1,I2 L1,L2 L3 S1 S2,S3 S4 ACCG-12-12-02OG M12X1.5 G1/8"X28 6 13 28 27 11 14 14 31.5 L ACCG-14-14-04OG M14X1.5 G1/4"X19 8 15.5 30.5 31.3 14 17 19 ACCG-16-16-04OG M16X1.5 G1/4"X19 10 17.5 32.5 32.5 16 19 19 ACCG-18-18-06OG M18X1.5 G3/8"X19 12 19 34 37 19 22 22 ACCG-22-22-08OG M22X1.5 G1/2"X14 15 22 37 43.2 22 27 27 ACCG-26-26-08OG M26X1.5 G1/2"X14 18 25.5 42 46 27 32 27 ACCG-30-30-12OG M30X2 G3/4"X14 22 29.3 45.8 52 30 36 32 16 L ACCG-36-36-16OG M36X2 G1"X11 28 33.3 49.8 56 36 41 41 ACCG-45-45-20OG M45X2 G1.1/4"X11 35 39 60.7 63 48 50 50 ADDG-14-14-04OG M14X1.5 G1/4"X19 6 17.5 32.5 31.3 14 17 19 63 S ADDG-16-16-04OG M16X1.5 G1/4"X19 8 18.5 33.7 32.5 16 19 19 ADDG-18-18-06OG M18X1.5 G3/8"X19 10 19.5 36 36.8 19 22 22 ADDG-20-20-06OG M20X1.5 G3/8"X19 12 19.5 36 36.8 19 24 22 ADDG-22-22-08OG M22X1.5 G1/2"X14 14 23 41 43.2 22 27 27 ADDG-24-24-08OG M24X1.5 G1/2"X14 16 24 42.5 44 24 30 27 40 S ADDG-30-30-12OG M30X2 G3/4"X14 20 28.3 49.8 52 30 36 32 ADDG-36-36-16OG M36X2 G1"X11 25 32.8 56.8 56 36 46 41 ADDG-42-42-20OG M42X2 G1.1/4"X11 30 36.2 62.7 58 41 50 50
BSP Thread Adjustable Stud End with O-ring Sealing Run Tee
PEHEL Hydraulic Model: PACCG-OG PADDG-OG/PACCG-OG/RN PADDG-OG/RN
QTY:
