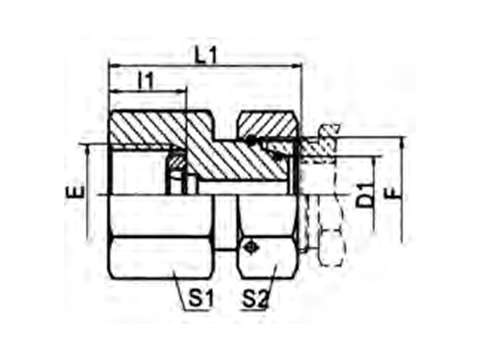

THREAD TUBE O.D. DIMENSIONS PART NO. E F D1 I1 L1 S1 S2 SEALING PRING DKI MPa 7BC-04-12GDK/S G1/4"X19 M12X1.5 6 14.5 35.5 19 14 DP-B04DK 31.5 L 7BC-04-14GDK/S G1/4"X19 M14X1.5 8 14.5 35.5 19 17 DP-B04DK 7BC-04-16GDK/S G1/4"X19 M16X1.5 10 14.5 36 19 19 DP-B04DK 7BC-04-18GDK/S G1/4"X19 M18X1.5 12 14.5 36 19 22 DP-B04DK 7BD-04-14GDK/S G1/4"X19 M14X1.5 6 14.5 35.5 19 17 DP-B04DK 63 S 7BD-04-16GDK/S G1/4"X19 M16X1.5 8 14.5 35.5 19 19 DP-B04DK 7BD-04-18GDK/S G1/4"X19 M18X1.5 10 14.5 36 19 22 DP-B04DK 7BD-04-20GDK/S G1/4"X19 M20X1.5 12 14.5 39 19 24 DP-B04DK 7BD-08-14GDK/S G1/2"X14 M14X1.5 6 20 42.5 27 17 DP-B08DK 7BD-08-16GDK/S G1/2"X14 M16X1.5 8 20 43 27 19 DP-B08DK 7BD-08-18GDK/S G1/2"X14 M18X1.5 10 20 43.5 27 22 DP-B08DK 7BD-08-20GDK/S G1/2"X14 M20X1.5 12 20 45 27 24 DP-B08DK
BSP Pressure Gauge Connector with Dki Sealing Ring
PEHEL Hydraulic Model: P7BC-GDK/S P7BD-GDK/S
