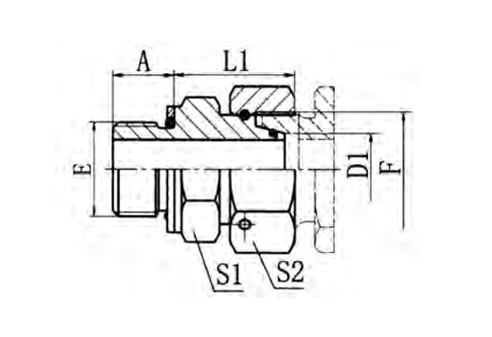

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 A L1 S1 S2 2GC-02-12 G1/8"X28 M12X1.5 6 9.5 23.5 14 14 31.5 L 2GC-04-14 G1/4"X19 M14X1.5 8 11 24.1 19 17 2GC-04-16 G1/4"X19 M16X1.5 10 11 24.2 19 19 2GC-06-18 G3/8"X19 M18X1.5 12 11.5 29.1 22 22 2GC-08-22 G1/2"X14 M22X1.5 15 14 33 27 27 2GC-08-26 G1/2"X14 M26X1.5 18 14 35 27 32 2GC-12-30 G3/4"X14 M30X2 22 15.5 34.5 32 36 16 L 2GC-16-36 G1"X11 M36X2 28 18 36.8 41 41 2GC-20-45 G1.1/4"X11 M45X2 35 20 47.6 50 50 2GC-24-52 G1.1/2"X11 M52X2 42 21.5 46.5 55 60 2GD-04-14 G1/4"X19 M14X1.5 6 11 24.1 19 17 63 S 2GD-04-16 G1/4"X19 M16X1.5 8 11 24.7 19 19 2GD-06-18 G3/8"X19 M18X1.5 10 11.5 27.1 22 22 2GD-06-20 G3/8"X19 M20X1.5 12 11.5 28 22 24 2GD-08-22 G1/2"X14 M22X1.5 14 14 32.9 27 27 2GD-08-24 G1/2"X14 M24X1.5 16 14 35.1 27 30 40 S 2GD-12-30 G3/4"X14 M30X2 20 15.5 37.5 32 36 2GD-16-36 G1"X11 M36X2 25 18 41.4 41 46 2GD-20-42 G1.1/4"X11 M42X2 30 20 44.6 50 50 2GD-24-52 G1.1/2"X11 M52X2 38 21.5 48.45 55 60 31.5 S
BSP Thread Stud Ends with O-ring Sealing
PEHEL Hydraulic Model: P2GC、2GD
QTY:
