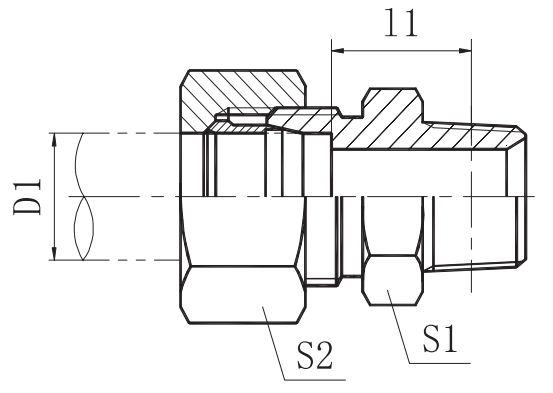

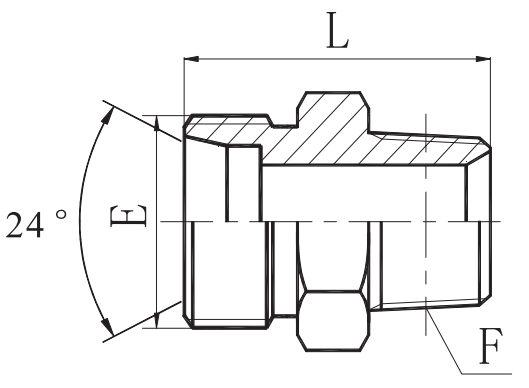

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D I1 S1 S2 L 1CT-12-02SP M12×1.5 R1/8"×28 6 15 12 14 26 25 L 1CT-12-04SP M12×1.5 R1/4"×19 8 16.5 17 14 29.5 1CT-14-04SP M14×1.5 R1/4"×19 8 16.5 14 17 29.5 1CT-14-06SP M14×1.5 R3/8"x19 8 18.6 19 17 32 1CT-16-04SP M16x1.5 R114"x19 10 17.5 17 19 30.5 1CT-16-06SP M16X1.5 R3/8"x19 10 18.6 19 19 32 1CT-16-08SP M16×1.5 R1/2"x14 10 22.8 22 19 38 1CT-16-12SP M16×1.5 R3/4"×14 10 22.5 30 19 39 16 L 1CT-18-04SP M18×1.5 R1/4"×19 12 18.5 19 22 31.5 1CT-18-06SP M18×1.5 R3/8"×19 12 18.6 19 22 32 1CT-18-08SP M18×1.5 R1/2"x14 12 21.8 22 22 37 1CT-22-08SP M22x1.5 R1/2"x14 15 22.8 24 27 38 1CT-26-08SP M26×1.5 R1/2"×14 18 23.3 27 32 39 1CT-26-12SP M26×1.5 R3/4"×14 18 22 30 32 39 1CT-30-12SP M30x2 R3/4"×14 22 25 32 36 42 1CT-36-16SP M36×2 R1"11 28 29.6 38 41 47.5 1CT-36-20SP M36x2 R1.1/4"×11 28 32.8 46 41 53 1CT-45-16SP M45X2 R1"x11 35 29.6 46 50 50.5 1CT-45-20SP M45X2 R1.1/4"×11 35 31.8 46 50 55 1CT-52-20SP M52x2 R1.1/4"×11 42 29.8 55 60 53.5 1CT-52-24SP M52x2 R1.1/2"×11 42 29.8 55 60 53.5 1DT-14-04SP M14×1.5 R1/4"×19 6 21.5 17 17 34.5 40 S 1DT-16-04SP M16×1.5 R1}4"×19 8 21.5 17 19 34.5 1DT-18-04SP M18×1.5 R1/4"×19 10 21 19 22 34.5 1DT-20-04SP M20×1.5 R1/4"X19 12 23 22 24 36.5 1DT-20-06SP M20×1.5 R3/8"x19 12 23.1 22 24 37 1DT-22-06SP M22×1.5 R3/8"×19 14 24.6 24 27 39 1DT-22-08SP M22×1.5 R1/2"×14 14 27,8 24 27 44 1DT-24-06SP M24×1.5 R3/8"×19 16 24.1 27 30 39 1DT-24-08SP M24×1.5 R1/2"X14 16 27.3 27 30 44 1DT-30-12SP M30×2 R3/4"×14 20 28 32 36 48 25 S 1DT-36-12SP M36×2 R3/4"X14 25 28.5 38 46 50 1DT-36-16SP M36×2 R1"X11 25 33.1 38 46 55.5 1DT-42-16SP M42x2 R1"X11 30 35.6 46 50 59.5 1DT-42-20SP M42×2 R1.1/4"×11 30 34,3 46 50 60.5 1DT-52-20SP M52×2 R1.184"×11 38 36.8 55 60 65.5 1DT-52-24SP M52x2 R1.1/2"×11 38 36.8 55 60 65.5
BSPT Male
PEHEL Hydraulic Model: P1CT-SP P1DT-SP/P1CT-SP/RN P1DT-SP/RN
QTY:
