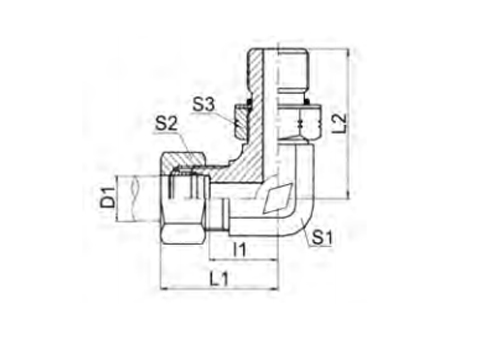

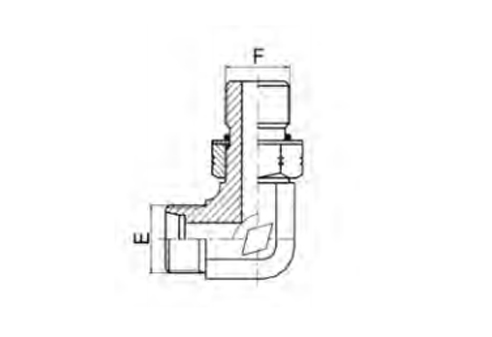

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 I1 L1 L2 S1 S2 S3 1CO9-12-04OG M12X1.5 7/16"X20 6 13 28 27.2 11 14 17 31.5 L 1CO9-14-06OG M14X1.5 9/16"X18 8 15.5 30.5 31.8 14 17 19 1CO9-16-06OG M16X1.5 9/16"X18 10 17 32.5 33.3 16 19 19 1CO9-18-08OG M18X1.5 3/4"X16 12 19 34 37.5 19 22 24 1CO9-22-10OG M22X1.5 7/8"X14 15 22 37 44 22 27 27 1CO9-22-08OG M22X1.5 3/4"X16 15 22 37 39.5 22 27 24 1CO9-26-12OG M26X1.5 1.1/16"X12 18 25.5 42 52.5 27 32 32 1CO9-30-12OG M30X2 1.1/16"X12 22 29.5 45.8 53.5 30 36 32 16 L 1CO9-36-12OG M36X2 1.1/16"X12 28 33.5 47.8 57.5 36 41 32 1CO9-36-16OG M36X2 1.5/16"X12 28 33.2 49.8 57.5 36 41 41 1CO9-45-20OG M45X2 1.5/8"X12 35 39 60.7 63 48 50 50 1CO9-52-24OG M52X2 1.7/8"X12 42 40 63 64 50 60 55 1DO9-14-04OG M14X1.5 7/16"X20 6 17.5 32.5 30 14 17 17 63 S 1DO9-16-06OG M16X1.5 9/16"X18 8 18.7 33.7 33.3 16 19 19 1DO9-18-06OG M18X1.5 9/16"X18 10 19.5 36 33.5 19 22 19 1DO9-18-08OG M18X1.5 3/4"X16 10 19.5 36 37.5 19 22 24 1DO9-20-08OG M20X1.5 3/4"X16 12 19.5 36 37.5 19 24 24 1DO9-22-10OG M22X1.5 7/8"X14 14 23 41 44 22 27 27 1DO9-24-10OG M24X1.5 7/8"X14 16 24 42.5 46.5 24 30 27 40 S 1DO9-30-12OG M30X2 1.1/16"X12 20 28 49.8 53.5 30 36 32 1DO9-36-16OG M36X2 1.5/16"X12 25 32.5 56.8 57.5 36 46 41 1DO9-42-20OG M42X2 1.5/8"X12 30 36.2 62.7 59.5 41 50 50 1DO9-52-24OG M52X2 1.7/8"X12 38 45.8 76.8 70.5 55 60 55 31.5 S
P1CO9-OG P1DO9-OG/P1CO9-OG/RN P1DO9-OG/RN
PEHEL Hydraulic Model: P1CO9-OG P1DO9-OG/P1CO9-OG/RN P1DO9-OG/RN
