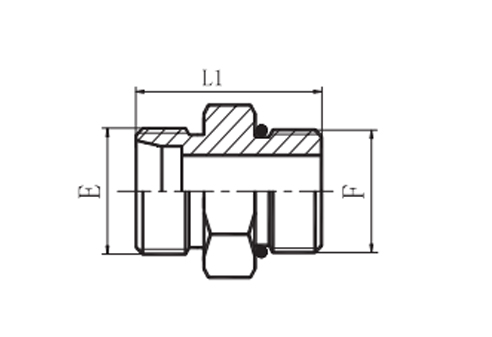

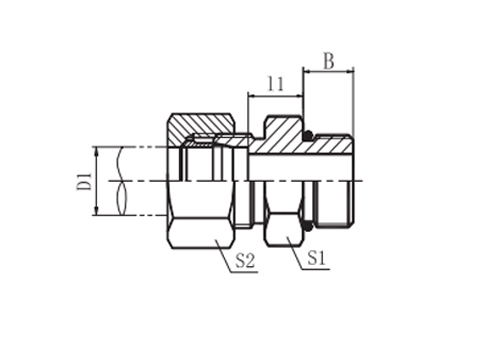

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 B I1 L1 S1 S2 1CO-14-04 M14X1.5 7/16""x20 8 9.14 8.36 24.5 14 17 31.5 L 1CO-16-04 M16X1.5 7}16"x20 10 9.14 9.36 25.5 17 19 1CO-18-06 M18x1.5 9/16"×18 12 9.93 10.07 27 19 22 1CO-18-08 M18x1.5 3/4""X16 12 11.13 10.37 28.5 22 22 1CO-18-10 M18x1.5 7/8""×14 12 12.7 14.3 34 27 22 1CO-22-08 M22×1.5 3/4"x16 15 11.13 14.87 33 24 27 1CO-22-10 M22X1.5 7/8""X14 15 12.7 12.3 32 27 27 1CO-22-12 M22X1.5 1.1/16""x12 15 15.09 11.91 34 32 27 1CO-26-08 M26X1.5 3/4""×16 18 11.13 14.87 33.5 27 32 1CO-26-10 M26×1.5 7/8""×14 18 12.7 11.5 31.7 27 32 1CO-30-08 M30×2 3/4""X16 22 11.13 17.37 36 32 36 16 L 1CO-30-10 M30x2 7/8""x14 22 12.7 17.3 37.5 32 36 1CO-30-12 M30×2 1.1/16"x12 22 15.09 13.41 36 32 36 1CO-30-16 M30×2 1.5/16""×12 22 15.09 14.41 37 38 36 1CO-36-12 M36x2 1.1/16""×12 28 15.09 14.41 37 38 41 1CO-36-16 M36×2 1.5/16""x12 28 15.09 14.41 37 41 41 1CO-45-16 M45X2 1.5/16""x12 35 15.09 16.41 42 46 50 1CO-45-20 M45x2 1.5/8"x12 35 15.09 16.41 42 50 50 1CO-52-20 M52x2 1.5/8""×12 42 15.09 16.91 43 55 60 1DO-16-04 M16×1.5 7}16"x20 8 9.14 12.86 29 17 19 63 S 1DO-18-06 M18X1.5 9/16""×18 10 9.93 12.57 30 19 22 1DO-20-06 M20×1.5 9/16""×18 12 9.93 14.57 32 22 24 1DO-20-08 M20×1.5 3/4""X16 12 11.13 14.87 33.5 24 24 1DO-24-08 M24x1.5 3/4"x16 16 11.13 15.37 35 27 30 40 S 1CO-24-10 M24X1.5 7/8""X14 16 12.7 15.8 37 27 30 1DO-30-08 M30×2 3/4"x16 20 11.13 17.87 39.5 32 36 1CO-30-10 M30x2 7/8""X14 20 12.7 17.3 40.5 32 36 1CO-30-12 M30x2 1.1/16"X12 20 15.09 17.41 43 32 36 1DO-36-12 M36×2 1.1/16"X12 25 15.09 18.91 46 41 46 1DO-36-16 M36×2 1.5/16""x12 25 15.09 19.91 47 41 46 1DO-42-16 M42X2 1.5/16""X12 30 15.09 20.41 49 46 50 1DO-42-20 M42×2 1.5/8""×12 30 15.09 20.41 49 50 50 1DO-52-20 M52x2 1.5/8""×12 38 15.09 25.91 53 55 60 31.5 S
90° Elbow UN、unf Thread Adjustable Stud Ends with O-ring Sealing
PEHEL Hydraulic Model: P1CO P1DO/P1CO-RN P1DO-RN
QTY:
