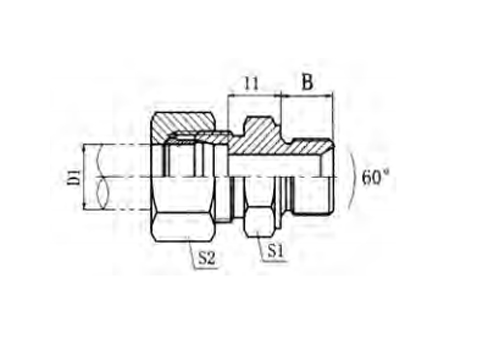

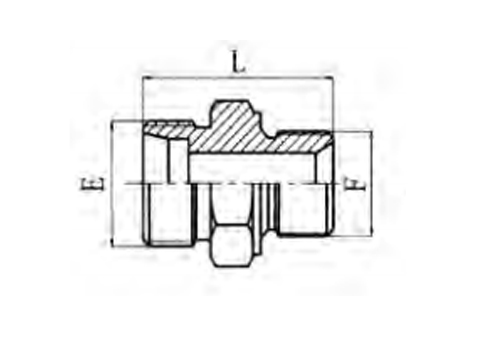

THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 B I1 L S1 S2 1CM-12-10 M12X1.5 M10X1 6 8 9.5 24.5 14 14 31.5 L 1CM-14-12 M14X1.5 M12X1.5 8 10 10 27 17 17 1CM-14-18 M14X1.5 M18X1.5 8 12 11.5 30.5 24 17 1CM-16-14 M16X1.5 M14X1.5 10 11 11 29 19 19 1CM-16 M16X1.5 M16X1.5 10 12 12.5 31.5 22 19 1CM-16-18 M16X1.5 M18X1.5 10 12 13 32 24 19 1CM-16-22 M16X1.5 M22X1.5 10 14 15 36 27 19 1CM-18-14 M18X1.5 M14X1.5 12 11 11 29 19 22 1CM-18-16 M18X1.5 M16X1.5 12 12 12 31 22 22 1CM-18 M18X1.5 M18X1.5 12 12 12.5 31.5 24 22 1CM-18-22 M18X1.5 M22X1.5 12 14 14 35 27 22 1CM-22-16 M22X1.5 M16X1.5 15 12 13.5 32.5 24 27 1CM-22-18 M22X1.5 M18X1.5 15 12 13.5 32.5 24 27 1CM-22 M22X1.5 M22X1.5 15 14 15 36 27 27 1CM-26-18 M26X1.5 M18X1.5 18 12 14.5 34 27 32 1CM-26-22 M26X1.5 M22X1.5 18 14 14.5 36 27 32 1CM-30-22 M30X2 M22X1.5 22 14 16.5 38 32 36 16 L 1CM-30-26 M30X2 M26X1.5 22 16 16.5 42 32 36 1CM-30-27 M30X2 M27X2 22 16 18.5 42 32 36 1CM-36-33 M36X2 M33X2 28 18 17.5 43 41 41 1CM-45-42 M45X2 M42X2 35 20 21.5 52 50 50 1CM-52-48 M52X2 M48X2 42 22 19 52 55 60 1DM-14-12 M14X1.5 M12X1.5 6 10 12 29 17 17 63 S 1DM-16-14 M16X1.5 M14X1.5 8 11 13 31 19 19 1DM-18-16 M18X1.5 M16X1.5 10 12 15 34.5 22 22 1DM-20-18 M20X1.5 M18X1.5 12 12 17 36.5 24 24 1DM-20-22 M20X1.5 M22X1.5 12 14 15.5 37 27 24 1DM-22-20 M22X1.5 M20X1.5 14 14 17 39 27 27 1DM-24-18 M24X1.5 M18X1.5 16 12 16.5 37 27 30 40 S 1DM-24-22 M24X1.5 M22X1.5 16 14 16.5 39 27 30 1DM-30-27 M30X2 M27X2 20 16 18.5 45 32 36 1DM-36-33 M36X2 M33X2 25 18 23 53 41 46 1DM-42 M42X2 M42X2 30 20 23.5 57 50 50 25 S 1DM-52-48 M52X2 M48X2 38 22 26 64 55 60

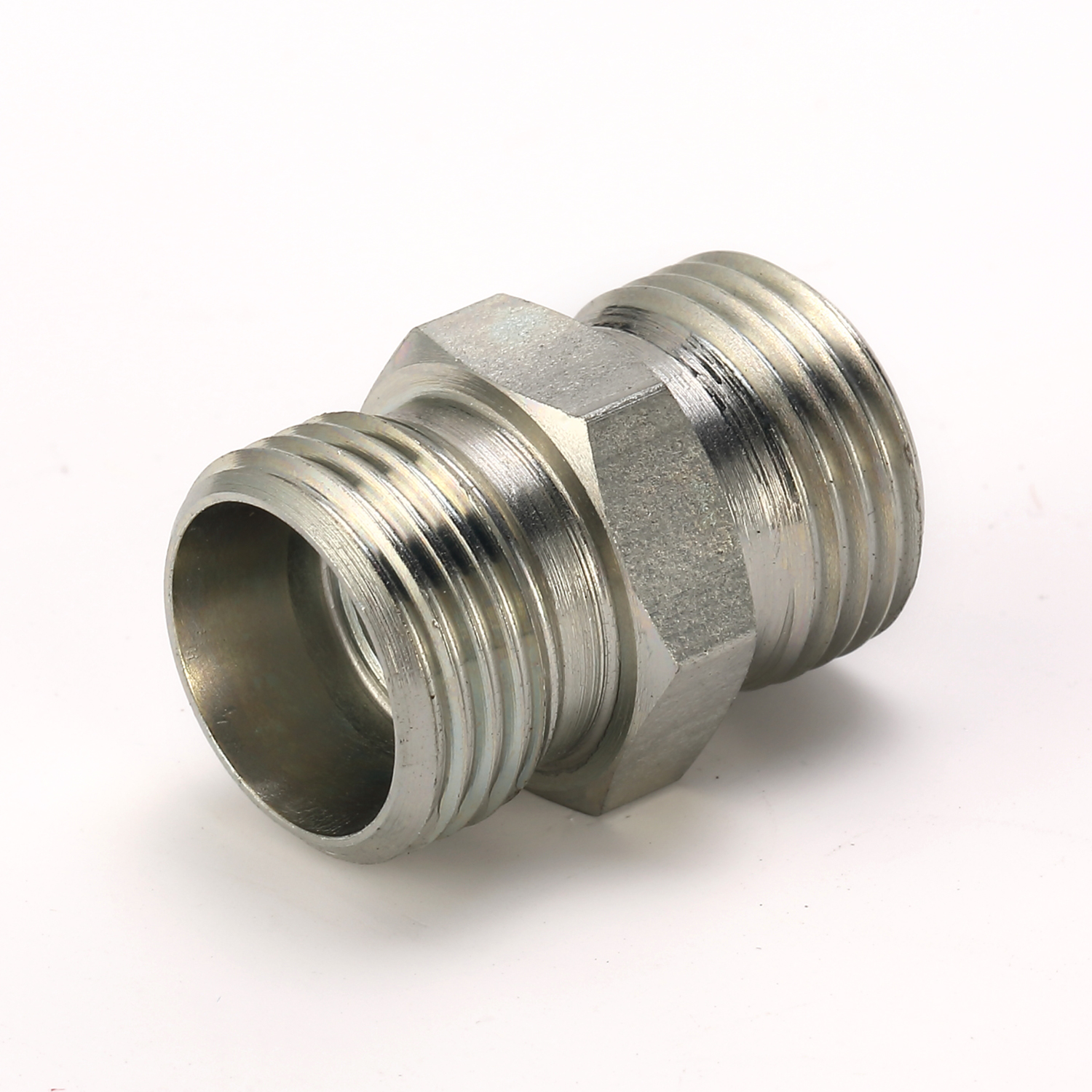

Metric Thread with Captive Seal
PEHEL Hydraulic Model: P1CM P1DM/P1CM/RN P1DM/RN
QTY:
