THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 B I1 L1 S1 S2 1CJ-12-04 M12X1.5 7/6"X20 6 14 8 29 12 14 31.5 L 1CJ-14-04 M14X1.5 7/6"X20 8 14 8 29 14 17 1CJ-14-06 M14X1.5 9/16"X18 8 14.1 8 29.1 17 17 1CJ-16-06 M16X1.5 9/16"X18 10 14.1 8.9 30 17 19 1CJ-18-06 M18X1.5 9/16"X18 12 14.1 9.9 31 19 22 1CJ-18-08 M18X1.5 3/4"X16 12 16.7 10.3 34 22 22 1CJ-22-08 M22X1.5 3/4"X16 15 16.7 10.8 34.5 24 27 1CJ-22-10 M22X1.5 7/8"X14 15 19.3 11 37.3 24 27 1CJ-26-10 M26X1.5 7/8"X14 18 19.3 11.7 38.5 27 32 1CJ-26-12 M26X1.5 1.1/6"X12 18 21.9 11.6 41 30 32 1CJ-30-12 M30X2 1.1/6"X12 22 21.9 13.6 43 32 36 16 L 1CJ-36-16 M36X2 1.5/6"X12 28 23.1 14.5 45.1 41 41 1CJ-45-20 M45X2 1.5/8"X12 35 24.3 14.7 49.5 46 50 1CJ-52-20 M52X2 1.5/8"X12 42 24.3 16 51.3 55 60 1CJ-52-24 M52X2 1.7/8"X12 42 27.5 16 54.5 55 60 1DJ-14-04 M14X1.5 7/16"X20 6 14 11 32 14 17 63 S 1DJ-16-04 M16X1.5 7/16"X20 8 14 13 34 17 19 1DJ-16-06 M16X1.5 9/16"X18 8 14.1 12.9 34 17 19 1DJ-18-04 M18X1.5 7/16"X20 10 14 12.5 34 19 22 1DJ-18-06 M18X1.5 9/6"X18 10 14.1 12.4 34 19 22 1DJ-20-06 M20X1.5 9/6"X18 12 14.1 14.4 36 22 24 1DJ-20-08 M20X1.5 3/4"X16 12 16.7 14.3 38.5 22 24 1DJ-22-08 M22X1.5 3/4"X16 14 16.7 15.8 40.5 24 27 1DJ-24-08 M24X1.5 3/4"X16 16 16.7 15.3 40.5 27 30 40 S 1DJ-24-10 M24X1.5 7/8"X16 16 19.3 15.2 43 27 30 1DJ-30-12 M30X2 1.1/16"X12 20 21.9 17.6 50 32 36 1DJ-36-12 M36X2 1.1/16"X12 25 21.9 20.1 54 38 46 1DJ-36-16 M36X2 1.5/16"X12 25 23.1 19.9 55 38 46 1DJ-42-20 M42X2 1.5/8"X12 30 24.3 20.2 58 46 50 1DJ-52-24 M52X2 1.7/8"X12 38 27.5 23 66.5 55 60 31.5 S

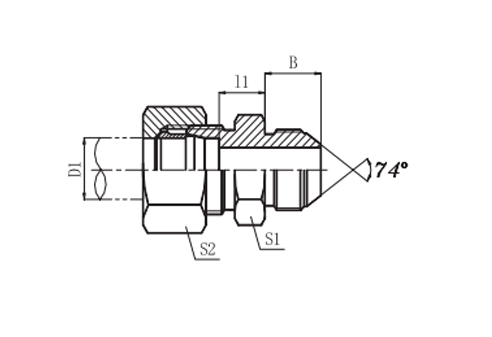

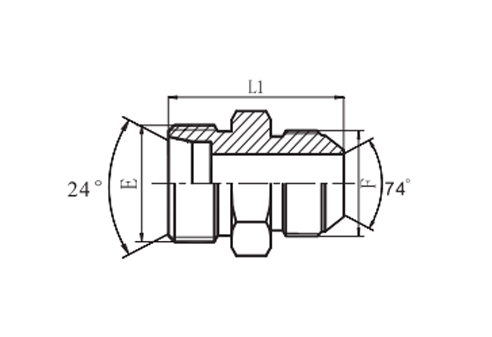

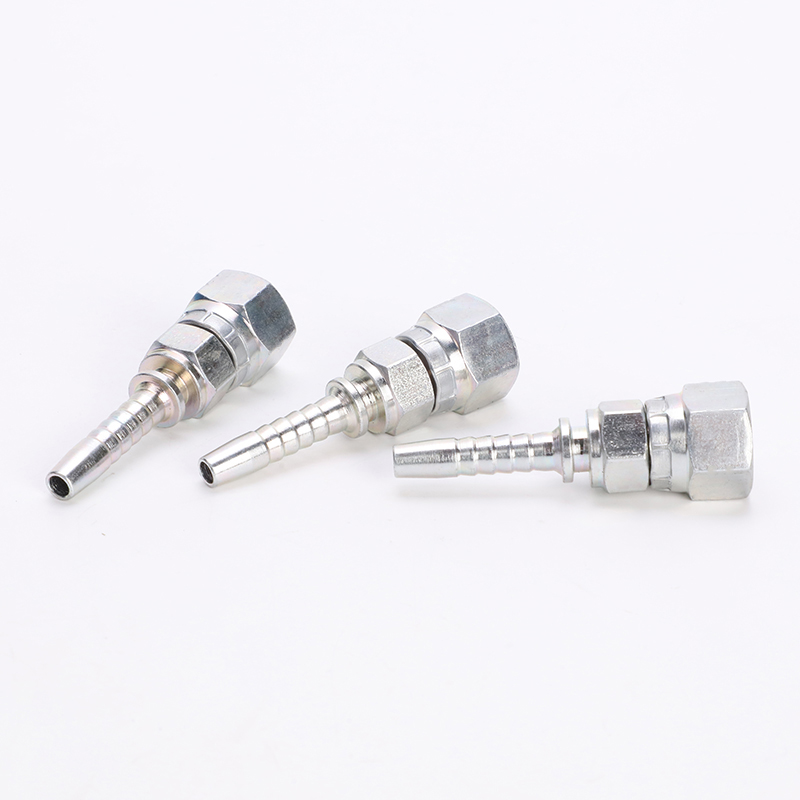

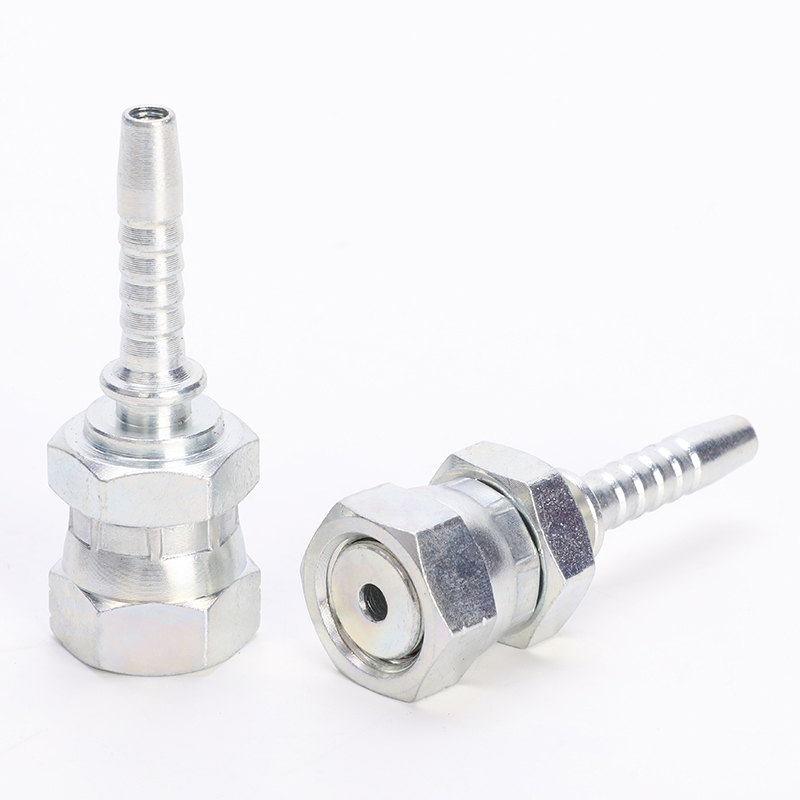

JIC 74°CONE SEALING
PEHEL Hydraulic Model: P1CJ P1DJ/P1CJ-RN P1DJ-RN
QTY:
