THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 I1 L1 L2 S1 S2 S3 1CG9-12-02OG M12X1.5 G1/8"X28 6 13 28 26.2 11 14 14 31.5 L 1CG9-14-04OG M14X1.5 G1/4"X19 8 15.5 30.5 31.3 14 17 19 1CG9-16-04OG M16X1.5 G1/4"X19 10 17.5 32.5 32.5 16 19 19 1CG9-16-06OG M16X1.5 G3/8"X19 10 17.5 32.5 35.8 16 19 22 1CG9-18-06OG M18X1.5 G3/8"X19 12 19 34 37 19 22 22 1CG9-22-08OG M22X1.5 G1/2"X14 15 22 37 43.2 22 27 27 1CG9-26-08OG M26X1.5 G1/2"X14 18 25.5 42 46 27 32 27 1CG9-26-12OG M26X1.5 G3/4"X14 18 25.5 42 49.3 27 32 32 1CG9-30-12OG M30X2 G3/4"X14 22 29.5 45.8 52 30 36 32 16 L 1CG9-30-16OG M30X2 G1"X11 22 31.5 48 53 33 36 41 1CG9-36-16OG M36X2 G1"X11 28 33 49.8 56 36 41 41 1CG9-36-20OG M36X2 G1.1/4"X11 28 36 52.8 59 41 41 50 1CG9-45-20OG M45X2 G1.1/4"X11 35 39 60.7 63 48 50 50 1CG9-52-24OG M52X2 G1.1/2"X11 42 40.5 63.8 64.5 48 60 55 1DG9-14-04OG M14X1.5 G1/4"X19 6 17.5 32.5 31.3 14 17 19 63 S 1DG9-16-04OG M16X1.5 G1/4"X19 8 18.5 33.7 32.5 16 19 19 1DG9-16-06OG M16X1.5 G3/8"X19 8 18.7 33.7 35.8 16 19 22 1DG9-18-06OG M18X1.5 G3/8"X19 10 19.5 36 36.8 19 22 22 1DG9-20-06OG M20X1.5 G3/8"X19 12 19.5 36 37 19 24 22 1DG9-22-08OG M22X1.5 G1/2"X14 14 23.5 41 43.2 22 27 27 1DG9-24-08OG M24X1.5 G1/2"X14 16 24 42.5 43 24 30 27 40 S 1DG9-30-12OG M30X2 G3/4"X14 20 28 49.5 52 30 36 32 1DG9-36-16OG M36X2 G1"X11 25 32.5 56.8 56 36 46 41 1DG9-42-20OG M42X2 G1.1/4"X11 30 36.2 62.7 58 41 50 50 1DG9-52-24OG M52X2 G1.1/2"X11 38 41.5 72.8 63.5 50 60 55 31.5 S

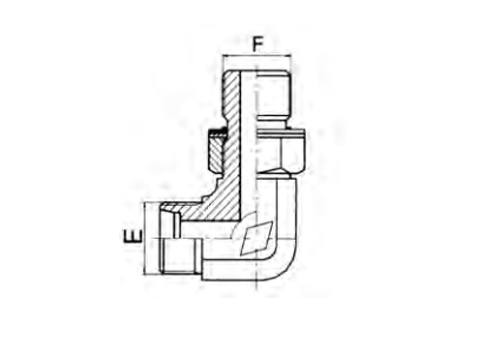

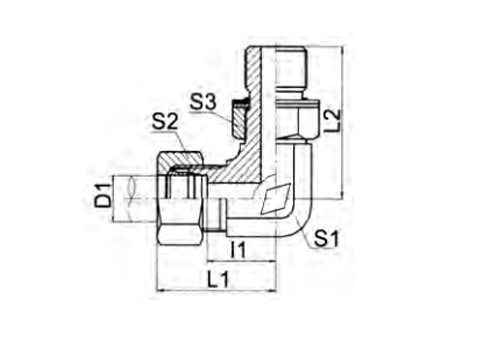

90° Elbow Sp Thread Adjustable Stud Ends with O-ring Sealing
PEHEL Hydraulic Model: P1CG9-OG P1DG9-OG/P1CG9-OG/RN P1DG9-OG/RN
QTY:
