THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 I1 L1 L2 S1 S2 S3 1CG4-12-02OG M12X1.5 G1/8"X28 6 10 25 24 11 14 14 31.5 L 1CG4-14-04OG M14X1.5 G1/4"X19 8 11 26 27 14 17 19 1CG4-16-04OG M16X1.5 G1/4"X19 10 12 27.3 27 16 19 19 1CG4-16-06OG M16X1.5 G3/8"X19 10 12.3 27.3 30 16 19 22 1CG4-18-06OG M18X1.5 G3/8"X19 12 13 28 31 19 22 22 1CG4-22-08OG M22X1.5 G1/2"X14 15 15 30 36 22 27 27 1CG4-26-08OG M26X1.5 G1/2"X14 18 16.5 33 37.5 27 32 27 1CG4-26-12OG M26X1.5 G3/4"X14 18 16.5 33 42 27 32 32 1CG4-30-12OG M30X2 G3/4"X14 22 19.5 36.2 42.5 30 36 32 16 L 1CG4-36-16OG M36X2 G1"X11 28 21.5 38 44.5 36 41 41 1CG4-45-20OG M45X2 G1.1/4"X11 35 25.5 47 50.5 48 50 50 1DG4-14-04OG M14X1.5 G1/4"X19 6 13 28 27 14 17 19 63 S 1DG4-16-04OG M16X1.5 G1/4"X19 8 13 28.3 27 16 19 19 1DG4-18-06OG M18X1.5 G3/8"X19 10 13.5 30 31 19 22 22 1DG4-20-06OG M20X1.5 G3/8"X19 12 13.5 30 31 19 24 22 1DG4-22-08OG M22X1.5 G1/2"X14 14 16.3 34.3 36 22 27 27 1DG4-24-08OG M24X1.5 G1/2"X14 16 16 34.7 36.5 24 30 27 40 S 1DG4-30-12OG M30X2 G3/4"X14 20 18.7 40.2 42.5 30 36 32 1DG4-36-16OG M36X2 G1"X11 25 21 45 44.5 36 46 41 1DG4-42-20OG M42X2 G1.1/4"X11 30 24.3 50.8 47.5 41 50 50

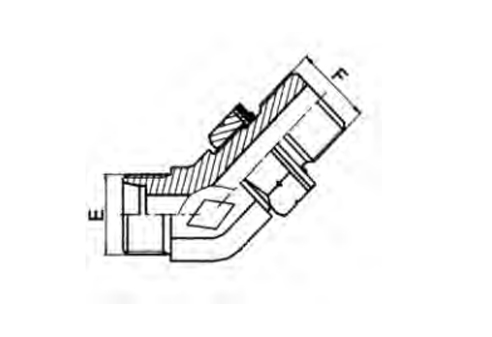

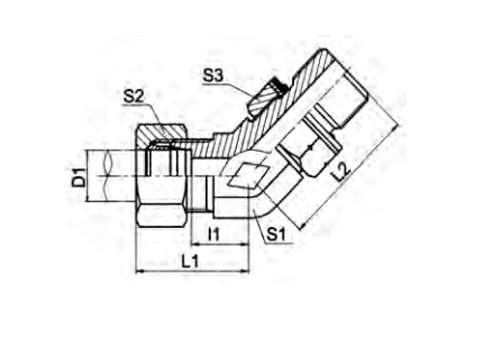

45° Elbow Sp Thread Adjustable Stud Ends with O-ring Sealing
PEHEL Hydraulic Model: P1CG4-OG P1DG4-OG/P1CG4-OG/RN P1DG4-OG/RN
QTY:
