THREAD TUBE O.D. DIMENSIONS PART NO. MPa E F D1 B I1 L1 S1 S2 1CG-12-02 M12×1.5 G1/8"X28 6 9.5 10.5 27 14 14 31.5S 1CG-12-04 M12x1.5 G114"X19 6 11 9.5 27.5 19 14 1CG-14-04 M14×1.5 G114"X19 8 11 10 28 19 17 1CG-14-06 M14x1.5 G3/8"x19 8 11.5 11.5 30 22 17 1CG-14-08 M14x1.5 G1/2"X14 8 14 13 34 27 17 1CG-16-04 M16×1.5 G1/4"×19 10 10 12 30 19 19 1CG-16-06 M16X1.5 G3/8"x19 10 11.5 12.5 31 22 19 1CG-16-08 M16×1.5 1/2"X14 10 14 14 35 27 19 1CG-18-06 M18×1.5 3/8"x19 12 11.5 12.5 31 22 22 1CG-18-08 M18X1.5 G1/2"X14 12 14 14 35 27 22 1CG-22-06 M22x1.5 3/8"x19 15 11.5 13.5 32 24 27 1CG-22-08 M22x1.5 G1/2"X14 15 14 15 36 27 27 1CG-22-12 M22X1.5 3/4"x14 15 15.5 20 42.5 32 27 1CG-26-08 M26X1.5 G1/2"×14 18 14 14.5 36 27 32 1CG-26-12 M26X1.5 G3/4"X14 18 15.5 14.5 37.5 32 32 1CG-30-12 M30x2 G3/4"×14 22 15.5 16.5 39.5 32 36 16L 1CG-30-16 M30x2 G1"x11 22 18 17.5 43 41 36 1CG-36-16 M36×2 G1"x11 28 18 17.5 43 41 41 1CG-45-20 M45×2 G1.1/4"×11 35 20 19.5 50 50 50 1CG-52-20 M52x2 G1.1}4"×11 42 20 19 50 55 60 1CG-52-24 M52×2 G1.1/2"x11 42 21.5 19 51.5 55 6o 1CG-52-32 M52x2 G2"x11 42 24.5 25 60.5 70 6o 1DG-14-04 M14×1.5 G1/4"X19 6 10 15 32 19 17 63S 1DG-16-04 M16x1.5 G1/4"X19 8 11 15 33 19 19 1DG-18-04 M18×1.5 G1/4"x19 10 11 14.5 33 19 22 1DG-18-06 M18x1.5 3/8"x19 10 11.5 15 34 22 22 1DG-20-06 M20x1.5 3/8"x19 12 11.5 15 34 22 24 1DG-20-08 M20x1.5 G1/2"X14 12 14 17.5 39 27 24 1CG-22-06 M22×1.5 G3/8"x19 14 11.5 16 35.5 24 27 1DG-22-08 M22x1.5 G1/2"×14 14 14 19 41 27 27 1DG-24-04 M24×1.5 G1/4"X19 16 11 17 36.5 27 30 1CG-24-08 M24×1.5 G1/2"x14 16 14 18.5 41 27 30 40S 1DG-30-12 M30x2 G3/4"x14 20 15.5 20.5 46.5 32 36 1DG-36-12 M36x2 G3/4"x14 25 15.5 23 50.5 41 46 1DG-36-16 M36x2 G1"x11 25 18 23 53 41 46 1DG-42-16 M42x2 G1"x11 30 18 23.5 55 46 50 1DG-42-20 M42x2 G1.1/4"x11 30 20 23.5 57 50 50 1DG-52-24 M52×2 1.1/2"×x11 38 21.5 26 63.5 55 60 31.5 S

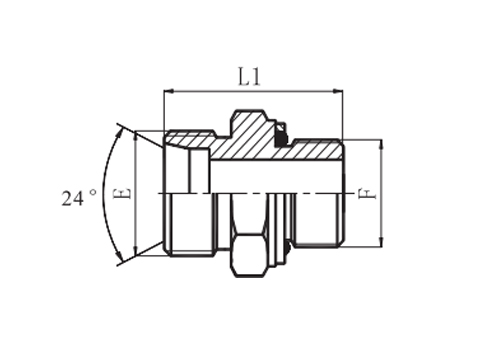

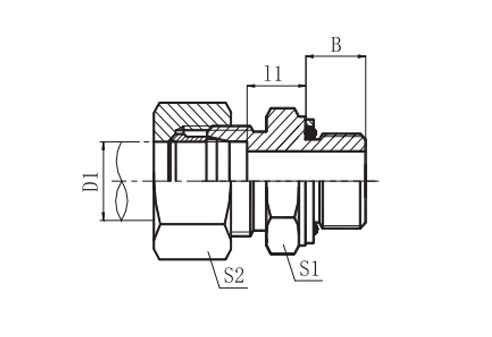

BSP Thread Stud Ends with O-ring Sealing
PEHEL Hydraulic Model: P1CG P1DG/P1CG-RN P1DG-RN
QTY:
