PART NO. THREAD O-RING DIMENSIONS E F G G A B C S1 S2 AJJH-04-04-10OG 7/16"X20 7/16"X20 M10X1 O08.1X1.6 24.5 24.5 26.5 11 14 AJJH-04-04-12OG 7/16"X20 7/16"X20 M12X1.5 O09.3X2.4 26.5 26.5 32.5 14 17 AJJH-05-05-12OG 1/2"X20 1/2"X20 M12X1.5 O09.3X2.4 26.5 26.5 32 14 17 AJJH-05-05-14OG 1/2"X20 1/2"X20 M14X1.5 O11.3X2.4 26.5 26.5 32 14 19 AJJH-06-06-14OG 9/16"X18 9/16"X18 M14X1.5 O11.3X2.4 27 27 32 14 19 AJJH-06-06-16OG 9/16"X18 9/16"X18 M16X1.5 O13.3X2.4 28 28 34.5 16 22 AJJH-08-08-16OG 3/4"X16 3/4"X16 M16X1.5 O13.3X2.4 32 32 36 19 22 AJJH-08-08-18OG 3/4"X16 3/4"X16 M18X1.5 O15.3X2.4 32 32 37 19 24 AJJH-10-10-18OG 7/8"X14 7/8"X14 M18X1.5 O15.3X2.4 38 38 39.5 22 24 AJJH-10-10-22OG 7/8"X14 7/8"X14 M22X1.5 O19.3X2.4 37.8 37.8 40.2 22 27 AJJH-12-12-22OG 1.1/16"X12 1.1/16"X12 M22X1.5 O19.3X2.4 44 44 44 27 27 AJJH-12-12-27OG 1.1/16"X12 1.1/16"X12 M27X2 O23.5X3.0 44 44 48.5 27 32 AJJH-16-16-27OG 1.5/16"X12 1.5/16"X12 M27X2 O23.5X3.0 49 49 52 33 32 AJJH-16-16-33OG 1.5/16"X12 1.5/16"X12 M33X2 O29.5X3.0 49 49 52.5 33 41 AJJH-20-20-42OG 1.5/8"X12 1.5/8"X12 M42X2 O38.5X3.0 55.5 55.5 57.2 41 50 AJJH-24-24-48OG 1.7/8"X12 1.7/8"X12 M48X2 O44.5X3.0 62.5 62.5 62.5 48 55

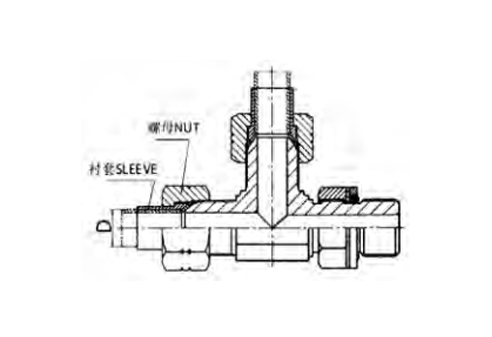

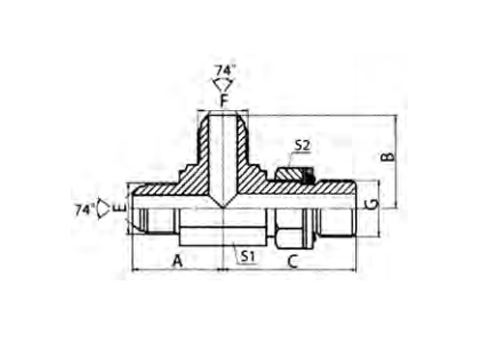

JIC MALE 74° CONE
PEHEL Hydraulic Model: PAJJH-OG
QTY:
