THREAD DIMENSIONS PART NO. E F A B L S1 5J-04-06S 7/16"X20 9/16"X18 14 10 26.2 19 5J-04-08S 7/16"x20 3/4"X16 14 11 26.2 24 5J-04-10S 7/16"X20 7/8"X14 14 12 28 27 5J-04-12S 7/16"X20 1.1/16"X12 14 13 29.8 32 5J-04-14S 7/16"X20 1.3/16"X12 14 14 32.5 36 5J-05-08S 1/2"X20 3/4"X16 14 11 26.2 24 5J-05-10S 1/2"X20 7/8"X14 14 12 28 27 5J-05-12S 1/2"X20 1.1/16"X12 14 13 29.8 32 5J-06-08S 9/16"X18 3/4"X16 14.1 11 26.3 24 5J-06-10S 9/16"X18 7/8"X14 14.1 12 28.2 27 5J-06-12S 9/16"X18 1.1/16"X12 14.1 13 30.1 32 5J-06-14S 9/16"X18 1.3/16"X12 14.1 14 32.5 36 5J-06-16S 9/16"X18 1.5/16"X12 14.1 16 33 41 5J-08-12S 3/4"X16 1.1/16"X12 16.7 13 33.3 32 5J-08-14S 3/4"X16 1.3/16"X12 16.7 14 35 36 5J-08-16S 3/4"X16 1.5/16"X12 16.7 16 35.6 41 5J-08-20S 3/4"X16 1.5/8"X12 16.7 15 35.5 50 5J-10-16S 7/8"X14 1.5/16"X12 19.3 16 37.5 41 5J-10-20S 7/8"X14 1.5/8"X12 19.3 15 37.9 50 5J-10-24S 7/8"X14 1.7/8"X12 19.3 19 42 55 5J-12-16S 1.1/16"X12 1.5/16"X12 21.9 16 40.2 41 5J-12-20S 1.1/16"X12 1.5/8"X12 21.9 15 40.6 50 5J-12-24S 1.1/16"X12 1.7/8"X12 21.9 19 42 55 5J-16-20S 1.5/16"X12 1.5/8"X12 23.1 15 41.8 50 5J-16-24S 1.5/16"X12 1.7/8"X12 23.1 19 43.2 55 5J-16-32S 1.5/16"X12 2.1/2"X12 23.1 24 49 75 5J-20-24S 1.5/8"X12 1.7/8"X12 24.3 19 44.3 55 5J-20-32S 1.5/8"X12 2.1/2"X12 24.3 24 50 75

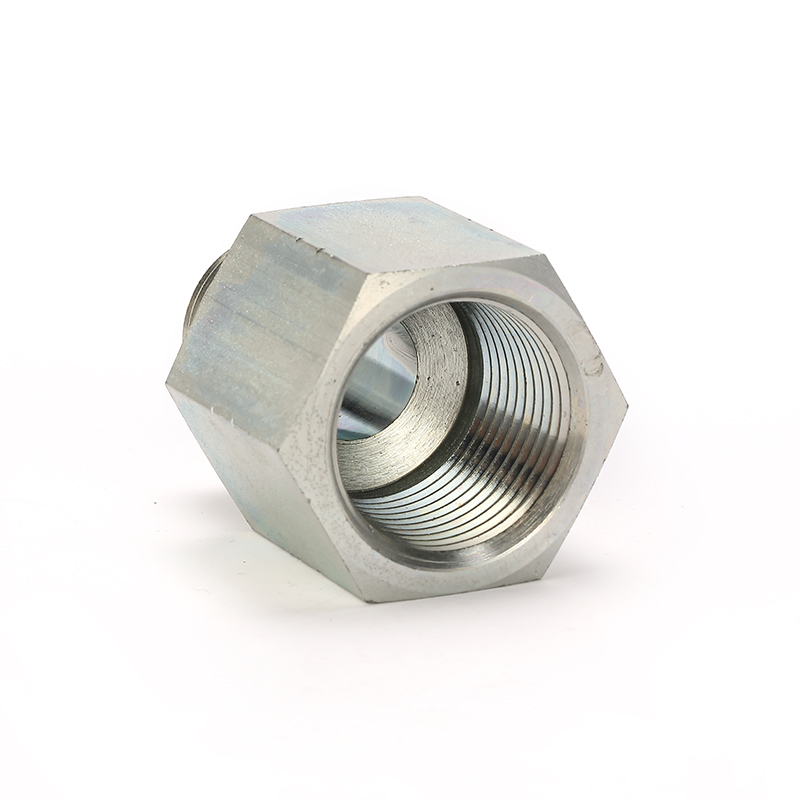

JIC MALE / JIC FEMALE
PEHEL Hydraulic Model: P5J-S
QTY:
