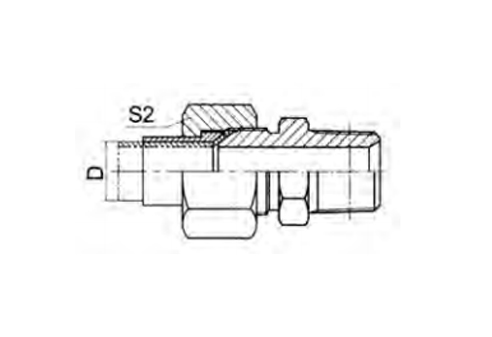

THREAD TUBE O.D. DIMENSIONS PART NO. E F D A B L S1 S2 1QN-12-02 M12X1.5 Z1/8"X27 6 15.7 10.5 32 14 14 1QN-12-04 M12X1.5 Z1/4”X18 6 15.7 15 36.5 14 14 1QN-14-02 M14X1.5 Z1/8"X27 8 17 10.5 33 17 17 1QN-14-04 M14X1.5 Z1/4"X18 8 17 15 38 17 17 1QN-16-04 M16X1.5 Z1/4"X18 10 18 15 39 19 22 1QN-16-06 M16X1.5 Z3/8"X18 10 18 16 40 19 22 1QN-18-04 M18X1.5 Z1/4"X18 12 18 15 39 19 24 1QN-18-06 M18X1.5 Z3/8"X18 12 18 16 40 19 24 1QN-18-08 M18X1.5 Z1/2"X14 12 18 19.5 45.5 22 24 1QN-22-06 M22X1.5 Z3/8"X18 14 19.5 16 43.5 24 27 1QN-22-08 M22X1.5 Z1/2"X14 14 19.5 19.5 47 24 27 1QN-27-06 M27X1.5 Z3/8"X18 18 20 16.5 46 30 32 1QN-27-08 M27X1.5 Z1/2"X14 18 20 19 49 30 32 1QN-27-12 M27X1.5 Z3/4"X14 18 20 19.5 49.5 30 32 1QN-27-16 M27X1.5 Z1"X11.5 18 20 25.5 56.5 36 32 1QN-30-12 M30X1.5 Z3/4"X14 20 23 19.5 53.5 32 36 1QN-33-12 M33X2 Z3/4"X14 22 26 19.5 56.5 36 41 1QN-36-16 M36X2 Z1"X11.5 25 25 25.5 63 41 41 1QN-39-16 M39X2 Z1"X11.5 28 26 25.5 64.5 41 46 1QN-45-16 M45X2 Z1"X11.5 34 28.5 25.5 67 46 50 1QN-45-20 M45X2 Z1.1/4"X11.5 34 28.5 26.5 68 46 50 1QN-45-24 M45X2 Z1.1/2"X11.5 34 28.5 27.5 71 50 50 1QN-52-20 M52X2 Z1.1/4"X11.5 42 30 26.5 71.5 55 60

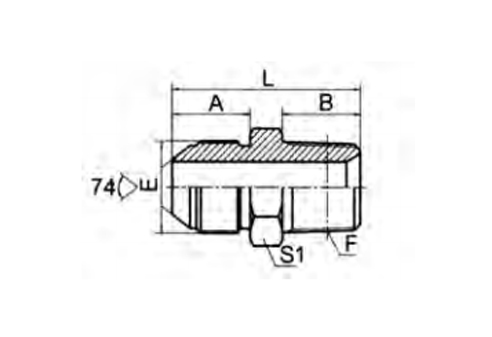

METRIC MALE 74° CONE
PEHEL Hydraulic Model: P1QN/P1QN-RN
QTY:
