PART NO. THREAD O-RING DIMENSIONS E F F A B L S1 1JO-04-02 7/16"X20 5/16"X24 O902 14 7.5 27.5 14 1JO-04-03 7/16"X20 3/8"X24 O903 14 7.54 27.5 14 1JO-04 7/16"X20 7/16"X20 O904 14 9.14 29 14 1JO-04-05 7/16"X20 1/2"X20 O905 14 9.14 29 17 1JO-04-06 7/16"X20 9/16"Xl8 O906 14 10 30 17 1JO-04-08 7/16"X20 3/4"X16 O908 14 11.13 33 22 1JO-05 1/2"X20 1/2"X20 O905 14 9.14 29 17 1JO-05-04 1/2"X20 7/16"X20 O904 14 9.14 29 14 1JO-05-06 1/2"X20 9/16"Xl8 O906 14 10 30 17 1JO-05-08 1/2"X20 3/4"X16 O908 14 11.13 33 22 1JO-06 9/16"X18 9/16"X18 O906 14.1 10 30 17 1JO-06-04 9/16"X18 7/16"X20 O904 14.1 9.14 29 17 1JO-06-05 9/16"X18 1/2"X20 O905 14.1 9.14 29.5 17 1JO-06-08 9/16"X18 3/4"X16 O908 14.1 11.13 33 22 1JO-06-10 9/16"X18 7/8"X14 O910 14.1 12.7 37 27 1JO-06-12 9/16"X18 1.1/16"X12 O912 14.1 15.1 40 32 1JO-08 3/4"X16 3/4"X16 O908 16.7 11.13 36 22 1JO-08-04 3/4"X16 7/16"X20 O904 16.7 9.14 34 22 1JO-08-06 3/4"X16 9/16"Xl8 O906 16.7 10 35 22 1JO-08-10 3/4"X16 7/8"X14 O910 16.7 12.7 40 27 1JO-08-12 3/4"X16 1.1/16"X12 O912 16.7 15.1 43 32 1JO-08-14 3/4"X16 1.3/16"X12 O914 16.7 15.1 43 36 1JO-10 7/8"X14 7/8"X14 O910 19.3 12.7 42.5 27 1JO-10-08 7/8"X14 3/4"X16 O908 19.3 11.13 39 24 1JO-10-12 7/8"X14 1.1/16"X12 O912 19.3 15.1 45.5 32 1JO-10-14 7/8"X14 1.3/16"X12 O914 19.3 15.1 45.5 36 1JO-12 1.1/16"Xl2 1.1/16"X12 O912 21.9 15.1 48 32 1JO-12-08 1.1/16"Xl2 3/4"X16 O908 21.9 11.13 43 30 1JO-12-10 1.1/16"X12 7/8"X14 O910 21.9 12.7 45 30 1JO-12-14 1.1/16"X12 1.3/16"X12 O914 21.9 15.1 48 36 1JO-12-16 1.1/16"X12 1.5/16"X12 O916 21.9 15.1 48 38 1JO-14 1.3/16"X12 1.3/16"X12 O914 22.6 15.1 48.5 36 1JO-14-12 1.3/16"X12 1.1/16"X12 O912 22.6 15.1 48.5 32 1JO-14-16 1.3/16"X12 1.5/16"X12 O916 22.6 15.1 50.5 38 1JO-16 1.5/16"X12 1.5/16"X12 O916 23.1 15.1 49 38 1JO-16-12 1.5/16"X12 1.1/16"X12 O912 23.1 15.1 49.2 36 1JO-16-14 1.5/16"X12 1.3/16"X12 O914 23.1 15.1 49 36 1JO-16-20 1.5/16"X12 1.5/8"X12 O920 23.1 15.1 53 50 1JO-20 1.5/8"X12 1.5/8"X12 O920 24.3 15.1 54.5 50 1JO-20-16 1.5/8"X12 1.5/16"X12 O916 24.3 15.1 52.5 46 1JO-20-24 1.5/8"X12 1.7/8"X12 O924 24.3 15.1 54.5 55 1JO-24 1.7/8"X12 1.7/8"X12 O924 27.5 15.1 57.5 55 1JO-24-20 1.7/8"X12 1.5/8"X12 O920 27.5 15.1 57.5 50 1JO-24-32 1.7/8"X12 2.1/2"X11 O932 27.5 15.1 59.5 70 1JO-32 2.1/2"X11 2.1/2"X11 O932 33.9 15.1 66 70

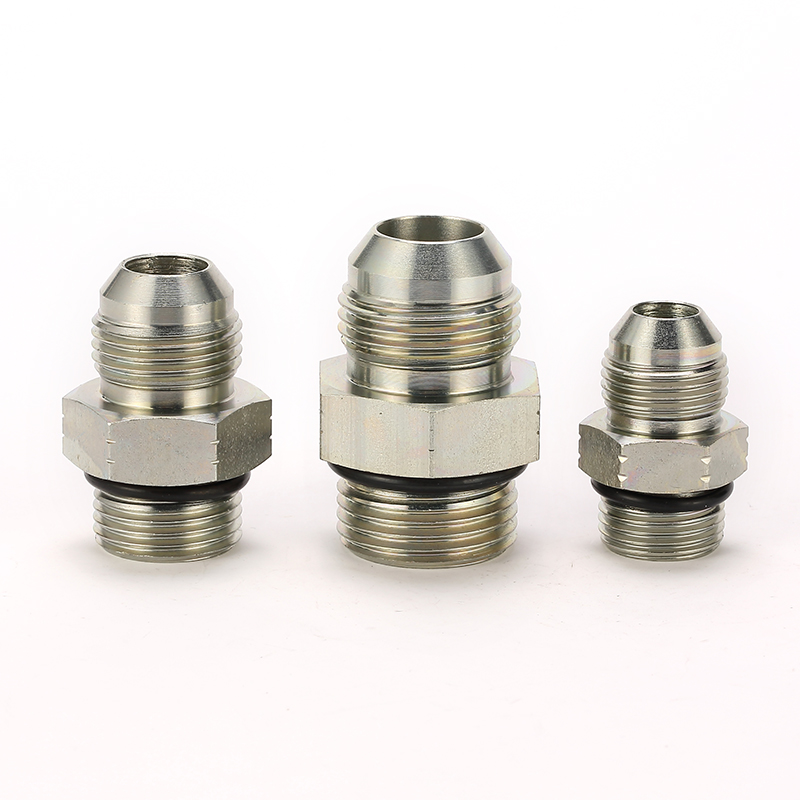

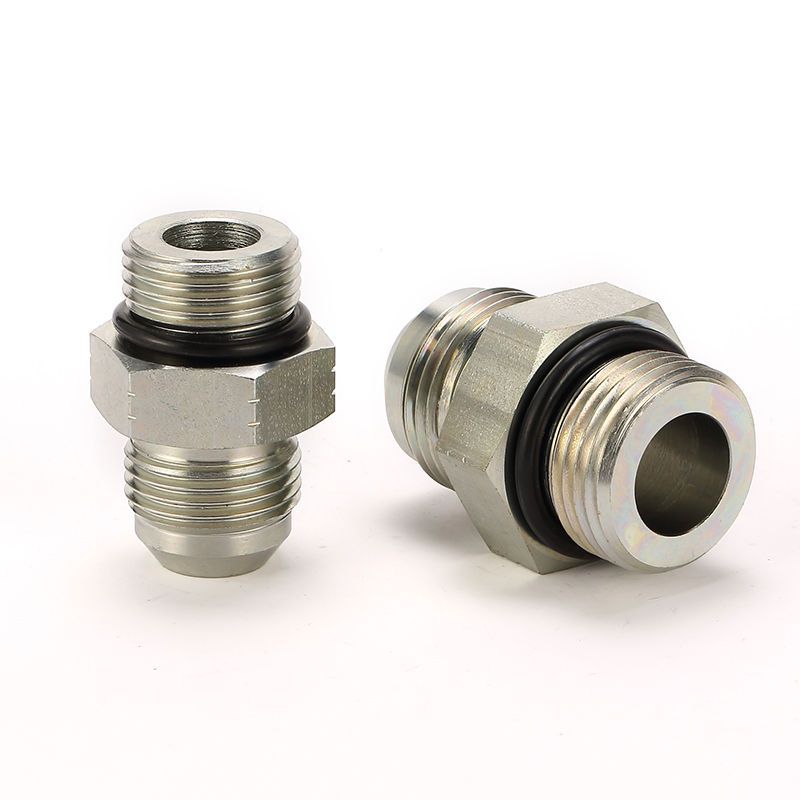

JIC MALE 74° CONE
PEHEL Hydraulic Model: P1JO
QTY:
