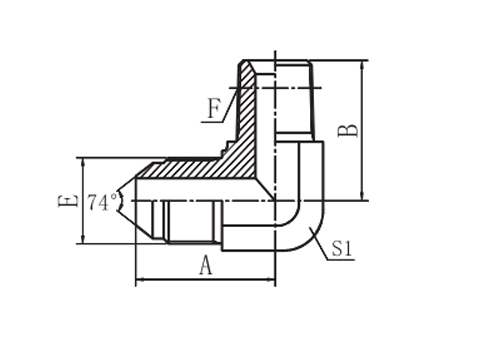

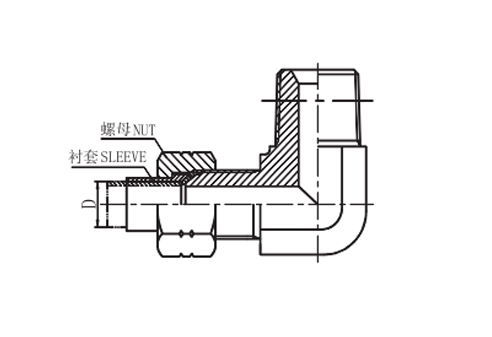

THREAD DIMENSIONS PART NO. E F A B S1 1JN9-02 5/16"X24 Z1/8"X27 21 21 11 1JN9-03-02 3/8"X24 Z1/8"X27 22 21 11 1JN9-04 7/16"x20 Z1/4"X18 26.6 25.5 14 1JN9-04-02 7/16"x20 Z1/8""x27 24.5 21 11 1JN9-04-06 7/16"x20 z3/8"x18 29.5 31 19 1JN9-05-02 1/2"x20 Z1/8"x27 26.6 23.5 14 1JN9-05-04 1/2"x20 Z1/4"x18 26.6 25.5 14 1JN9-05-06 1/2"x20 z3/8"x18 29.5 31 19 1JN9-06 9/16"x18 z3/8"X18 29 31 19 1JN9-06-04 9/16"X18 Z1/4"X18 26.9 25.5 14 1JN9-06-08 9/16"X18 z1/2"x14 32 36.7 22 1JN9-08 3/4"X16 z1/2"X14 34.8 37.3 22 1JN9-08-04 3/4"X16 Z1/4"X18 32 28.5 19 1JN9-08-06 3/4"X16 z3/8"X18 32 31 19 1JN9-08-12 3/4"X16 z3/4"X14 37.9 44 27 1JN9-10-06 7/8"X14 z3/8"x18 37.8 32.5 22 1JN9-10-08 7/8"X14 z1/2"x14 37.8 37.3 22 1JN9-10-12 7/8"X14 z3/4"X14 41 44 27 1JN9-10-16 7/8"X14 Z1"X11.5 44.5 50 33 1JN9-12 1.1/16"X12 z3/4"X14 44.2 44 27 1JN9-12-08 1.1/16"X12 Z1/2"X14 44.2 40 27 1JN9-12-16 1.1/16"X12 Z1"X11.5 49 50 33 1JN9-12-20 1.1/16"X12 Z1.1/4"X11.5 52.5 54.5 41 1JN9-14-12 1.3/16"×12 z3/4"X14 47.5 45 30 1JN9-14-16 1.3/16"X12 Z1"X11.5 48.5 50 33 1JN9-16 1.5/16"X12 Z1"X11.5 49 50 33 1JN9-16-12 1.5/16"X12 z3/4"X14 49 45.2 33 1JN9-16-20 1.5/16"X12 Z1.1/4"X11.5 54 60.5 41 1JN9-16-24 1.5/16"X12 z1.1/2"X11.5 58 63 48 1JN9-20 1.5/8"X12 z1.1/4"X11.5 55.5 54.5 41 1JN9-20-16 1.5/8"X12 Z1"X11.5 55.5 54.5 41 1JN9-20-24 1.5/8"X12 Z1.1/2"X11.5 59.4 63 48 1JN9-24 1.7/8"X12 Z1.1/2"X11.5 62.5 63 48 1JN9-24-20 1.7/8""X12 Z1.1/4"X11.5 62.5 63 48 1JN9-32-24 2.1/2"X12 z1.1/2"X11.5 75.4 67.5 63 1JN9-32 2.1/2"X12 Z2"X11.5 75.4 67.5 63

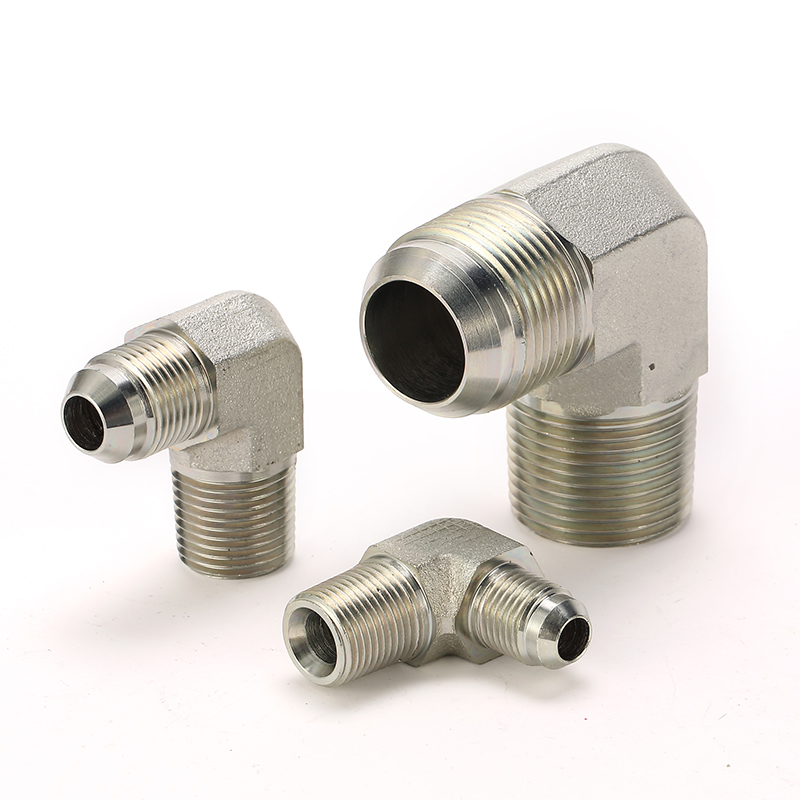

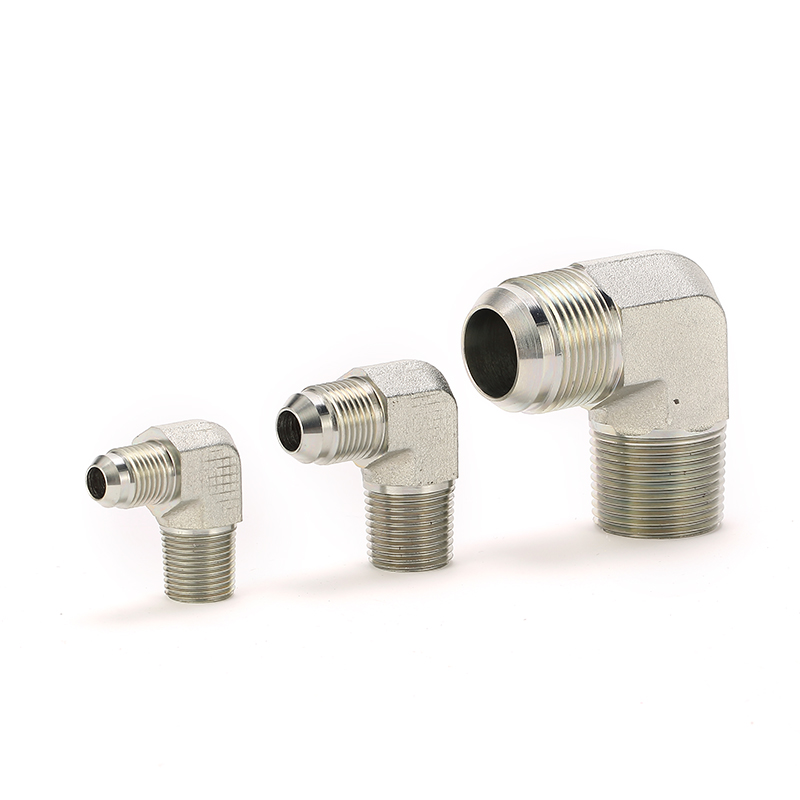

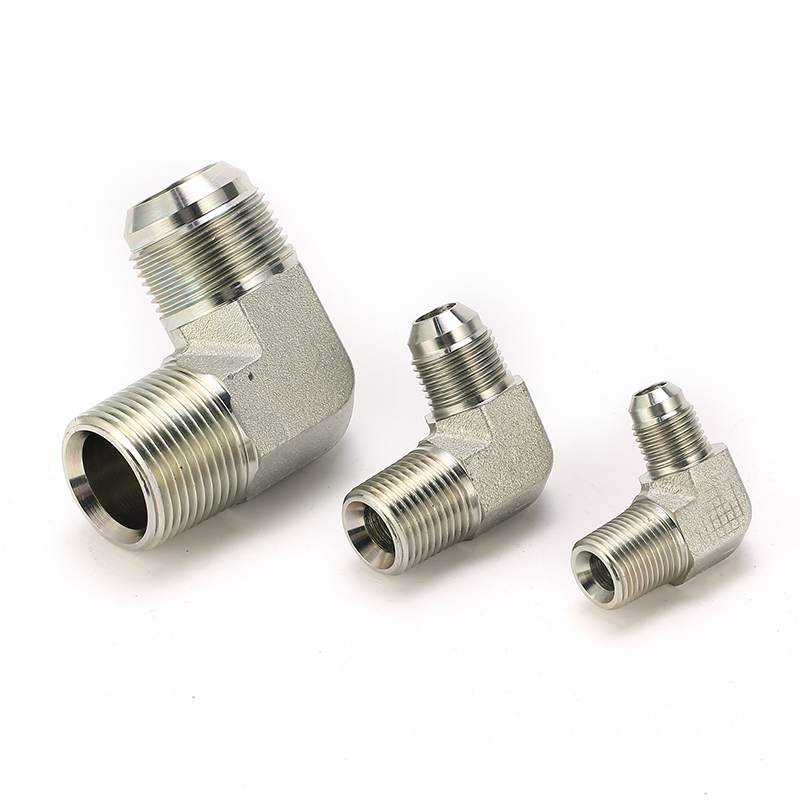

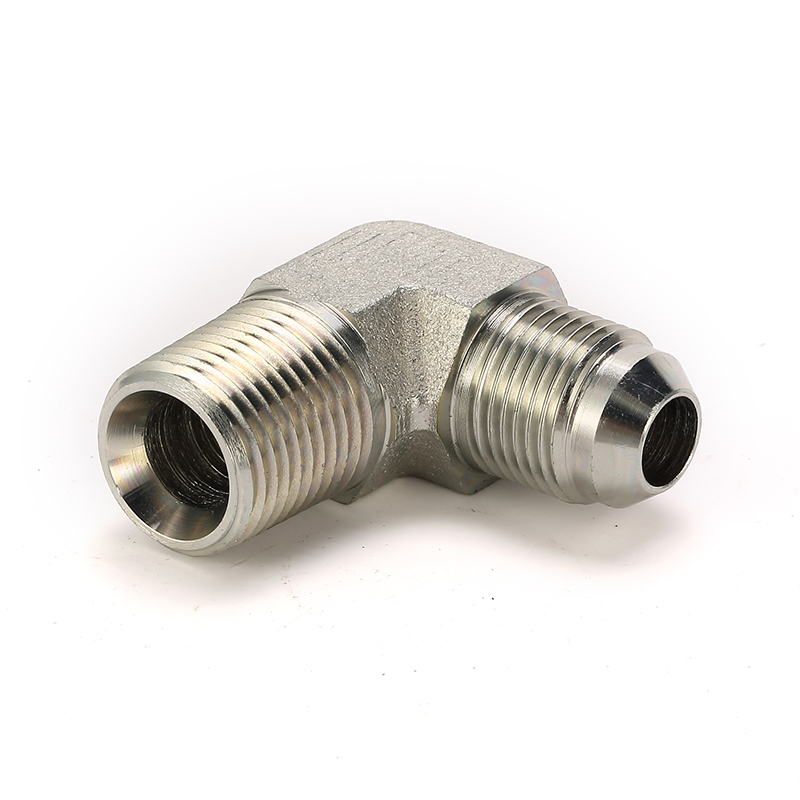

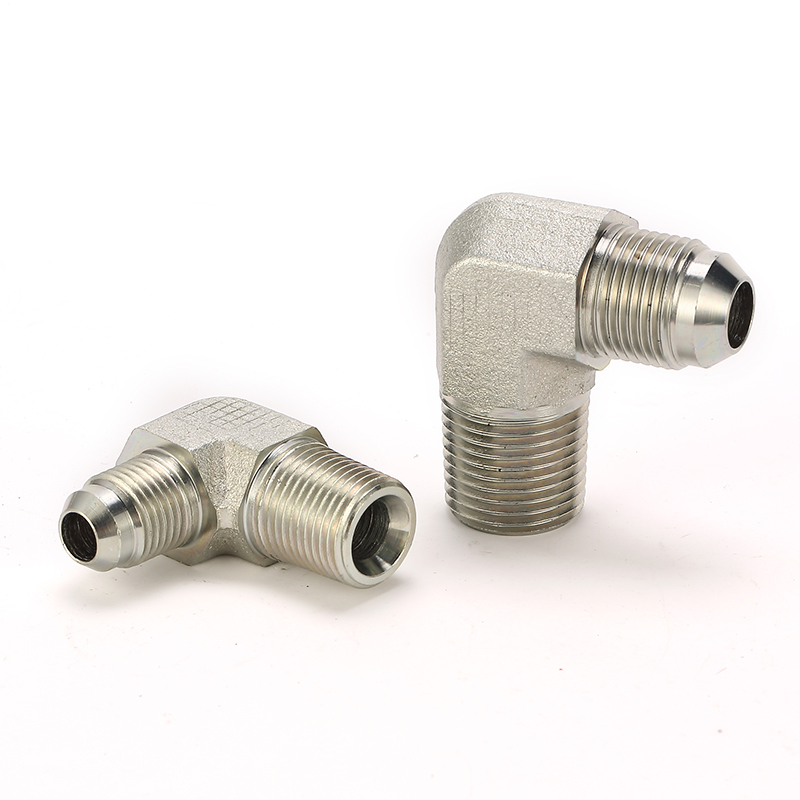

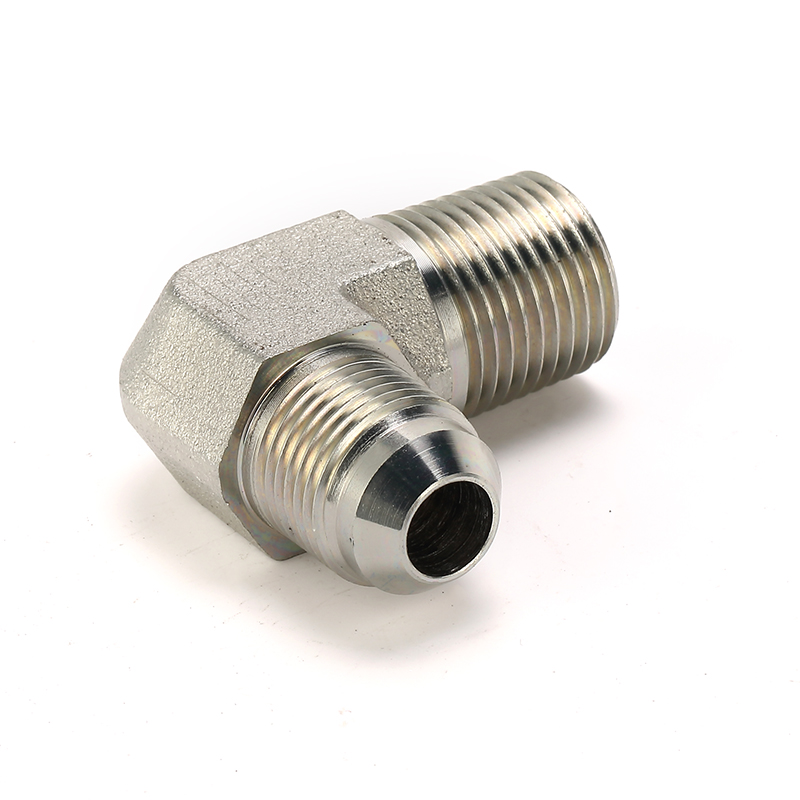

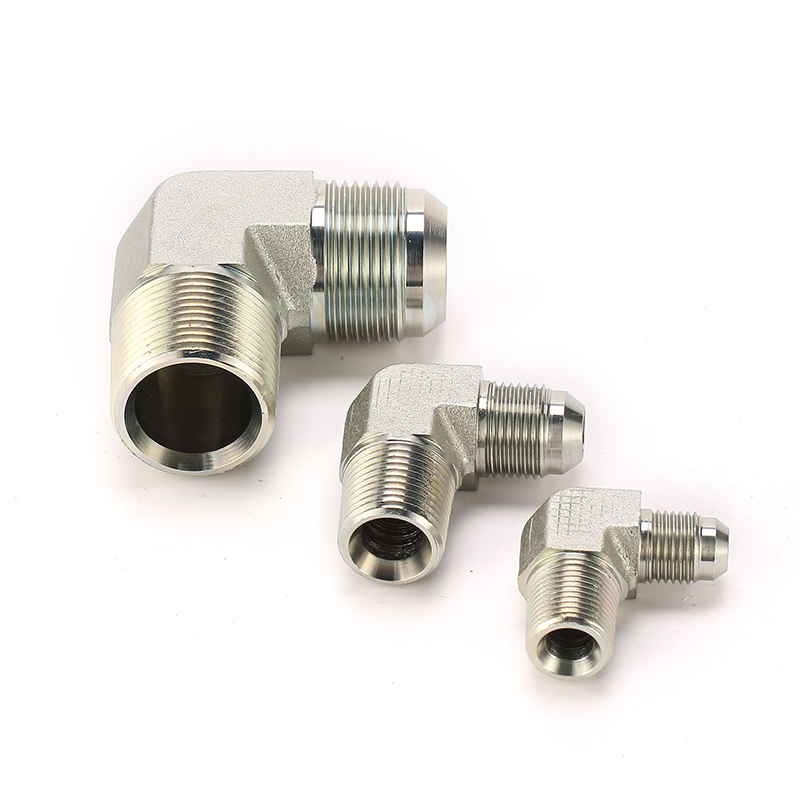

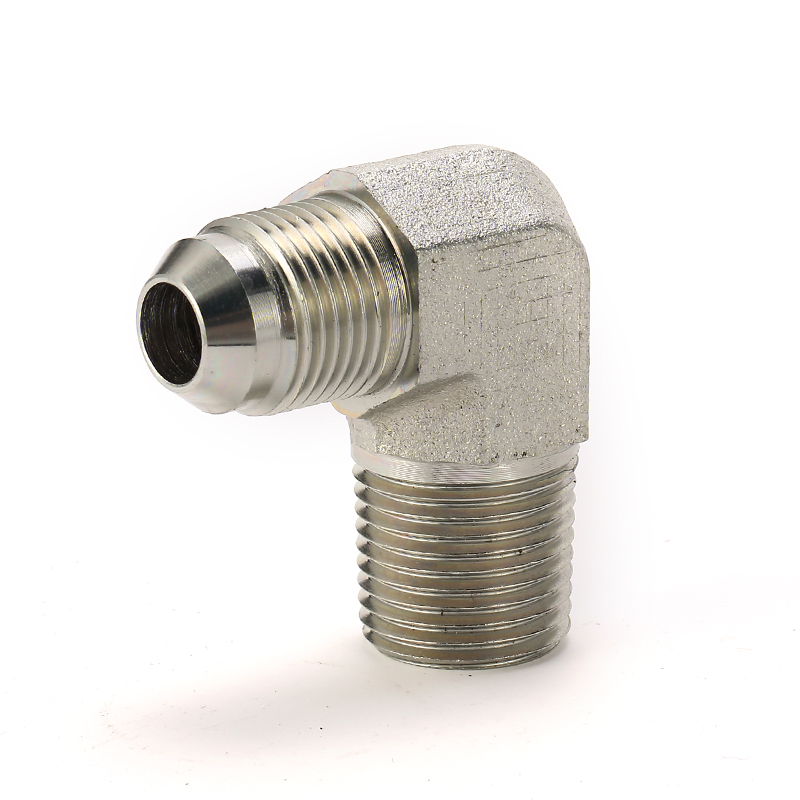

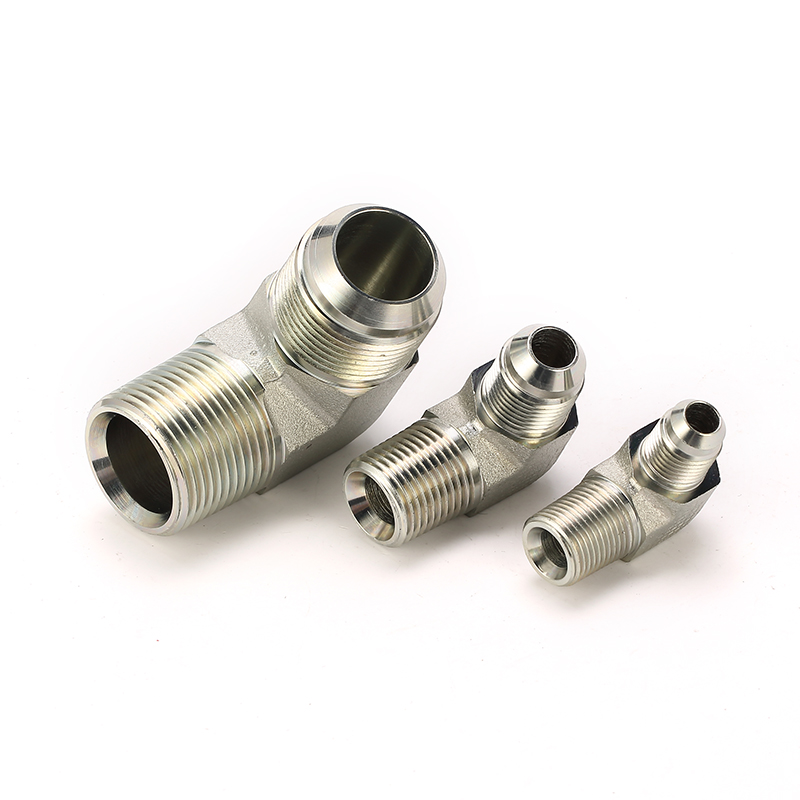

90° ELBOW JIC MALE 74°CONE / NPT MALE
PEHEL Hydraulic Model: P1JN9
QTY:
