PART NO. THREAD O-RING DIMENSIONS E F F A B S1 S2 1JH9-04-10OG 7/16"X20 M10X1 O08.1X1.6 24.5 27.5 11 14 1JH9-04-12OG 7/16"X20 M12X1.5 O09.3X2.4 24.5 30.3 11 17 1JH9-04-14OG 7/16"X20 M14X1.5 O11.3X2.4 26.6 32 14 19 1JH9-05-10OG 1/2"X20 M10X1 O08.1X1.6 26.5 28.5 14 14 1JH9-05-12OG 1/2"X20 M12X1.5 O09.3X2.4 26.5 32 14 17 1JH9-05-14OG 1/2"X20 M14X1.5 O11.3X2.4 26.5 32 14 19 1JH9-06-14OG 9/16"X18 M14X1.5 O11.3X2.4 26.9 32 14 19 1JH9-06-16OG 9/16"X18 M16X1.5 O13.3X2.4 28 34.8 16 22 1JH9-06-18OG 9/16"X18 M18X1.5 O15.3X2.4 30 37 19 24 1JH9-08-16OG 3/4"X16 M16X1.5 O13.3X2.4 32 38 19 22 1JH9-08-18OG 3/4"X16 M18X1.5 O15.3X2.4 33 38 19 24 1JH9-08-22OG 3/4"X16 M22X1.5 O19.3X2.4 34.8 40.2 22 27 1JH9-10-16OG 7/8"X14 M16X1.5 O13.3X2.4 38 38 22 22 1JH9-10-18OG 7/8"X14 M18X1.5 O15.3X2.4 38 39.5 22 24 1JH9-10-22OG 7/8"X14 M22X1.5 O19.3X2.4 38 42.5 22 27 1JH9-12-22OG 1.1/16"X12 M22X1.5 O19.3X2.4 45 44 27 27 1JH9-12-27OG 1.1/16"X12 M27X2 O23.5X3.0 44.2 48.5 27 32 1JH9-16-27OG 1.5/16"X12 M27X2 O23.5X3.0 49 52 33 32 1JH9-16-33OG 1.5/16"X12 M33X2 O29.5X3.0 49 52.5 33 41 1JH9-20-42OG 1.5/8"X12 M42X2 O38.5X3.0 55.5 57.2 41 50 1JH9-24-48OG 1.7/8"X12 M48X2 O44.5X3.0 62.5 62.5 48 55

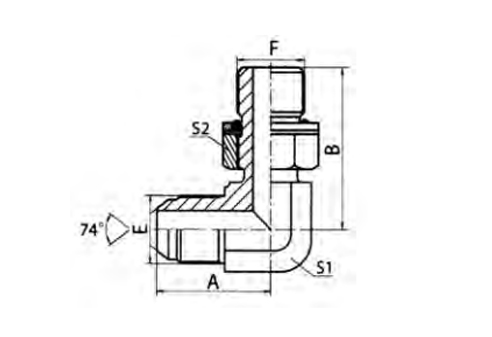

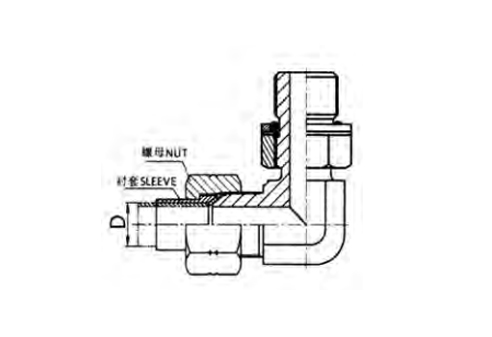

90° ELBOW JIC MALE 74° CONE
PEHEL Hydraulic Model: P1JH9-OG
