PART NO. THREAD O-RING DIMENSIONS E F F A B S1 S2 1JH4-04-10OG 7/16"X20 M10X1 O08.1X1.6 21.5 23.5 11 14 1JH4-04-12OG 7/16"X20 M12X1.5 O09.3X2.4 21.5 27.5 11 17 1JH4-04-14OG 7/16"X20 M14X1.5 O11.3X2.4 22.3 28.3 14 19 1JH4-05-12OG 1/2"X20 M12X1.5 O09.3X2.4 22.3 28.3 14 17 1JH4-05-14OG 1/2"X20 M14X1.5 O11.3X2.4 22.3 28.3 14 19 1JH4-06-14OG 9/16"X18 M14X1.5 O11.3X2.4 22.8 28.3 14 19 1JH4-06-16OG 9/16"X18 M16X1.5 O13.3X2.4 22 29 16 22 1JH4-08-16OG 3/4"X16 M16X1.5 O13.3X2.4 26.8 30 19 22 1JH4-08-18OG 3/4"X16 M18X1.5 O15.3X2.4 26.8 31 19 24 1JH4-10-16OG 7/8"X14 M16X1.5 O13.3X2.4 31 31 22 22 1JH4-10-18OG 7/8"X14 M18X1.5 O15.3X2.4 31 32 22 24 1JH4-10-22OG 7/8"X14 M22X1.5 O19.3X2.4 31 33 22 27 1JH4-12-22OG 1.1/16"X12 M22X1.5 O19.3X2.4 35.5 34.5 27 27 1JH4-12-27OG 1.1/16"X12 M27X2 O23.5X3.0 35.5 39.5 27 32 1JH4-16-27OG 1.5/16"X12 M27X2 O23.5X3.0 38.5 41 33 32 1JH4-16-33OG 1.5/16"X12 M33X2 O29.5X3.0 38.5 41.5 33 41 1JH4-20-42OG 1.5/8"X12 M42X2 O38.5X3.0 43 45 41 50 1JH4-24-48OG 1.7/8"X12 M48X2 O44.5X3.0 49 49.5 48 55

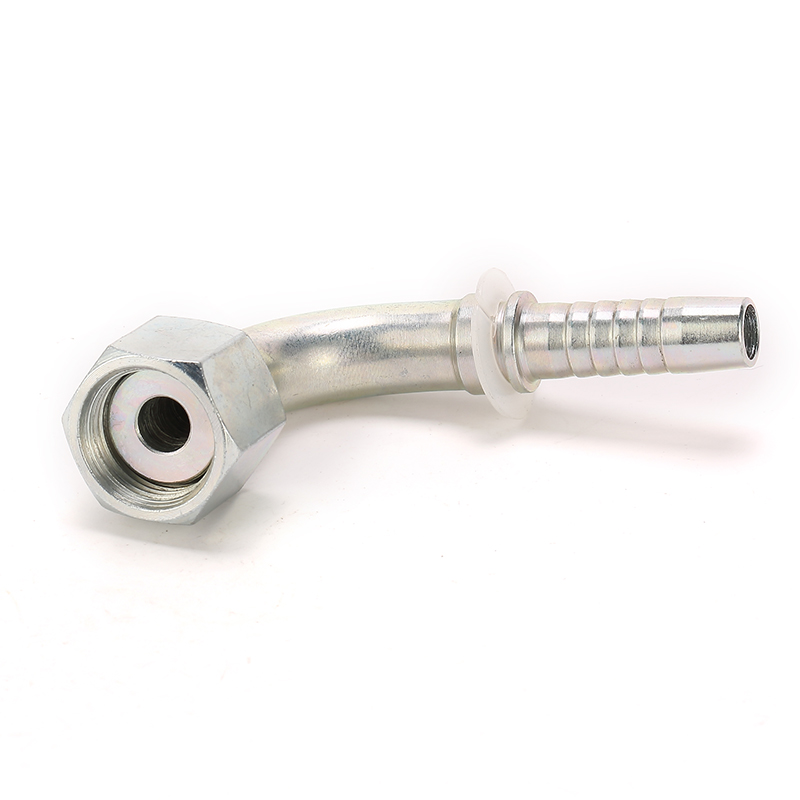

45° ELBOW JIC MALE74° CONE
PEHEL Hydraulic Model: P1JH4-OG
