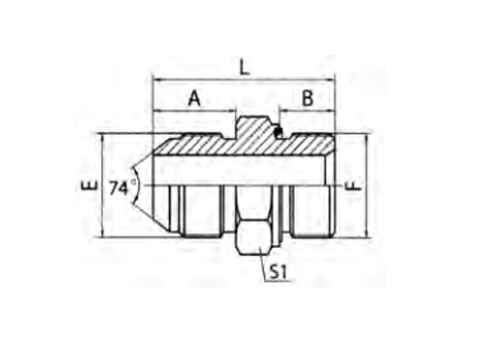

PART NO. THREAD CAPTIVE DIMENSIONS E F F A B L S1 1JB-04-02WD 7/16"X20 G1/8"X28 WD-B02 14 8 29.5 14 1JB-04WD 7/16"X20 G1/4"X19 WD-B04 14 12 34 19 1JB-04-06WD 7/16"X20 G3/8"X19 WD-B06 14 12 34.5 22 1JB-04-08WD 7/16"X20 G1/2"X14 WD-B08 14 14 41 27 1JB-05-04WD 1/2"X20 G1/4"X19 WD-B04 14 12 34 19 1JB-05-06WD 1/2"X20 G3/8"X19 WD-B06 14 12 34.5 22 1JB-06-02WD 9/16"X18 G1/8"X28 WD-B02 14.1 8 29.5 17 1JB-06-04WD 9/16"X18 G1/4"X19 WD-B04 14.1 12 34 19 1JB-06WD 9/16"X18 G3/8"X19 WD-B06 14.1 12 34.5 22 1JB-06-08WD 9/16"X18 G1/2"X14 WD-B08 14.1 14 41 27 1JB-08-04WD 3/4"X16 G1/4"X19 WD-B04 16.7 12 37 22 1JB-08-06WD 3/4"X16 G3/8"X19 WD-B06 16.7 12 37.5 22 1JB-08WD 3/4"X16 G1/2"X14 WD-B08 16.7 14 43.5 27 1JB-10-08WD 7/8"X14 G1/2"X14 WD-B08 19.3 14 46.5 27 1JB-10-12WD 7/8"X14 G3/4"X14 WD-B12 19.3 16 47.5 32 1JB-12-08WD 1.1/16"X12 G1/2"X14 WD-B08 21.9 14 48.5 30 1JB-12WD 1.1/16"X12 G3/4"X14 WD-B12 21.9 16 50 32 1JB-12-16WD 1.1/16"X12 G1"X11 WD-B16 21.9 18 56 41 1JB-16-12WD 1.5/16"X12 G3/4"X14 WD-B12 23.1 16 53 36 1JB-16WD 1.5/16"X12 G1"X11 WD-B16 23.1 18 57 41 1JB-16-20WD 1.5/16"X12 G1.1/4"X11 WD-B20 23.1 20 61 50 1JB-20-16WD 1.5/8"X12 G1"X11 WD-B16 24.3 18 58 46 1JB-20WD 1.5/8"X12 G1.1/4"X11 WD-B20 24.3 20 62 50 1JB-20-24WD 1.5/8"X12 G1.1/2"X11 WD-B24 24.3 22 64 55 1JB-24-20WD 1.7/8"X12 G1.1/4"X11 WD-B20 27.5 20 65.5 50 1JB-24WD 1.7/8"X12 G1.1/2"X11 WD-B24 27.5 22 67.5 55
JIC MALE 74° CONE / BSP MALE CAPTIVE SEAL
PEHEL Hydraulic Model: P1JB-WD
QTY:
