THREAD DIMENSIONS PART NO. E F A B L S1 1J-02 5/16"X24 5/16"X24 11.4 11.4 29 12 1J-02-03 5/16"X24 3/8"X24 11.4 12.2 29.5 12 1J-03 3/8""X24 3/8"X24 12.2 12.2 30.5 12 1J-04 7/16"x20 7/16"X20 14 14 34 12 1J-04-05 7/16"X20 1/2"x20 14 14 34 14 1J-04-06 7/16"X20 9/16"X18 14 14.1 34.1 17 1J-04-08 7/16"X20 3/4"X16 14 16.7 38.5 22 1J-05 1/2"x20 1/2"×20 14 14 34 14 1J-05-06 1/2""X20 9/16"X18 14 14.1 34.1 17 1J-05-08 1/2""X20 3/4"X16 14 16.7 38.5 22 1J-05-10 1/2""×20 7/8"X14 14 19.3 41 24 1J-06 9/16"X18 9/16"X18 14.1 14.1 34.2 17 1J-06-08 9/16"X18 3/4"X16 14.1 16.7 38.5 22 1J-06-10 9/16"X18 7/8"X14 14.1 19.3 41.5 24 1J-06-12 9/16"X18 1.1/16""X12 14.1 21.9 46 30 1J-08 3/4""X16 3/4"X16 16.7 16.7 42 22 1J-08-10 3/4"X16 7/8""X14 16.7 19.3 44 24 1J-08-12 3/4""×16 1.1/16""X12 16.7 21.9 48.5 30 1J-08-16 3/4""X16 1.5/16"X12 16.7 23.1 51 36 1J-10 7/8""X14 7/8""×14 19.3 19.3 46.5 24 1J-10-12 7/8""×14 1.1/16""X12 19.3 21.9 51 30 1J-10-16 7/8""X14 1.5/16"X12 19.3 23.1 53.5 36 1J-12 1.1/16"X12 1.1/16""×12 21.9 21.9 54 30 1J-12-14 1.1/16"X12 1.3/16"X12 21.9 22.6 55.5 32 1J-12-16 1.1/16"X12 1.5/16""X12 21.9 23.1 56 36 1J-14 1.3/16"X12 1.3/16"X12 22.6 22.6 56 32 1J-14-16 1.3/16""X12 1.5/16"X12 22.6 23.1 56.5 36 1J-16 1.5/16"X12 1.5/16""X12 23.1 23.1 57 36 1J-16-20 1.5/16"X12 1.5/8"X12 23.1 24.3 60.5 46 1J-16-24 1.5/16""X12 1.7/8"X12 23.1 27.5 65.5 50 1J-20 1.5/8"X12 1.5/8"X12 24.3 24.3 62 46 1J-20-24 1.5/8"X12 1.7/8"X12 24.3 27.5 67 50 1J-20-32 1.5/8"X12 2.1/2"X12 24.3 33.9 75 65 1J-24 1.7/8"X12 1.7/8"X12 27.5 27.5 70 50 1J-24-32 1.7/8"X12 2.1/2"X12 27.5 33.9 78.5 65 1J-32 2.1/2"×12 2.1/2"X12 33.9 33.9 85 65

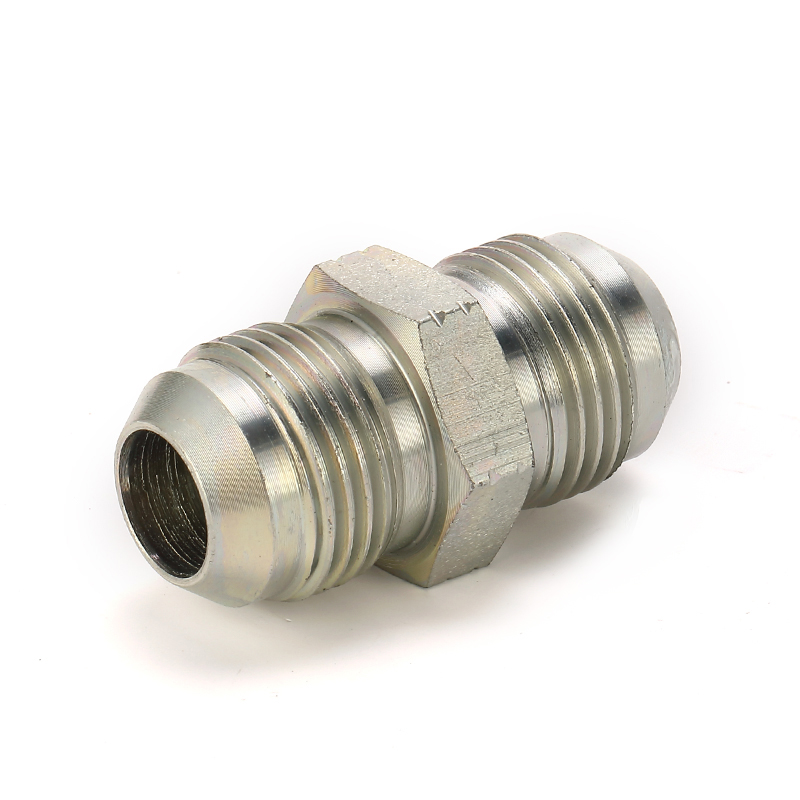

JIC MALE 74°CONE
PEHEL Hydraulic Model: P1J
