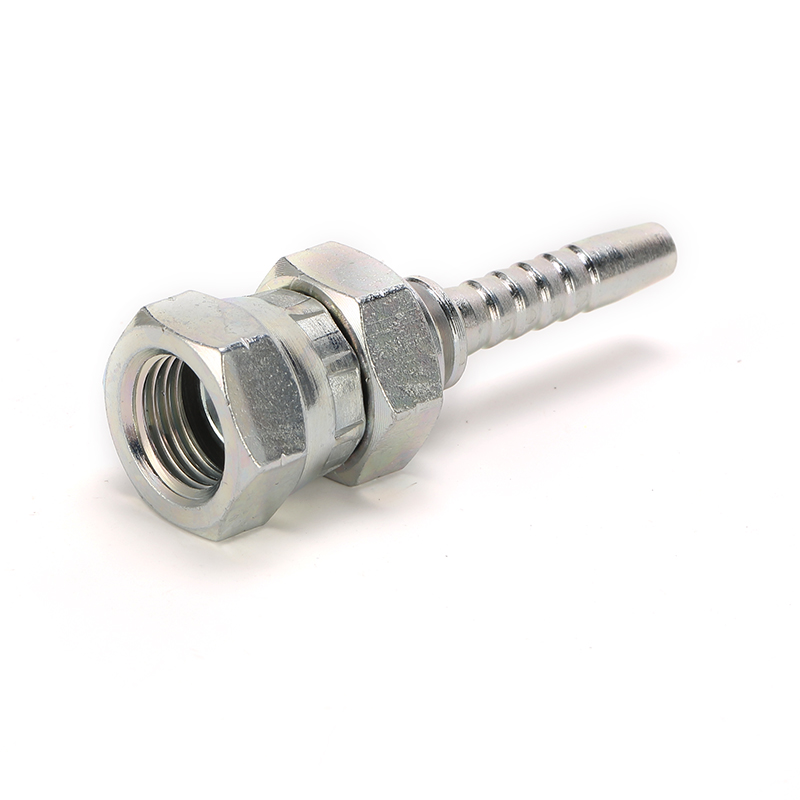

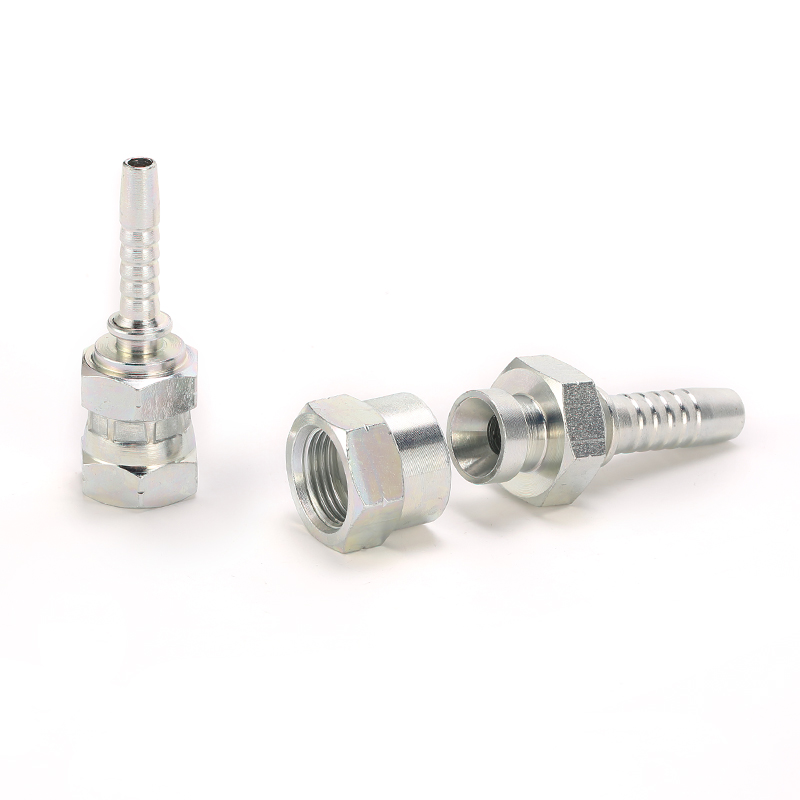

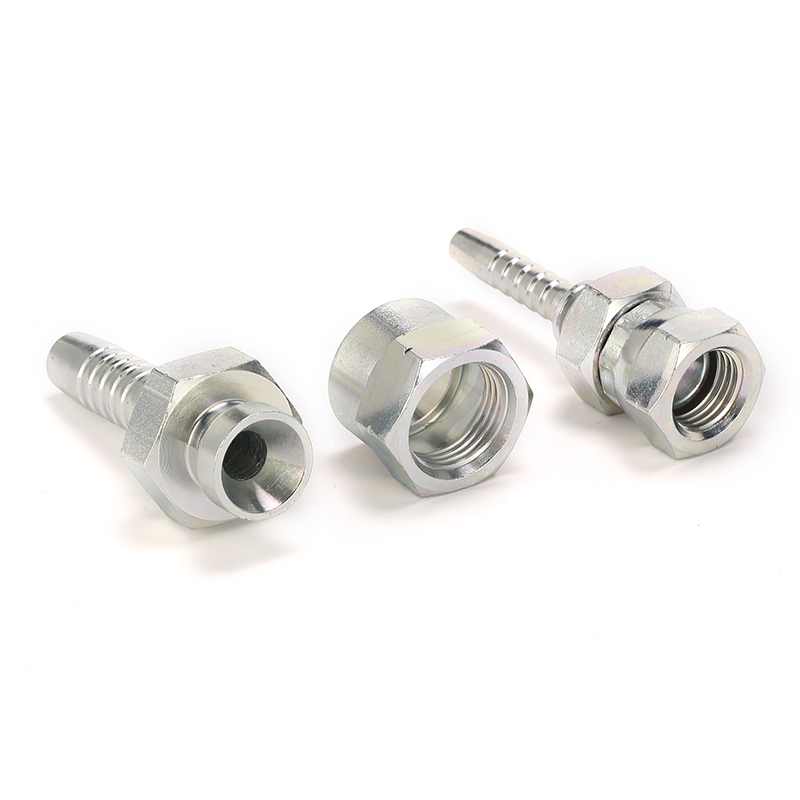

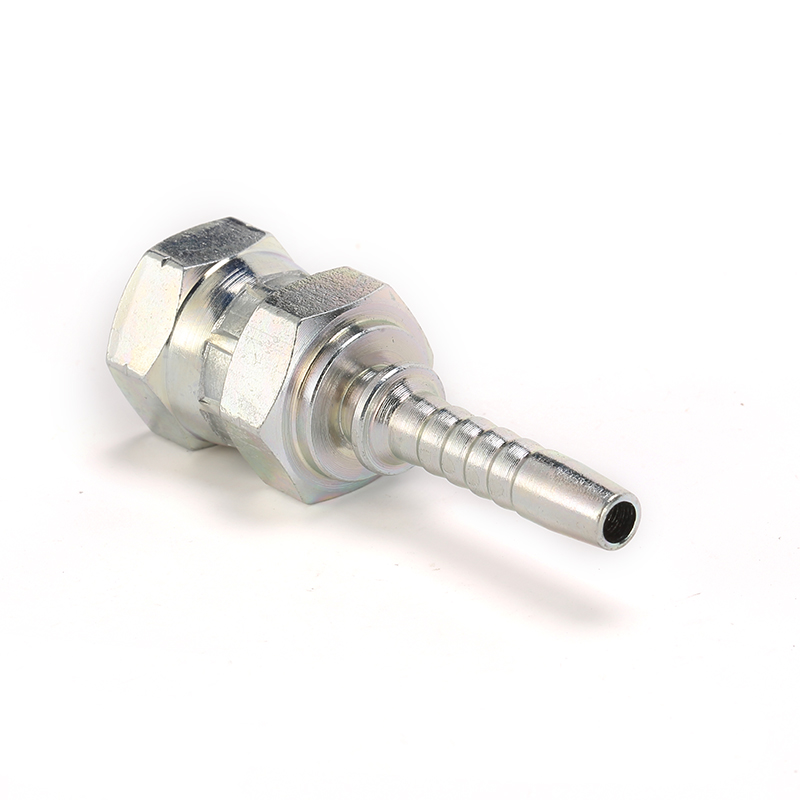

JIS Gas Female 60° Cone Seat

PEHEL Hydraulic Model: P29611D

QTY:

BSP Female 60° Cone Fittings

  • You May Also Like

  • PART NO. THREAD E HOSE BORE DIMENSIONS
    DN DASH A C S1 S2
    29611D-02-03 G1/8"X28 5 03 20 7 14 14
    29611D-04-04 G1/4"X19 6 04 22.5 9 19 19
    29611D-04-05 G1/4"X19 8 05 21 9 19 19
    29611D-06-04 G3/8"X19 6 04 25 9.5 22 22
    29611D-06-06 G3/8"X19 10 06 25 9.5 22 22
    29611D-08-06 G1/2"X14 10 06 26 11.3 27 27
    29611D-08-08 G1/2"X14 12 08 26.5 11.3 27 27
    29611D-10-10 G5/8"X14 16 10 29 12 30 30
    29611D-12-10 G3/4"X14 16 10 29 13 32 32
    29611D-12-12 G3/4"X14 20 12 29.5 13 32 32
    29611D-16-16 G1"X11 25 16 34.7 14 41 40
    29611D-20-20 G1.1/4"X11 32 20 40 15.5 50 50
    29611D-24-24 G1.1/2"X11 40 24 40.5 17.5 55 55
    29611D-32-32 G2"X11 50 32 45 24 70 70
    NOTE:1.For use with braided hoses.                   2.If use with spiral hoses,hose fitting series number is 29612-XX-XX
