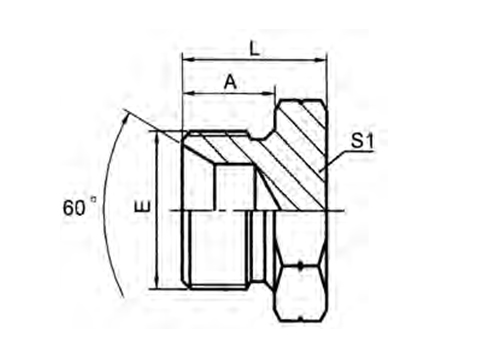

THREAD DIMENSIONS PART NO. E A L S1 4B-02 G1/8"X28 10 16 14 4B-04 G1/4"X19 12 18 19 4B-06 G3/8"X19 13.5 21.5 22 4B-08 G1/2"X14 16 26 27 4B-10 G5/8"X14 17.5 27.5 30 4B-12 G3/4"X14 18.5 29.5 32 4B-16 G1"X11 20.5 34 41 4B-20 G1.1/4"X11 20.5 37.5 50 4B-24 G1.1/2"X11 23 40 55 4B-32 G2"X11 25.5 43.5 70

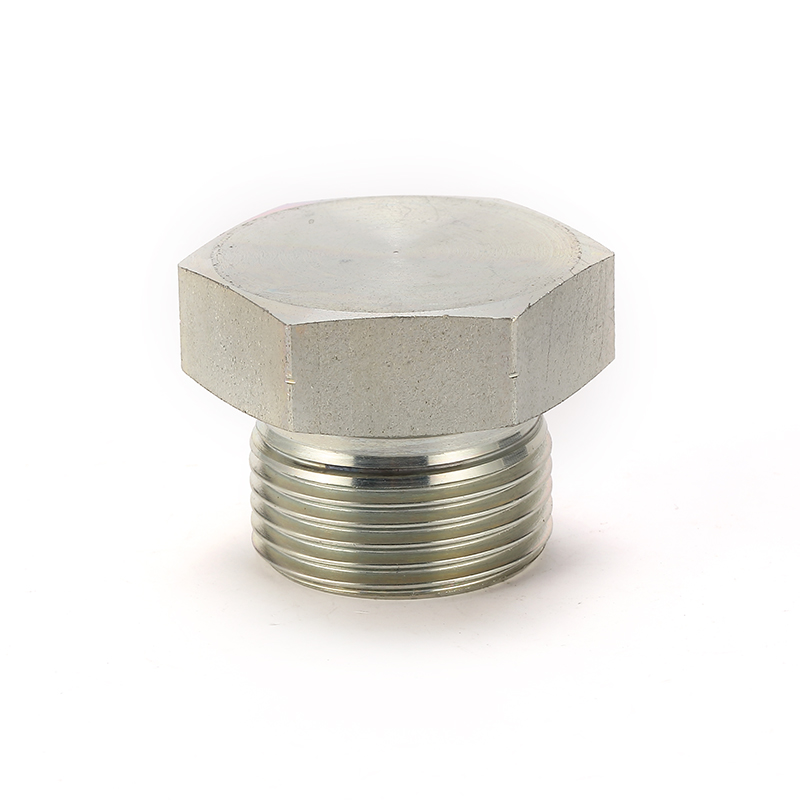

BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL PLUG
PEHEL Hydraulic Model: P4B
QTY:
Fetures:
Trivalent Coated Carbon Steel，BSP (British Standard Pipe) is a common thread outside North America. BSPT (T = Tapered) tapers down while BSPP (P = Parallel) is a straight thread.
