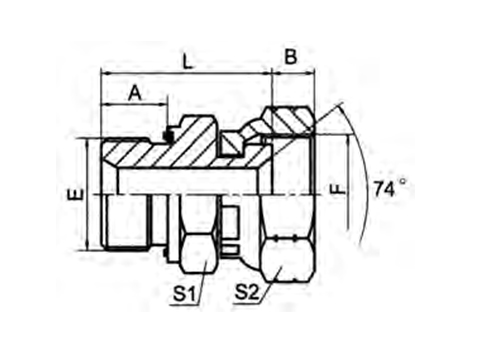

THREAD CAPTIVE DIMENSIONS PART NO. E F E A B L S1 S2 2BJ-02-04WD G1/8"X28 7/16"X20 WD-B02 8 9.5 23.5 14 17 2BJ-04-05WD G1/4"X19 1/2"X20 WD-B04 12 9 28.5 19 19 2BJ-04-06WD G1/4"X19 9/16"X18 WD-B04 12 9.5 28.5 19 19 2BJ-04-08WD G1/4"X19 3/4"X16 WD-B04 12 10.8 30.5 19 24 2BJ-04WD G1/4"X19 7/16"X20 WD-B04 12 9.5 28 19 17 2BJ-06-08WD G3/8"X19 3/4"X16 WD-B06 12 10.8 33 22 24 2BJ-06WD G3/8"X19 9/16"X18 WD-B06 12 9.5 31 22 19 2BJ-08-06WD G1/2"X14 9/16"X18 WD-B08 14 9.5 33.5 27 19 2BJ-08-10WD G1/2"X14 7/8"X14 WD-B08 14 12 38 27 27 2BJ-08WD G1/2"X14 3/4"X16 WD-B08 14 10.8 37.5 27 24 2BJ-12-16WD G3/4"X14 1.5/16"X12 WD-B12 16 14 42.5 32 41 2BJ-12WD G3/4"X14 1.1/16”X12 WD-B12 16 13 42.5 32 32 2BJ-16WD G1"X11 1.5/16"X12 WD-B16 18 14 46.5 41 41 2BJ-20-16WD G1.1/4"X11 1.5/16"X12 WD-B20 20 14 50.5 50 41 2BJ-20WD G1.1/4"X11 1.5/8"X12 WD-B20 20 15 54.5 50 50 2BJ-24WD G1.1/2"X11 1.7/8"X12 WD-B24 22 19 58.5 55 55
BSP MALE CAPTIVE SEAL/ JIC FEMAL E 74° SEAT
PEHEL Hydraulic Model: P2BJ-WD
QTY:
