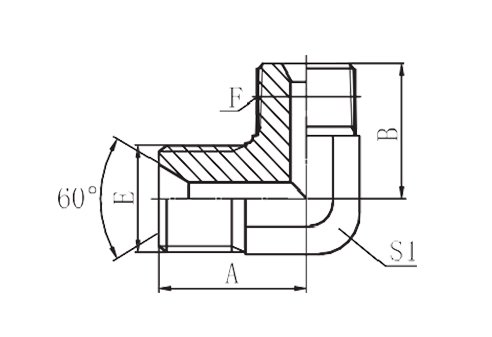

THREAD DIMENSIONS PART NO. E F A B S1 1BT9-02SP G1/8"X28 R1/8"X28 19.8 21 11 1BT9-02-04SP G1/8"X28 R1/4"X19 22.3 25.5 14 1BT9-04SP G1/4"X19 R1/4"X19 25 26 14 1BT9-04-02SP G1/4"X19 R1/8"X28 24.5 23.5 14 1BT9-04-06SP G1/4"X19 R3/8"X19 25 28.5 16 1BT9-04-08SP G1/4"X19 R1/2"X14 30 36 22 1BT9-06SP G3/8"X19 R3/8"X19 27.5 28.5 16 1BT9-06-04SP G3/8"X19 R1/4"X19 27.5 26.5 16 1BT9-06-08SP G3/8"X19 R1/2"X14 31 36 22 1BT9-08SP G1/2"X14 R1/2"X14 34.5 36 22 1BT9-08-04SP G1/2"X14 R1/4"X19 34.5 30.5 22 1BT9-08-06SP G1/2"X14 R3/8"X19 34.5 32.5 22 1BT9-08-12SP G1/2"X14 R3/4"X14 37.5 43.5 27 1BT9-08-16SP G1/2"X14 R1"X11 41 50 33 1BT9-10-08SP G5/8"X14 R1/2"X14 35 36 22 1BT9-10-12SP G5/8"X14 R3/4"X14 39 43.5 27 1BT9-12SP G3/4"X14 R3/4"X14 40 43 27 1BT9-12-06SP G3/4"X14 R3/8"X19 40 36 27 1BT9-12-08SP G3/4"X14 R1/2"X14 40 39.5 27 1BT9-12-16SP G3/4"X14 R1"X11 43.5 50 33 1BT9-12-20SP G3/4"X14 R1.1/4"X11 48 56.5 41 1BT9-16SP G1"X11 R1"X11 46 50 33 1BT9-16-08SP G1"X11 R1/2"X14 46 43 33 1BT9-16-12SP G1"X11 R3/4"X14 46 47.5 33 1BT9-16-20SP G1"X11 R1.1/4"X11 50.5 56.5 41 1BT9-20SP G1.1/4"X11 R1.1/4"X11 52 59 41 1BT9-20-12SP G1.1/4"X11 R3/4"X14 50.5 52 41 1BT9-20-16SP G1.1/4"X11 R1"X11 50.5 56.5 41 1BT9-20-24SP G1.1/4"X11 R1.1/2"X11 54.5 62.5 48 1BT9-24SP G1.1/2"X11 R1.1/2"X11 57.5 62.5 48 1BT9-24-20SP G1.1/2"X11 R1.1/4"X11 57.5 62 48 1BT9-24-32SP G1.1/2"X11 R2"X11 65 75 63 1BT9-32SP G2"X11 R2"X11 67 75 63 1BT9-32-24SP G2"X11 R1.1/2"X11 67 72 63
90° ELBOW BSP MALE 60° SEAT
PEHEL Hydraulic Model: P1BT9-SP
QTY:
