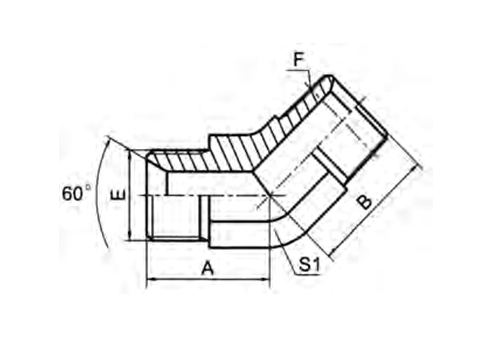

THREAD DIMENSIONS PART NO. E F A B S1 1BT4-02SP G1/8"X28 R1/8"X28 17 17 11 1BT4-04SP G1/4"X19 R1/4"X19 20.3 21 14 1BT4-04-06SP G1/4"X19 R3/8"X19 20.5 23 16 1BT4-06SP G3/8"X19 R3/8"X19 22 23 16 1BT4-06-04SP G3/8"X19 R1/4"X19 22 24 16 1BT4-06-08SP G3/8"X19 R1/2"X14 24 29.5 22 1BT4-06-12SP G3/8"X19 R3/4"X14 25.5 30.5 27 1BT4-08SP G1/2"X14 R1/2"X14 27 29.5 22 1BT4-08-06SP G1/2"X14 R3/8"X19 27 25 22 1BT4-08-12SP G1/2"X14 R3/4"X14 28.5 30.5 27 1BT4-10-08SP G5/8"X14 R1/2"X14 28.5 29.5 22 1BT4-10-12SP G5/8"X14 R3/4"X14 29 35 27 1BT4-12SP G3/4"X14 R3/4"X14 31 30.5 27 1BT4-12-08SP G3/4"X14 R1/2"X14 31 30.5 27 1BT4-12-16SP G3/4"X14 R1"X11 32.5 38 33 1BT4-16SP G1"X11 R1"X11 35 38 33 1BT4-16-12SP G1"X11 R3/4"X14 35 32.5 33 1BT4-16-20SP G1"X11 R1.1/4"X11 38.5 43 41 1BT4-20SP G1.1/4"X11 R1.1/4"X11 38.5 43 41 1BT4-20-16SP G1.1/4"X11 R1"X11 38.5 42 41 1BT4-20-24SP G1.1/4"X11 R1.1/2"X11 41.5 47.5 48 1BT4-24SP G1.1/2"X11 R1.1/2"X11 44 47.5 48 1BT4-24-20SP G1.1/2"X11 R1.1/4"X11 44 45.5 48 1BT4-24-32SP G1.1/2"X11 R2"X11 51 60.5 63 1BT4-32SP G2"X11 R2"X11 49.5 55.5 63 1BT4-32-24SP G2"X11 R1.1/2"X11 51 52.5 63
45° ELBOW BSP MALE 60° SEAT
PEHEL Hydraulic Model: P1BT4-SP
