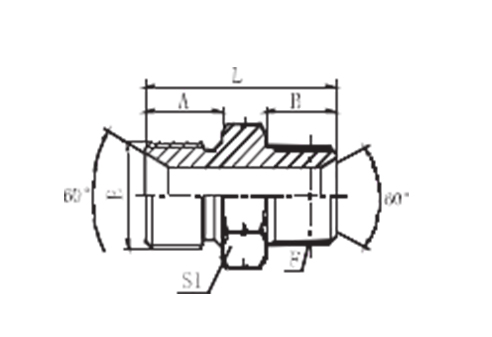

THREAD DIMENSIONS PART NO. E F A B L S1 1BT-02SP G1/8"X28 R1/8""X28 10 10 26 14 1BT-02-04SP G1/8"X28 R1/4"X19 10 14.5 30.5 14 1BT-04SP G1/4"X19 R1/4"X19 12 14.5 32 19 1BT-04-02SP G1/4"×19 R1/8"X28 12 10 28 19 1BT-04-06SP G1/4"X19 R3/8"X19 12 15 32 19 1BT-04-08SP G1/4"X19 R1/2"X14 12 20 40 24 1BT-06SP G3/8"×19 R3/8""X19 13.5 15 35.5 22 1BT-06-04SP G3/8"×19 R1/4"X19 13.5 14.5 35.5 22 1BT-06-08SP G3/8"x19 R1/2""X14 13.5 20 40.5 24 1BT-08SP G1/2"X14 R1/2"X14 16 20 45 27 1BT-08-04SP G1/2"X14 R1/4"X19 16 14.5 40.5 27 1BT-08-06SP G1/2"×14 R3/8""X19 16 15 40.5 27 1BT-08-12SP G1/2"X14 R3/4"X14 16 20 45 30 1BT-10-06SP G5/8"×14 R3/8"X19 17.5 15 41.5 30 1BT-10-08SP G5/8"X14 R1/2"X14 17.5 20 46.5 30 1BT-10-12SP G5/8"X14 R3/4"×14 17.5 20 46.5 30 1BT-10-16SP G5/8"X14 R1"X11 17.5 25.5 53 36 1BT-12SP G3/4"X14 R3/4"X14 18.5 20 48.5 32 1BT-12-08SP G3/4"X14 R1/2"X14 18.5 20 49.5 32 1BT-12-16SP G3/4"X14 R1"X11 18.5 25.5 53.5 36 1BT-12-20SP G3/4"X14 R1.1/4"X11 18.5 26.5 58 46 1BT-16SP G1"X11 R1"X11 20.5 25.5 58 41 1BT-16-12SP G1"X11 R3/4"X14 20.5 20 53 41 1BT-16-20SP G1"X11 R1.1/4"X11 20.5 26.5 60 46 1BT-20SP G1.1/4"X11 R1.1/4"×11 20.5 26.5 62 50 1BT-20-12SP G1.1/4"X11 R3/4"X14 20.5 20 55.5 50 1BT-20-16SP G1.1/4"X11 R1"X11 20.5 25.5 61 50 1BT-20-24SP G1.1/4"X11 R1.1/2"×11 20.5 26.5 62 50 1BT-24SP G1.1/2"x11 R1.1/2"X11 23 26.5 64.5 55 1BT-24-16SP G1.1/2"X11 R1"X11 23 25.5 63.5 55 1BT-24-20SP G1.1/2"X11 R1.1/4"X11 23 26.5 64.5 55 1BT-24-32SP G1.1/2"X11 R2"X11 23 30 70 65 1BT-32SP G2"x11 R2"X11 25.5 30 72.5 70 1BT-32-20SP G2"x11 R1.1/4"X11 25.5 26.5 68.5 70 1BT-32-24SP G2""x11 R1.1/2"X11 25.5 26.5 68.5 70 1BT-40SP G2.1/2"x11 R2.1/2"X11 32 35 84 90 1BT-48SP G3"x11 G3"x11 36 38 94 100
BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL
PEHEL Hydraulic Model: P1BT-SP
QTY:
