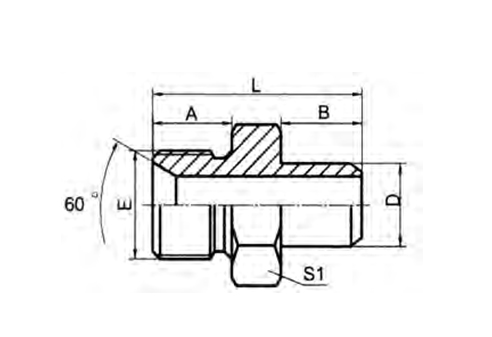

THREAD O-RING DIMENSIONS PART NO. E F F A B L S1 1BO-04 G1/4"X19 7/16"X20 O904 12 9.14 29 19 1BO-04-05 G1/4"X19 1/2"X20 O905 12 9.14 29 19 1BO-04-06 G1/4"X19 9/16"X18 O906 12 9.93 30 19 1BO-04-08 G1/4"X19 3/4"X16 O908 12 11.13 31 22 1BO-06 G3/8"X19 9/16"X18 O906 13.5 9.9 33.5 22 1BO-06-04 G3/8"X19 7/16"X20 O904 13.5 9.14 33 22 1BO-06-08 G3/8"X19 3/4"X16 O908 13.5 11.13 32.5 22 1BO-06-10 G3/8"X19 7/8"X14 O910 13.5 12.7 36 27 1BO-08 G1/2"X14 3/4"X16 O908 16 11.13 37 27 1BO-08-06 G1/2"X14 9/16"X18 O906 16 9.93 36 27 1BO-08-10 G1/2"X14 7/8"X14 O910 16 12.7 38.5 27 1BO-08-12 G1/2"X14 1.1/16"X12 O912 16 15.1 42 32 1BO-10 G5/8"X14 7/8"X14 O910 17.5 12.7 43 30 1BO-10-08 G5/8"X14 3/4"X16 O908 17.5 11.13 41.5 30 1BO-10-12 G5/8"X14 1.1/16"X12 O912 17.5 15.1 43.5 32 1BO-12 G3/4"X14 1.1/16"X12 O912 18.5 15.1 44.5 32 1BO-12-08 G3/4"X14 3/4"X16 O908 18.5 11.13 40.5 32 1BO-12-10 G3/4"X14 7/8"X14 O910 18.5 12.7 42 32 1BO-12-14 G3/4"X14 1.3/16"X12 O914 18.5 15.1 44.5 36 1BO-12-16 G3/4"X14 1.5/16"X12 O916 18.5 15.1 44.5 38 1BO-16 G1"X11 1.5/16"X12 O916 20.5 15.1 48.5 41 1BO-16-10 G1"X11 7/8"X14 O910 20.5 12.7 49.5 41 1BO-16-12 G1"X11 1.1/16"X12 O912 20.5 15.1 51.5 41 1BO-16-14 G1"X11 1.3/6"X12 O914 20.5 15.1 51.5 41 1BO-16-20 G1"X11 1.5/8"X12 O920 20.5 15.1 51.5 50 1BO-20 G1.1/4"X11 1.5/8"X12 O920 20.5 15.1 51.5 50 1BO-20-16 G1.1/4"X11 1.5/16"X12 O916 20.5 15.1 51.5 50 1BO-24 G1.1/2"X11 1.7/8"X12 O924 23 15.1 53 55
BSP MAL EDOUBLE USE FOR 60° SEAT OR BONDED SEAL
PEHEL Hydraulic Model: P1BO
QTY:
