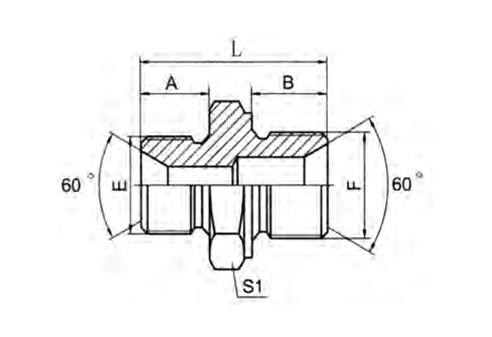

THREAD DIMENSIONS PART NO. E F A B L S1 1BM-02-10 G1/8"X28 M10X1 10 8 25 14 1BM-02-12 G1/8"X28 M12X1.5 10 10 27 17 1BM-04-12 G1/4"X19 M12X1.5 12 10 29 19 1BM-04-14 G1/4"X19 M14X1.5 12 11 30 19 1BM-04-16 G1/4"X19 M16X1.5 12 12 33 22 1BM-04-18 G1/4"X19 M18X1.5 12 12 33 24 1BM-06-10 G3/8"X19 M10X1 13.5 8 29.5 22 1BM-06-12 G3/8"X19 M12X1.5 13.5 10 31.5 22 1BM-06-14 G3/8"X19 M14X1.5 13.5 11 32.5 22 1BM-06-16 G3/8"X19 M16X1.5 13.5 12 33.5 22 1BM-06-18 G3/8"X19 M18X1.5 13.5 12 34.5 24 1BM-06-20 G3/8"X19 M20X1.5 13.5 14 38.5 27 1BM-06-22 G3/8"X19 M22X1.5 13.5 14 38.5 27 1BM-08-14 G1/2"X14 M14X1.5 16 11 38 27 1BM-08-16 G1/2"X14 M16X1.5 16 12 39 27 1BM-08-18 G1/2"X14 M18X1.5 16 12 39 27 1BM-08-20 G1/2"X14 M20X1.5 16 14 41 27 1BM-08-22 G1/2"X14 M22X1.5 16 14 41 27 1BM-08-24 G1/2"X14 M24X1.5 16 14 41 30 1BM-08-26 G1/2"X14 M26X1.5 16 16 44 32 1BM-08-27D G1/2"X14 M27X1.5 16 16 44 32 1BM-08-30 G1/2"X14 M30X2 16 18 45 36 1BM-10-22 G5/8"X14 M22X1.5 17.5 14 42.5 30 1BM-10-26 G5/8"X14 M26X1.5 17.5 16 45.5 32 1BM-12-18 G3/4"X14 M18X1.5 18.5 12 42.5 32 1BM-12-20 G3/4"X14 M20X1.5 18.5 14 44.5 32 1BM-12-22 G3/4"X14 M22X1.5 18.5 14 44.5 32 1BM-12-24 G3/4"X14 M24X1.5 18.5 14 44.5 32 1BM-12-26 G3/4"X14 M26X1.5 18.5 16 46.5 32 1BM-12-27 G3/4"X14 M27X2 18.5 16 46.5 32 1BM-12-27D G3/4"X14 M27X1.5 18.5 16 46.5 32 1BM-12-30 G3/4"X14 M30X2 18.5 18 47.5 36 1BM-12-30D G3/4"X14 M30X1.5 18.5 18 47.5 36 1BM-16-14 G1"X11 M14X1.5 20.5 11 45.5 41 1BM-16-22 G1"X11 M22X1.5 20.5 14 48.5 41
BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL
PEHEL Hydraulic Model: P1BM
