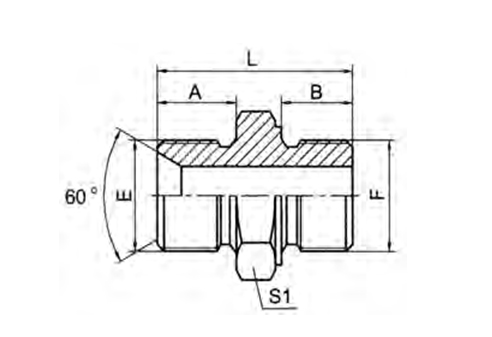

THREAD SEAL DIMENSIONS PART NO. E F F A B L S1 1BL-02-10 G1/8"X28 M10X1 ZHD-10 10 8 25 17 1BL-04-10 G1/4"X19 M10X1 ZHD-10 12 8 27 19 1BL-04-14 G1/4"X19 M14X1.5 ZHD-14 12 12 31 19 1BL-06-14 G3/8"X19 M14X1.5 ZHD-14 13.5 12 35 22 1BL-06-16 G3/8"X19 M16X1.5 ZHD-16 13.5 12 34 22 1BL-06-18 G3/8"X19 M18X1.5 ZHD-18 13.5 12 33.5 24 1BL-08-16 G1/2"X14 M16X1.5 ZHD-16 16 12 38 27 1BL-08-18 G1/2"X14 M18X1.5 ZHD-18 16 12 38 27 1BL-08-22 G1/2"X14 M22X1.5 ZHD-22 16 14 41.5 30 1BL-10-33 G5/8"X14 M33X2 ZHD-33 17.5 18 48.5 41 1BL-12-16 G3/4"X14 M16X1.5 ZHD-16 18.5 12 41.5 32 1BL-12-22 G3/4"X14 M22X1.5 ZHD-22 18.5 14 43.5 32 1BL-12-27 G3/4"X14 M27X2 ZHD-27 18.5 16 45.5 36 1BL-12-33 G3/4"X14 M33X2 ZHD-33 18.5 18 49.5 41 1BL-16-27 G1"X11 M27X2 ZHD-27 20.5 16 51.5 41 1BL-16-33 G1"X11 M33X2 ZHD-33 20.5 18 53.5 41 1BL-20-42 G1.1/4"X11 M42X2 ZHD-42 20.5 20 56.5 50
BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL
PEHEL Hydraulic Model: P1BL
QTY:
