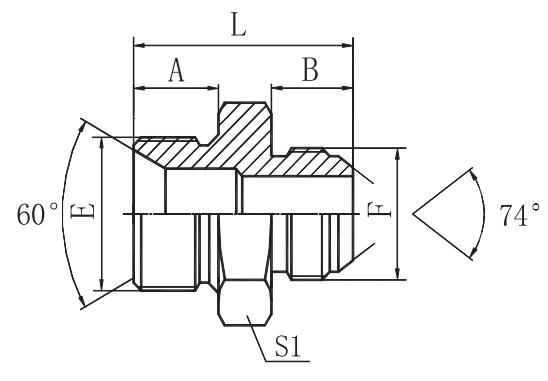

THREAD DIMENSIONS PART NO. E F A B L S1 1BJ-02-04 G1/8"X28 7/16"X20 10 14 30 14 1BJ-02-05 G1/8"X28 1/2"X20 10 14 30 14 1BJ-04 G1/4"X19 7/16"X20 12 14 32 19 1BJ-04-05 G1/4"X19 1/2"X20 12 14 32 19 1BJ-06 G3/8"X19 9/16"X18 13.5 14 35.5 22 1BJ-06-05 G3/8"X19 1/2"X20 13.5 14 35.5 22 1BJ-06-08 G3/8"X19 3/4"X16 13.5 16.7 38.5 22 1BJ-08 G1/2"X14 3/4"X16 16 16.7 43 27 1BJ-08-06 G1/2"X14 9/16"X18 16 14 40 27 1BJ-08-10 G1/2"X14 7/8"X14 16 19.3 45.5 27 1BJ-10 G5/8"X14 7/8"X14 17.5 19.3 47 30 1BJ-10-08 G5/8"X14 3/4"X16 17.5 16.7 44 30 1BJ-10-12 G5/8"X14 1.1/16"X12 17.5 22 49.5 30 1BJ-12 G3/4"X14 1.1/16"X12 18.5 22 51.5 32 1BJ-12-10 G3/4"X14 7/8"X14 18.5 19.3 49 32 1BJ-12-14 G3/4"X14 1.3/16"X12 18.5 22.6 52 32 1BJ-16 G1"X11 1.5/16"X12 20.5 23.1 57 41 1BJ-16-14 G1"X11 1.3/16"X12 20.5 22.6 56 41 1BJ-16-20 G1"X11 1.5/8"X12 20.5 24.3 58 46 1BJ-20 G1.1/4"X11 1.5/8"X12 20.5 24.3 61.7 50 1BJ-20-16 G1.1/4"X11 1.5/16"X12 20.5 23.1 60.5 50 1BJ-20-24 G1.1/4"X11 1.7/8"X12 20.5 27.5 63 50 1BJ-24-20 G1.1/2"X11 1.5/8"X12 23 24.3 62.5 55 1BJ-24 G1.1/2"X11 1.7/8"X12 23 27.5 67.5 55 1BJ-24-32 G1.1/2"X11 2.1/2"X12 23 34 74 65 1BJ-32 G2"X11 2.1/2"X12 25.5 34 77.5 70 1BJ-32-24 G2"X11 1.7/8"X12 25.5 27.5 70 70

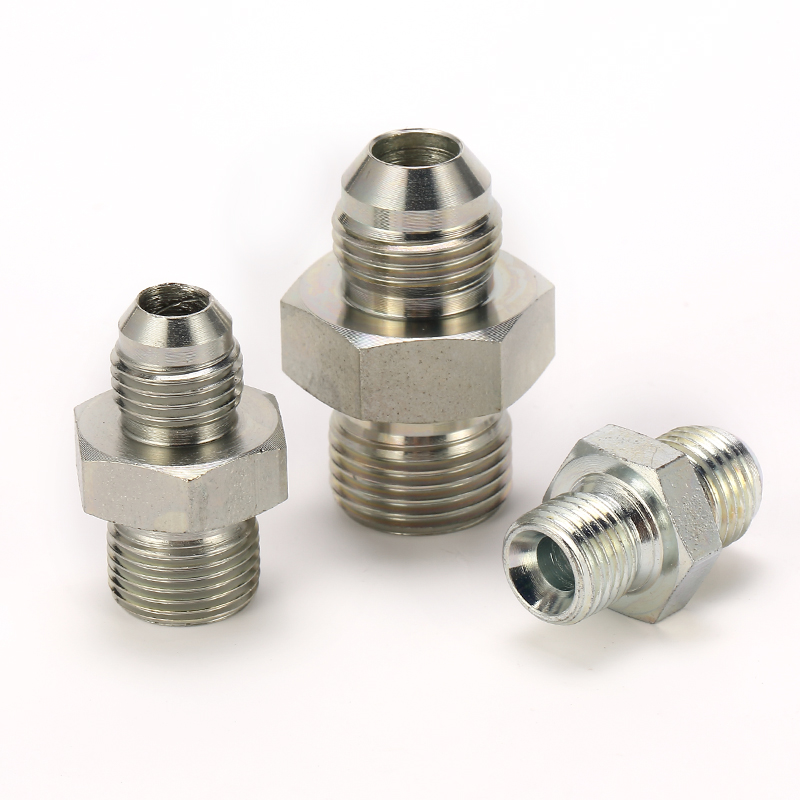

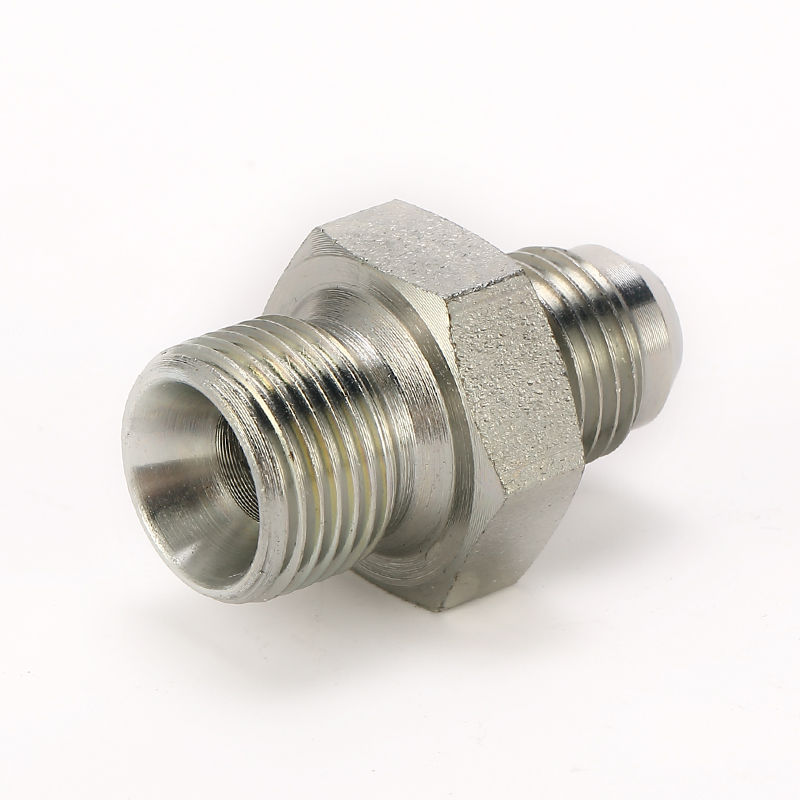

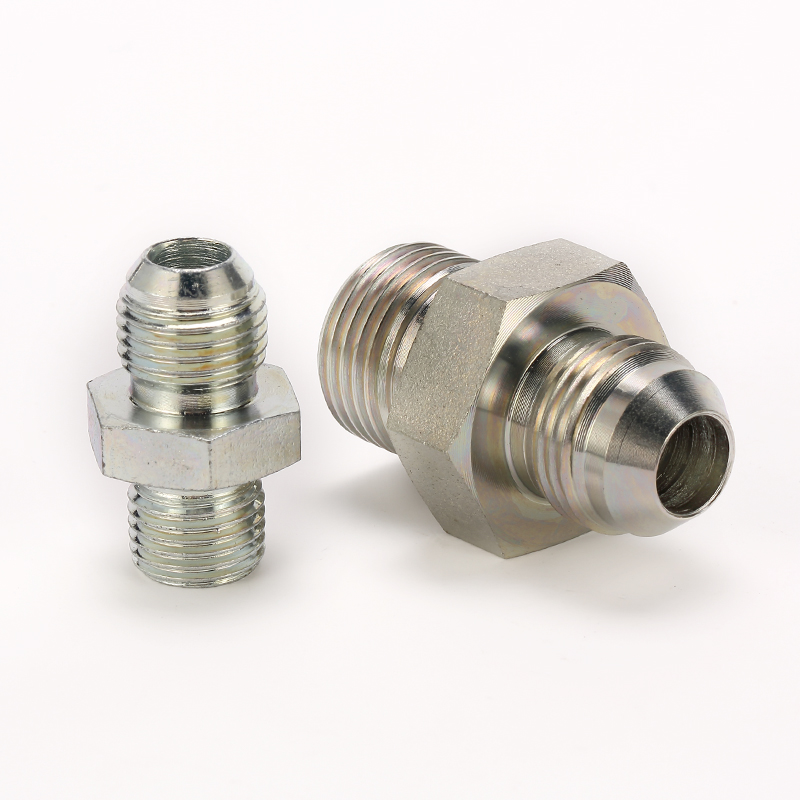

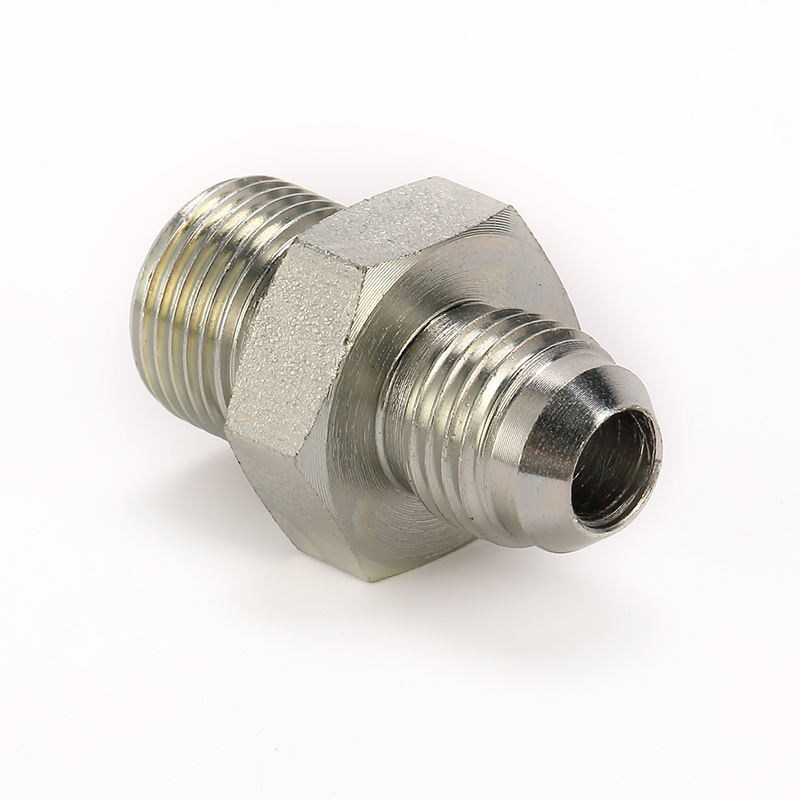

BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL / JIC MALE 74°CONE
PEHEL Hydraulic Model: P1BJ
