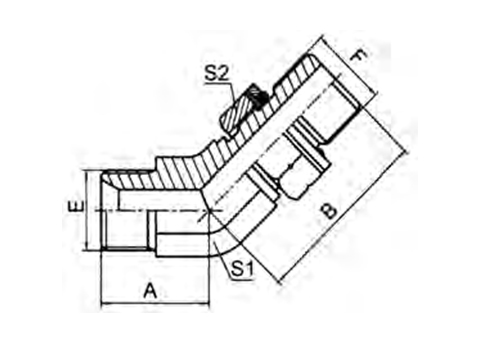

THREAD O-RING DIMENSIONS PART NO. E F F A B S1 S2 1BH4-02-10OG G1/8"X28 M10X1 O08.1X1.6 17 23.5 11 14 1BH4-02-12OG G1/8"X28 M12X1.5 O09.3X2.4 17 27.5 11 17 1BH4-04-12OG G1/4"X19 M12X1.5 O09.3X2.4 20.3 28.3 14 17 1BH4-04-14OG G1/4"X19 M14X1.5 O11.3X2.4 20.3 28 14 19 1BH4-04-16OG G1/4"X19 M16X1.5 O13.3X2.4 20.5 29 16 22 1BH4-06-14OG G3/8"X19 M14X1.5 O11.3X2.4 22 28.5 16 19 1BH4-06-16OG G3/8"X19 M16X1.5 O13.3X2.4 22 29 16 22 1BH4-06-18OG G3/8"X19 M18X1.5 O15.3X2.4 23 31 19 24 1BH4-08-18OG G1/2"X14 M18X1.5 O15.3X2.4 27 32 22 24 1BH4-08-22OG G1/2"X14 M22X1.5 O19.3X2.4 27 33 22 27 1BH4-10-22OG G5/8"X14 M22X1.5 O19.3X2.4 28 33 22 27 1BH4-12-22OG G3/4"X14 M22X1.5 O19.3X2.4 31 34.5 27 27 1BH4-12-27OG G3/4"X14 M27X2 O23.5X3.0 31 39.5 27 32 1BH4-16-27OG G1"X11 M27X2 O23.5X3.0 35 40.5 33 32 1BH4-16-33OG G1"X11 M33X2 O29.5X3.0 35 41 33 41 1BH4-20-42OG G1.1/4"X11 M42X2 O38.5X3.0 38.5 45 41 50 1BH4-24-48OG G1.1/2"X11 M48X2 O44.5X3.0 44 49.5 48 55
45° ELBOW BSP MALE 60° SEAT
PEHEL Hydraulic Model: P1BH4-OG
QTY:
