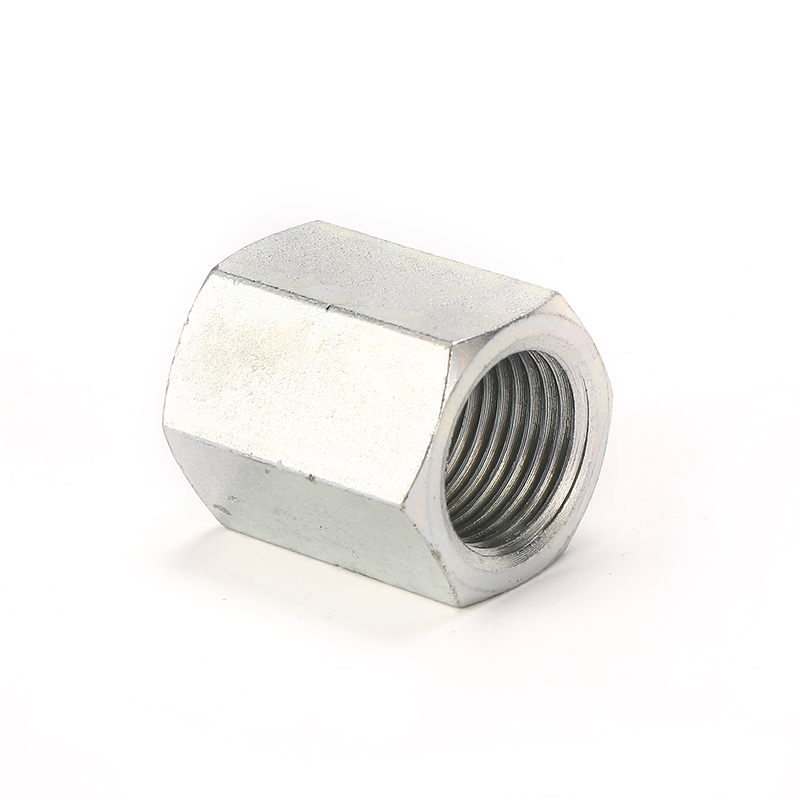

BSP FEMALE

BSP FEMALE

PEHEL Hydraulic Model: GB

QTY:

  • BSP FEMALE Specification
  • You May Also Like
  • PARTNO. THREAD DIMENSIONS
    E F G A B C S1
    GB-02 G1/8"X28 G1/8"X28 G1/8"X28 20 20 20 16
    GB-04 G1/4"X19 G1/4"X19 G1/4"X19 22.5 22.5 22.5 19
    GB-06 G3/8"X19 G3/8"X19 G3/8"X19 26 26 26 24
    GB-08 G1/2"X14 G1/2"X14 G1/2"X14 31 31 31 27
    GB-12 G3/4"X14 G3/4"X14 G3/4"X14 34 34 34 33
    GB-16 G1"X11 G1"X11 G1"X11 42 42 42 41
    GB-20 G1.1/4"X11 G1.1/4"X11 G1.1/4"X11 48 48 48 50
    GB-24 G1.1/2"X11 G1.1/2"X11 G1.1/2"X11 53 53 53 60
    GB-32 G2"X11 G2"X11 G2"X11 62 62 62 70
