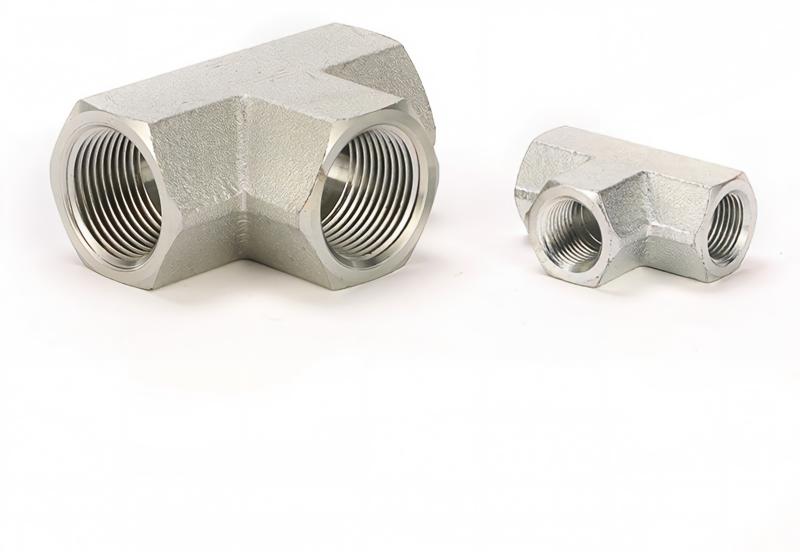

BSP FEMALE/BSP FEMALE 60 CONE

PEHEL Hydraulic Model: 7B-S

QTY:

  • You May Also Like

  • PART NO. THREAD DIMENSIONS
    E F A B L S1 S2
    7B-02S G1/8"X28 G1/8"X28 20 3.5 29 14 14
    7B-04S G1/4"X19 G1/4"X19 21 5.5 32 19 19
    7B-04-06S G1/4"X19 G3/8"X19 21 6.3 33.5 19 22
    7B-06S G3/8"X19 G3/8"X19 24 6.3 36.5 22 22
    7B-06-04S G3/8"X19 G1/4"X19 24 5.5 35 22 19
    7B-06-08S G3/8"X19 G1/2"X14 24 7.5 38 22 27
    7B-08-06S G1/2"X14 G3/8"X19 29 6.3 41.5 27 22
    7B-08S G1/2"X14 G1/2"X14   7.5 42 27 27
    7B-08-10S G1/2"X14 G5/8"X14 29 9.5 43.5 27 30
    7B-08-12S G1/2"X14 G3/4"X14 29 10.9 44 27 32
    7B-10-08S G5/8"X14 G1/2"X14 30 7.5 44 30 27
    7B-12-08S G3/4"X14 G1/2"X14 30.5 7.5 44.5 36 27
    7B-12S G3/4"X14 G3/4"X14 30.5 10.9 45.5 32 32
    7B-12-16S G3/4"X14 G1"X11 30.5 11.7 47 36 41
    7B-16-12S G1"X11 G3/4"X14 35 10.9 50 41 32
    7B-16S G1"X11 G1"X11   11.7 51.5 41 41
    7B-20S G1.1/4"X11 G1.1/4"X11 37 11 55.5 50 50
    7B-24S G1.1/2"X11 G1.1/2"X11 38.5 13 57.5 55 55
    7B-32S G2"X11 G2"X11   16 62 70 70
