PART NO.
THREAD DIMENSIONS E F A B S1 L P1S-04 G1/4"X19 G1/4"X19 16 16 17 38 P1S-06 G3/8"X19 G3/8"X19 18 18 19 42 P1S-08 G1/2"X14 G1/2"X14 20 20 22 48 P1S-12 G3/4"X14 G3/4"X14 22 22 30 54 P1S-16 G1"X11 G1"X11 24 24 36 59

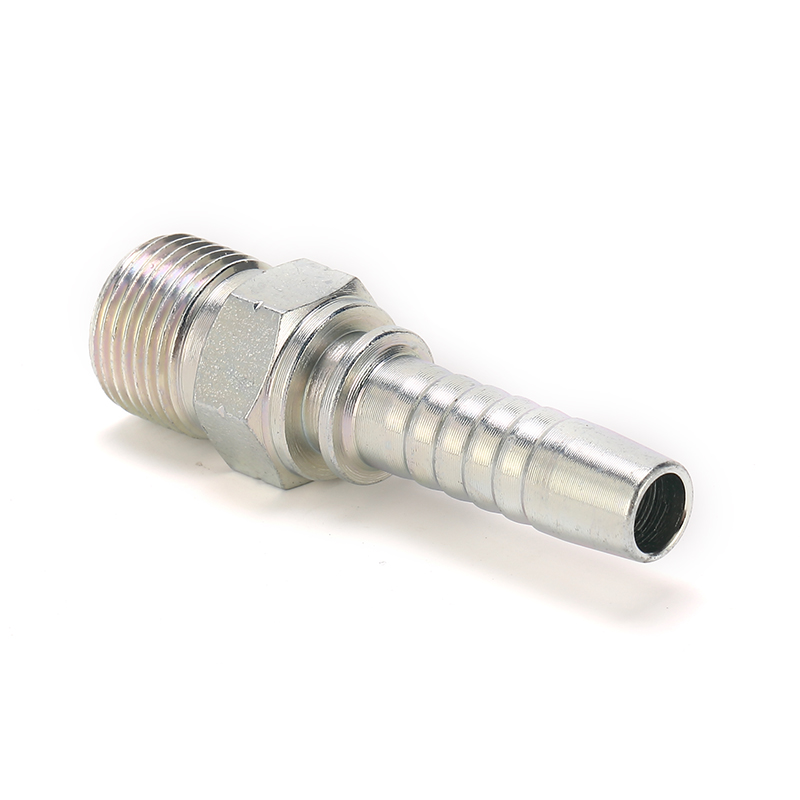

60º JIS GAS MALE
PEHEL Hydraulic Model: P1S
QTY:
Fetures:
JIS is equivalent to BSP thread (both tapered and parallel). But JIS has a 30° flared seat in the female variant and cone in the male variant (similar to the seat/cone system in JIC fittings)
